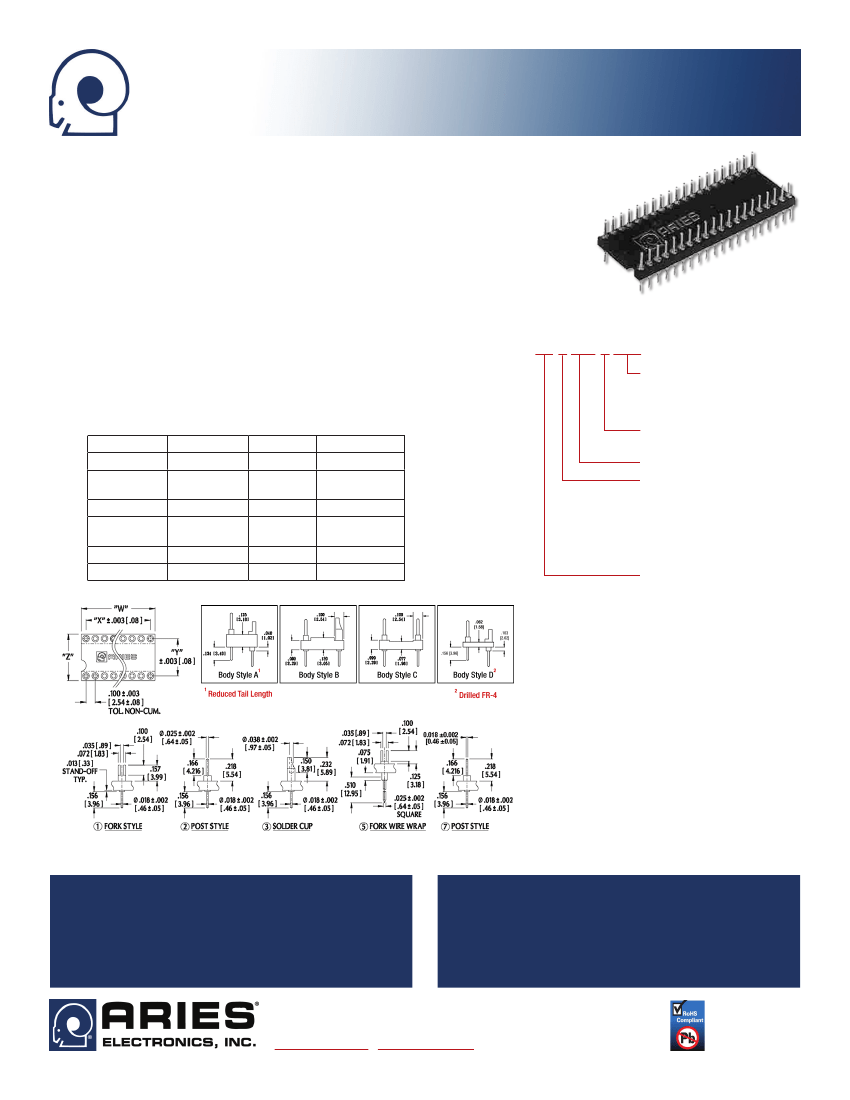

Series 625 DIP Header
w/Screw Machine Contacts
FEATURES
• Available in either Screw Machine or Coined Contacts in a Variety of Styles
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Black UL 94V-0 Glass-filled 4/6 Nylon
•
FORK & POST CONTACTS: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
SOLDER CUP CONTACTS: Phosphor Bronze per 544 UNS C54400 ASTM B139-01
•
CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 200µ [5.08µ] min. 93/7 Sn/Pb
per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per
SAE AMS-QQ-N-290B
•
CONTACT CURRENT RATING: 2 amps (3 amps for Pin Style 5)
ORDERING INFORMATION
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn & Sn/Pb plating;
XX-X 625-X XXX
-67°F to 257°F [-55°C to 125°C] for Au plating
•
ACCEPTS LEADS: up to 0.035 [0.89] dia.
Plating
•
SUGGESTED PCB HOLE SIZE:
0.028 ±0.002 [0.71 ±0.05] dia.
Centers “Y”
0.200 [5.08]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
0.800 [20.32]
0.900 [22.86]
Dim. “Z”
0.300 [7.62]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
0.900 [22.86]
1.000 [25.40]
Body Style
1
A
CB
C
CB
D
B
2
MOUNTING CONSIDERATIONS
Available Sizes
2 thru 10
2 thru 20
22 thru 40
2 thru 22
2 thru 40
42 thru 48
14 and 16
2 thru 64
0 = Sn
0TL = Sn/Pb
1 = Au
Pin Style
(
See Drawing)
Series
Row-to-Row Spacing, Dim. “Y”
2 = 0.200 [5.08]
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
8 = 0.800 [20.32]
9 = 0.900 [22.86]
No. of Pins
(See Table)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12035
Rev. 6.2
1 of 1
