Printed-circuit board connector - BCVP-381RF- 4 GN - 5449694
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.81 mm,
Connection method: Screw connection, Color: pastel green, Contact surface: Tin
The figure shows a 5-pos. version of
the product in gray
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
Germany
Technical data
Dimensions
Height
Pitch
Dimension a
12.5 mm
3.81 mm
11.43 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Nominal cross section
BCVP-RF
I
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
320 V
8A
1.5 mm²
11/04/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/5449694
Printed-circuit board connector - BCVP-381RF- 4 GN - 5449694
Technical data
General
Maximum load current
Insulating material
Inflammability class according to UL 94
Number of positions
8 A (with 1.5 mm² conductor cross section)
PA
V0
4
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
0.5 mm²
24
16
0.2 mm²
0.5 mm²
0.2 mm²
0.75 mm²
0.25 mm²
0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440401
11/04/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/5449694
Printed-circuit board connector - BCVP-381RF- 4 GN - 5449694
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-14
8A
300 V
D
30-14
8A
300 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-1.5
8A
160 V
cULus Recognized

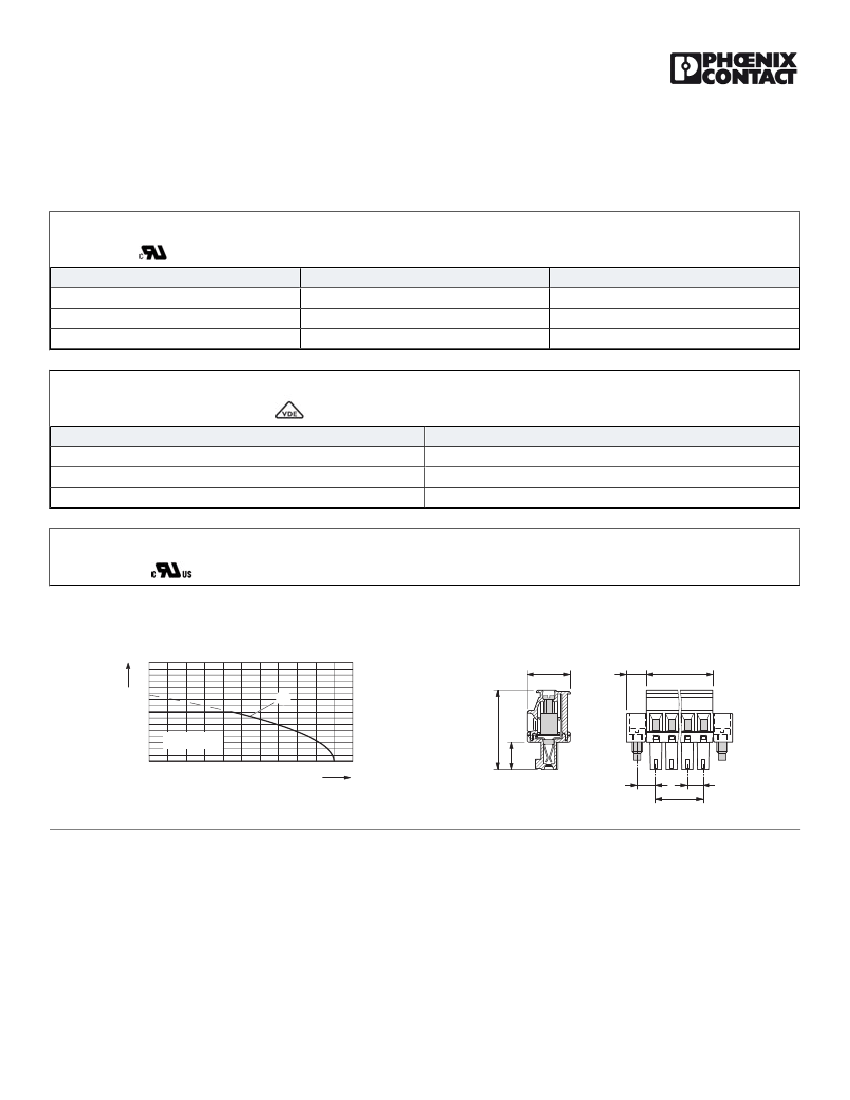

Drawings
Diagram
16
14
12
10
8
6
4
2
0
0
Current strength [A]
Dimensioned drawing
10,4
4,8
a+4,6
= 5-pos.
20
40
60
80
100
19,1
6,6
Ambient temperature [°C]
4,5
a
3,81
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
11/04/2014 Page 4 / 4
