20-M40-11

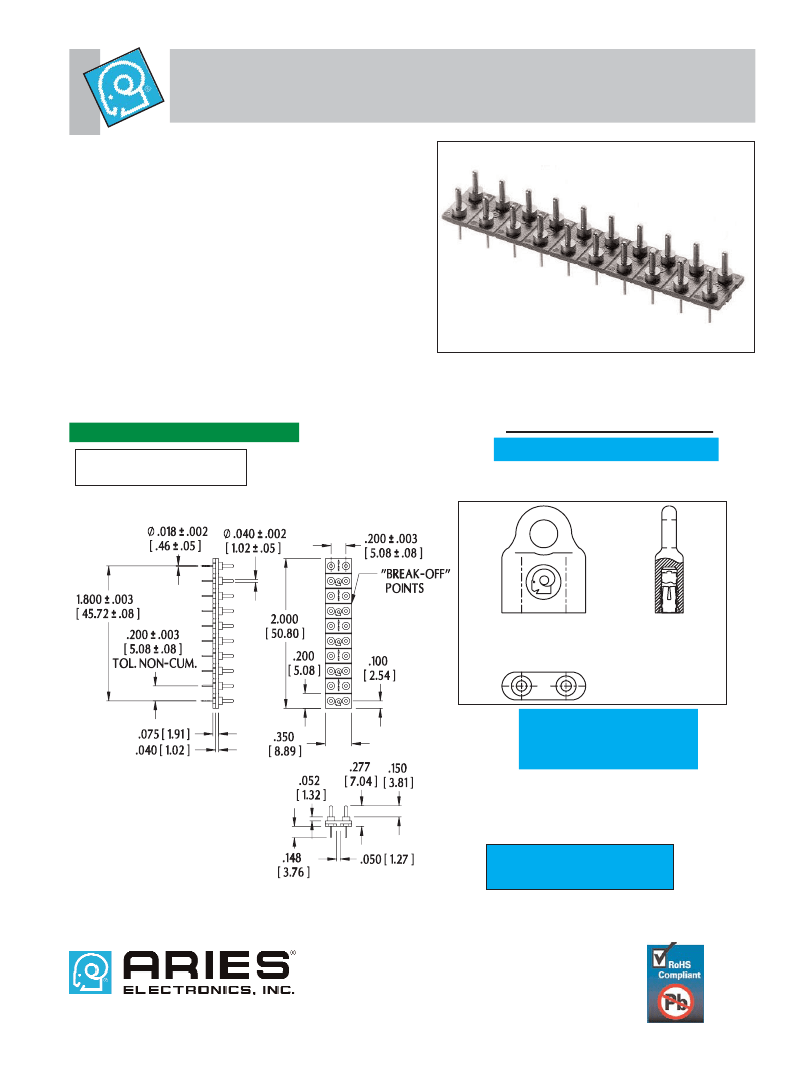

Thru-Hole .040 [1.02] Male DIP Strips

FEATURES:

• These DIP strips are used in conjunction with Aries’

Shorting Jack SJ200, available separately, for your pro-

gramming needs.

• ”Break” feature allows strips to be cut to any number of

positions desired.

SPECIFICATIONS:

• Standard DIP strip body material is black UL 94V-0

Glass-filled 4/6 Nylon.

• Pin is Brass Alloy 360 1/2 hard per UNS C36000

ASTM-B16-85.

• Pin plating is 10

μ

[.25μm] min. Gold per MIL-G-45204

over 50μ [1.27μm] min. Nickel per SAE-AMS-QQ-N-290.

• Current rating=3 Amps.

• Operating temperature= -67°F to 257°F [-55°C to 125°C]

MOUNTING CONSIDERATIONS:

• Suggested PCB hole size=.028 ± .002 [.71 ± .05] dia.

A

LL DIMENSIONS

:

INCHES

[

MILLIMETERS

]

Note: Aries specializes in custom design and production. In addition to the

standard products shown on this page, special materials, platings, sizes, and

configurations can be furnished, depending on quantities. Aries reserves the

right to change product specifications without notice.

ORDERING INFORMATION

Specify Part No.

20-M40-11

All tolerances ± .005 [.13]

unless otherwise specified

Mates with Aries’ Shorting

Jacks, Part No.

SJ200.

Consult Data Sheet No.

16009 for details.

Consult Data Sheet No.

16008 for female DIP strips.

16007

REV. H
