34958-7340: DescriptionAutomotive Connectors MINI50 UNSLVHYBD HDR 3RW 34CKT BLK POL A; CategoryThe connector The connector; File Size39KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

34958-7340 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34958-7340	-	-	View	Buy Now

34958-7340 Overview

Automotive Connectors MINI50 UNSLVHYBD HDR 3RW 34CKT BLK POL A

34958-7340 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99

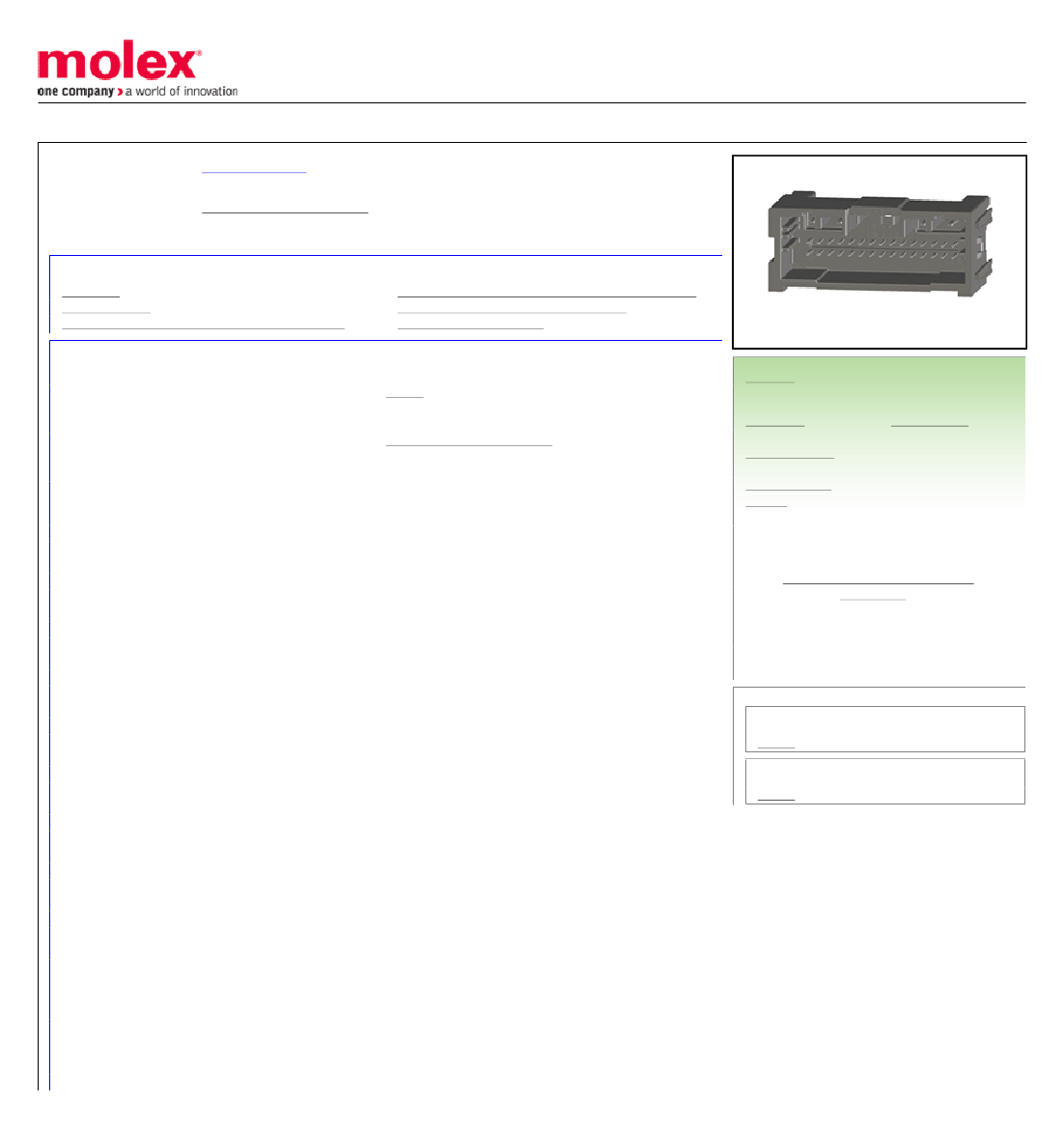

Preview

Download Datasheet

View All

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0349587340

Active

Mini50 Connection Systems

Mini50 Unsealed Vertical Hybrid Header, 3 Rows, 34 Circuit, Polarization Option A,

Black, Tube

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34959-001-001 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Packaging Specification PK-31301-688-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

PCB Headers

34958

Power, Signal, Wire-to-Board

0.50mm blades = 4.0A; 1.20mm blades = 16.0A

Mini50 Connection Systems

987650-5442

Mini50

887191921433

Black

Yes

Brass

Tin over Nickel

SPS

Vertical

3.07mm

Yes

None

Tube

2.00mm

Yes

-40°C to +105°C

Through Hole

16.0A, 4.0A

500V DC

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Search Parts in this Series

34958 Series

Mates With

34959 Mini50 Unsealed 3 Row Receptacle

PK-31301-688-001

Recommended Resources
