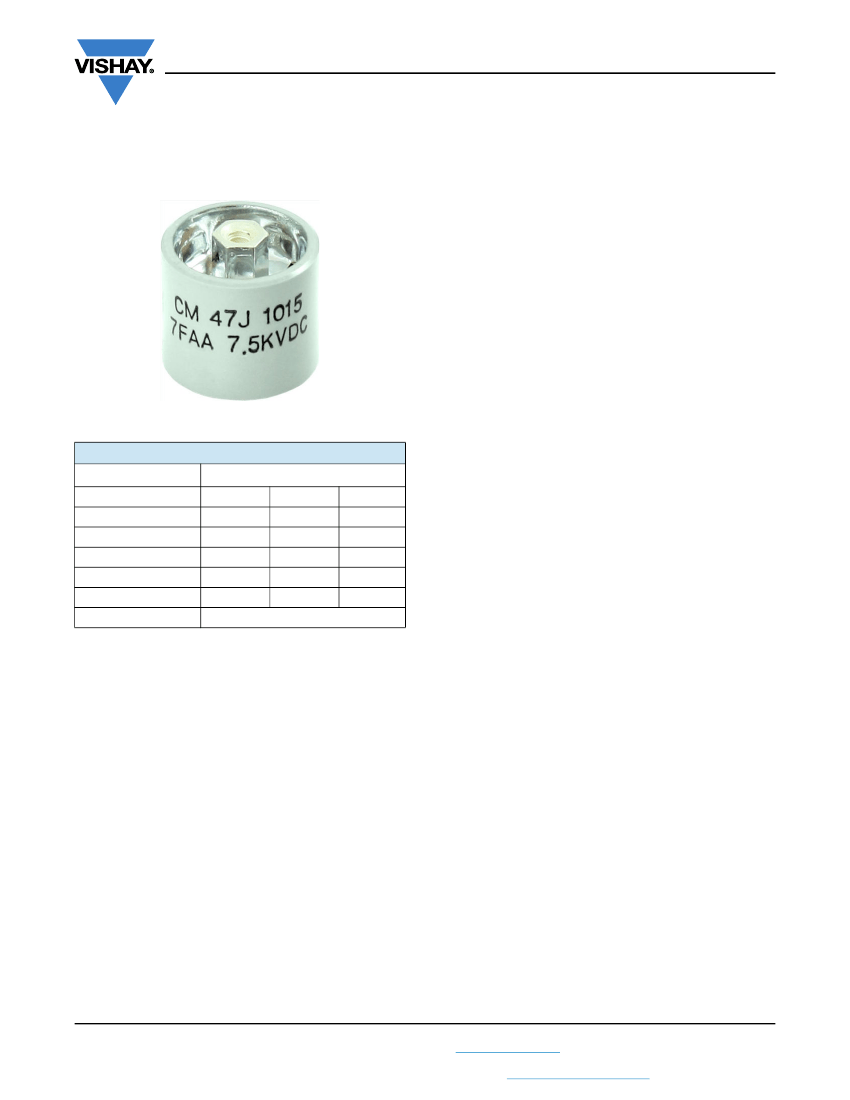

5FAE, 7FAA, 7FAU...
www.vishay.com
Vishay Cera-Mite
RF Power Barrel Capacitors,
Class 1 and Class 2 Ceramic
FEATURES
• Small size
• Geometry minimizes inductance, optimizes voltage
withstand and maximizes heat radiation
APPLICATIONS
• Industrial and medical RF power supply
• Small broadcasting equipment
• Antenna couplers
• Induction heating equipment
CAPACITANCE RANGE
10 pF to 1.0 nF
CAPACITANCE TOLERANCE
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
1
NP0 (C0G)
7FAA
7500
10
50
VALUE
1
N750 (U2J)
7FAU
7500
75
100
Screw terminal
2
X5U
5FAE
5000
500
1000
± 10 %; ± 20 %
CERAMIC DIELECTRICS
• Class 1: NP0 (C0G), N750 (U2J)
• Class 2: X5U
RATED VOLTAGE
• 5.0 kV
DC
• 7.5 kV
DC
DIELECTRIC STRENGTH TEST
150 % of rated DC voltage
MATERIAL
Capacitor elements made from class 1 or class 2 ceramic
dielectric with noble metal electrodes.
Connection terminals:
thread terminal, brass, silver plated.
Allowable torque: 1.47 Nm (13 lbf in)
DISSIPATION FACTOR
• Class 1:
• Class 2:
max. 0.2 % (1 MHz)
max. 2.0 % (1 kHz)
INSULATION RESISTANCE
• Class 1:
• Class 2:
100 000 M (at 25 °C)
10 000 M (at 25 °C)
FINISH
Capacitor body completely protective lacquered.
OPERATING TEMPERATURE RANGE
• Class 1:
• Class 2:
-55 °C to +100 °C
-55 °C to +85 °C
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
Revision: 25-Feb-16
Document Number: 23141
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
5FAE, 7FAA, 7FAU...
www.vishay.com
Vishay Cera-Mite
MAX. POWER RATING
(1)
(kvar)
1 MHz
10 MHz
30 MHz
MAXIMUM CURRENT RATING
(1)
(A
RMS
)
1 MHz
10 MHz
30 MHz
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
TYPE 7FAA, 7FAU
7FAA100K
7FAA200K
7FAA250K
7FAA300K
7FAA500K
7FAU750K
N750 (U2J)
7FAU101K
TYPE 5FAE
5FAE501M
5FAE801M
5FAE102M
X5U
500
800
1000
5.0
0.4
0.6
0.4
0.4
0.3
0.2
0.2
0.2
0.15
0.9
1.7
1.7
1.9
3.5
3.7
1.9
3.5
3.7
100
10
10
4.8
2.5
8.0
0.5
NP0 (C0G)
10
20
25
30
50
75
7.5
1.7
3.2
4.4
5.3
8.8
10
10
10
10
10
10
10
10
10
10
10
7.6
6.3
0.3
0.8
0.9
1.0
1.7
2.2
2.5
3.5
4.0
2.4
5.7
7.0
4.5
7.0
7.0
7.5
8.0
9.5
CERAMIC
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
DC
)
Notes
• # 8
th
digit of the part number: capacitance tolerance code ± 10 % = K, ± 20 % = M
• RoHS-compliant parts on request
(1)
At rated voltage. Data presented is based on a minimum body temperature rise of 30 °C at +25 °C
DIMENSIONS
in millimeters (inches)
D
max.
L
2 max.
L
1 max.
Thread
size
1/4" HEX
TYPE
Diameter D
max.
Thread size
Length L
1 max. (1)
Length L
2 max. (1)
(1)
5FAE, 7FAA, 7FAU
20.7 (0.815)
6-32 UNC-2B thread; 4.0 (0.157) depth
22.6 (0.890)
17.0 (0.670)
Note
Dimension L will vary depending upon capacitance value
RELATED DOCUMENTS
General Information
www.vishay.com/doc?22071
