H-37-3: DescriptionPotentiometer Tools & Hardware LOCKWASHER; CategoryPassive components; File Size96KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

H-37-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H-37-3	-	-	View	Buy Now

H-37-3 Overview

Potentiometer Tools & Hardware LOCKWASHER

H-37-3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bourns
Product Category	Potentiometer Tools & Hardware
RoHS	Details
Product	Lock Washer
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

PL

IA

NT

Features

■

Meets UL 94V-0

■

Pocket clip

■

For use on most trimmer shafts/rotors

■

Recessed end for use with extended shafts

■

H-90 & H-91 available in blue;

*R

oH

S

CO

M

H-92-1 available in off-white

■

RoHS compliant*

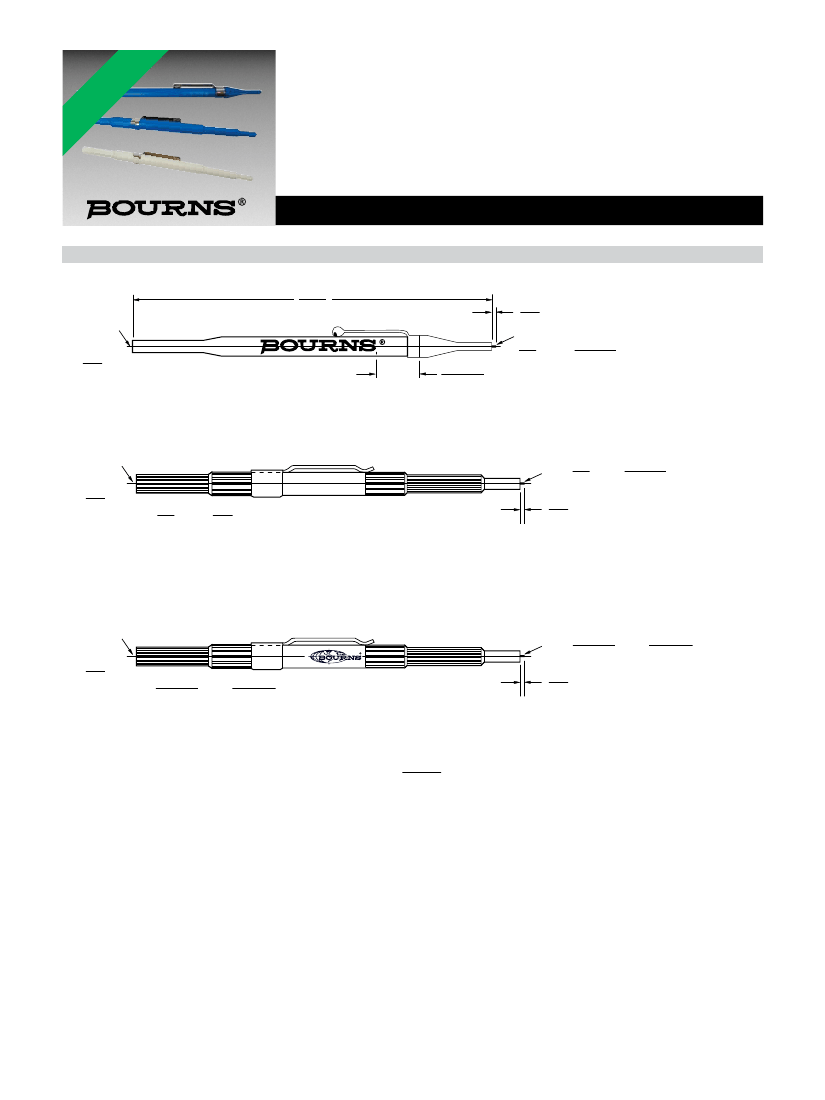

H-90/H-91/H-92-1 - Adjustment Tools

Product Dimensions

H-90

127.00

(5.00)

STAINLESS STEEL

BLADE

RECESSED

.254

(.010)

1.27

(.050)

BLADE - BOTH ENDS

.406 ± .025

2.03

WIDE X

THICK

(.016 ± .001)

(.080)

15.2 ± 2.54

(0.60 ± 0.10)

H-91*

STAINLESS STEEL

BLADE

RECESSED

.254

(.010)

BLADE

1.47

.457 ± .025

WIDE X

THICK

(.058)

(.018 ± .001)

2.29

.457

WIDE X

THICK

(.090)

(.018)

1.40

(.055)

*H-91 RECOMMENDED FOR USE WITH TRIMMER MODELS 3224 AND 3214.

H-92-1*

STAINLESS STEEL

BLADE

RECESSED

.381

(.015)

BLADE

1.02 ± 0.08

0.23 ± 0.05

WIDE X

THICK

(.040 ± .003)

(.009 ± .001)

1.02 ± 0.08

0.23 ± 0.05

WIDE X

THICK

(.040 ± .003)

(.009 ± .001)

1.40

(.055)

*H-92-1 RECOMMENDED FOR USE WITH TRIMMER MODELS 3342, 3223 AND 3213.

DIMENSIONS:

MM

(INCHES)

REV. 04/14

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

H-37-3 Related Products

	H-37-3	H-37-5	H-37-4
Description	Potentiometer Tools & Hardware LOCKWASHER	Potentiometer Tools & Hardware 3310 SERIES WASHER	Potentiometer Tools & Hardware Lockwasher 1/4" dia Model 3310/3315
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bourns	Bourns	Bourns
Product Category	Potentiometer Tools & Hardware	Potentiometer Tools & Hardware	Potentiometer Tools & Hardware
RoHS	Details	Details	Details
Product	Lock Washer	Lock Washer	Lock Washer
Factory Pack Quantity	1000	1000	1000

Recommended Resources
