LFSPXO064327Cutt datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFSPXO064327Cutt

Preview

LFSPXO064327Cutt: DescriptionStandard Clock Oscillators 48MHz 1.8V 25ppm -10C +70C; CategoryPassive components; File Size221KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO064327Cutt Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO064327Cutt	-	-	View	Buy Now

LFSPXO064327Cutt Overview

Standard Clock Oscillators 48MHz 1.8V 25ppm -10C +70C

LFSPXO064327Cutt Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Standard Clock Oscillators
RoHS	Details
Frequency	48 MHz
Frequency Stability	25 PPM
Load Capacitance	15 pF
Operating Supply Voltage	1.8 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	3.2 mm x 2.5 mm
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Length	3.2 mm
Width	2.5 mm
Packaging	Cut Tape
Current Rating	15 mA
Type	Ceramic SMD Crystal Oscillator
Duty Cycle - Max	60 %
Factory Pack Quantity	500

Preview

Download Datasheet

View All

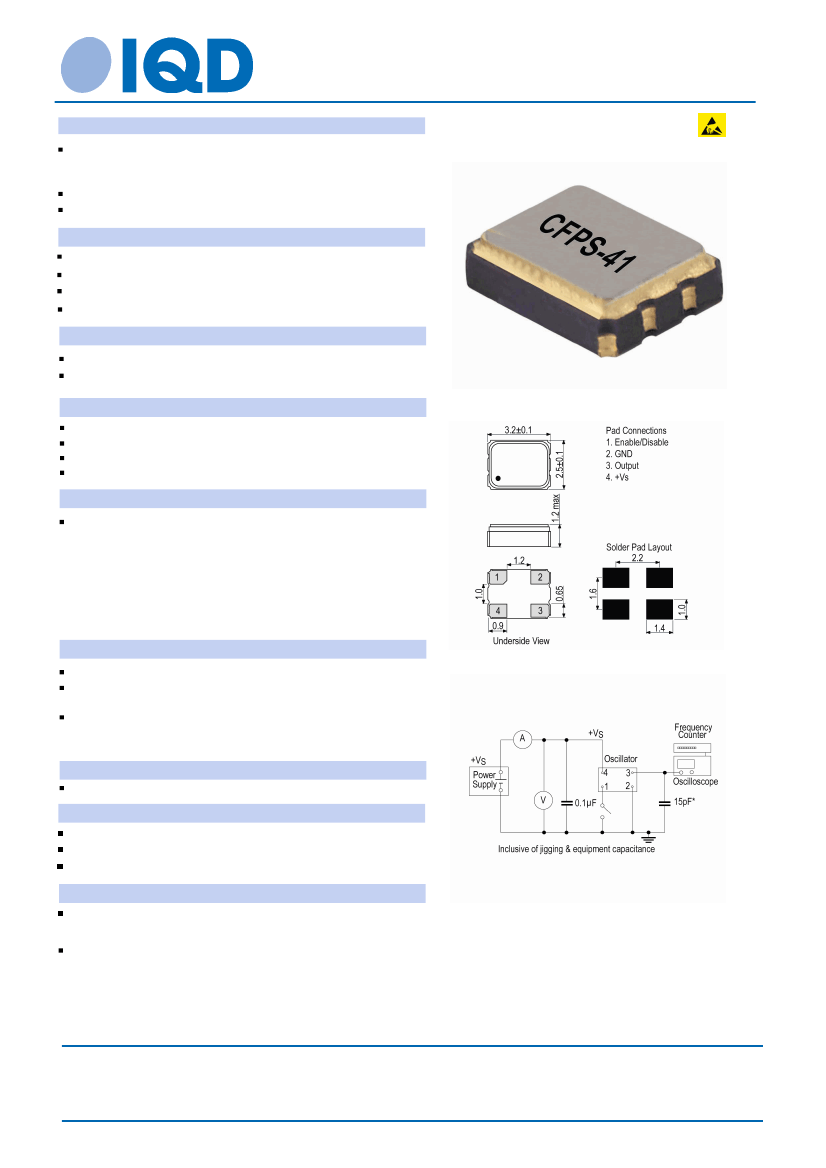

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO064327Bulk

Description

Standard 3.2 x 2.5mm crystal oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-41

Model Issue number

5

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

48.0MHz

±

25.00ppm

-10.00 to 70.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

1.8V ±5%

15.000mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

6.0ns max

40/60%

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output;

when disabled the oscillator output goes to the high

impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max

Start-Up Time: 10ms max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

Maximum Process Temperature: 260°C (10secs max)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 31 May 17 9:56 using Part Data Sheet V1.00014
