803-006-02Z15-3CX datasheet, PDF

Datasheet> All Categories > The connector> 803-006-02Z15-3CX

803-006-02Z15-3CX: DescriptionCircular Connector, 3 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle,; CategoryThe connector; File Size290KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

803-006-02Z15-3CX Overview

Circular Connector, 3 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle,

803-006-02Z15-3CX Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	HERMETIC
Shell material	STAINLESS STEEL
Housing size	5
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

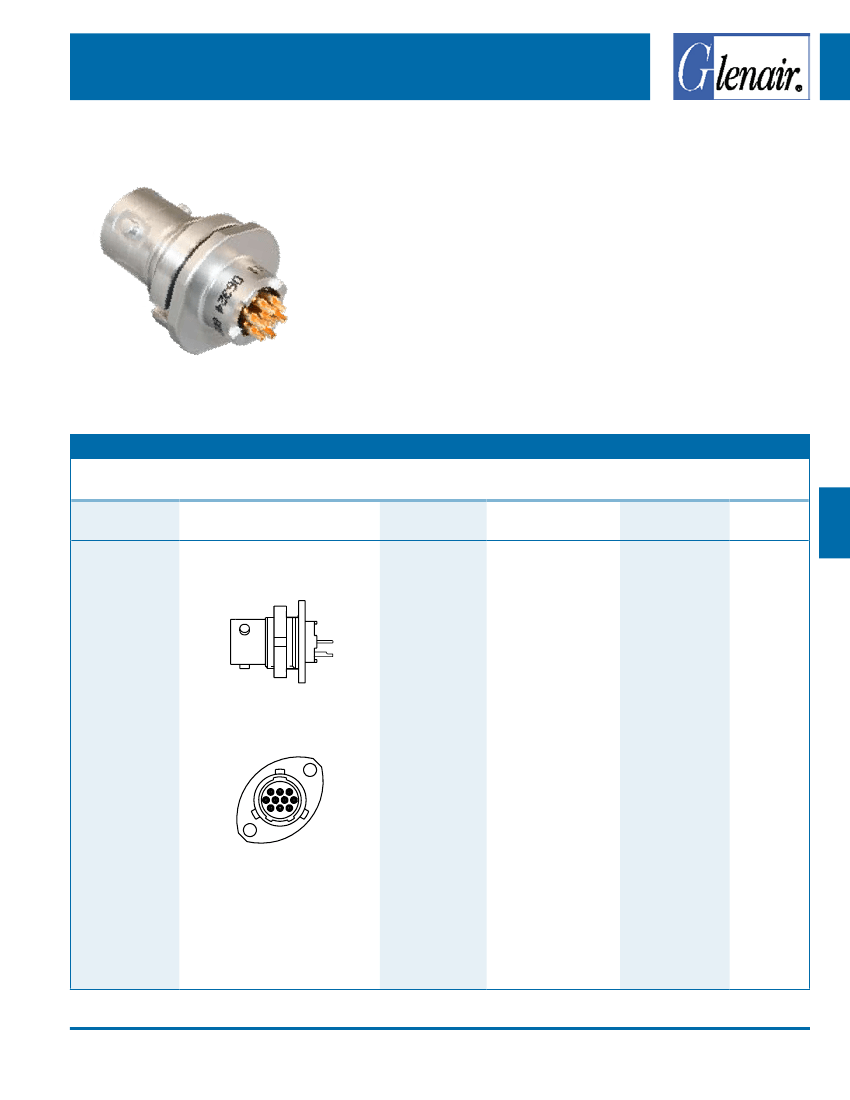

Series 803 “Mighty Mouse”

¼ Turn Bayonet Coupling

Series 803 Hermetic Receptacles

feature 304L stainless steel shells,

fused vitreous glass insulators

and gold-plated Alloy 52 iron alloy

contacts.

1 X 10

-6

cc/second

maximum

Helium leak rate when tested at 1

atmosphere vacuum.

Solder Cup Contacts

accept up to

#22 AWG stranded wire. Or, choose

Printed Circuit Board Contacts

for

attachment to rigid boards or flexible

circuits.

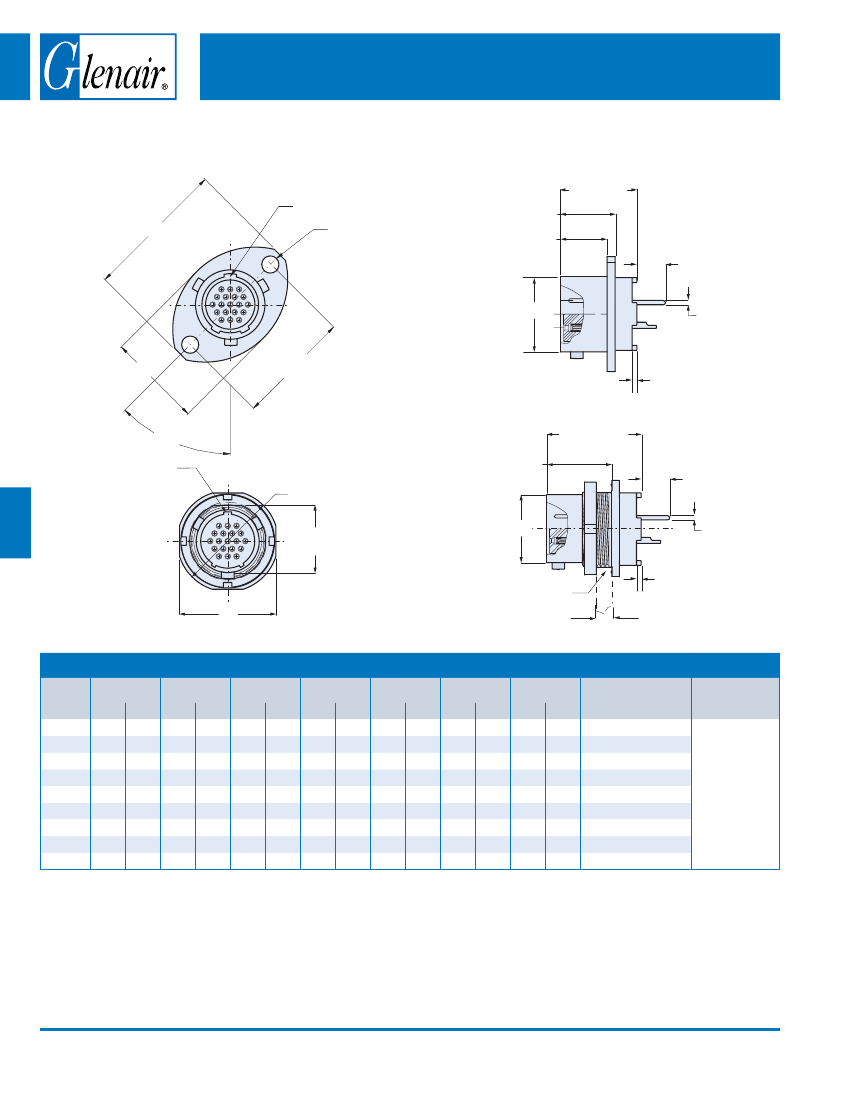

Series 803 Hermetic

Jam Nut Mount

Two Shell Styles

are available:

Jam Nut and Flange Mount.

hoW To oRDER

803-006

Series

Hermetic

Receptacles with

Printed Circuit

Board Contacts or

Solder Cup

Contacts

-07

Shell Style

Jam Nut

Sample Part Number

Shell Material /

Finish

Stainless Steel /

Passivated

9-19

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

3 #23

1 #16

4 #23

7 #23

1 #12

10 #23

13 #23

4 #16

19 #23

26 #23

2 #12

37 #23

55 #23

85 #23

Contact Type

Pin, Solder Cup

Shell Size/Insert

Shell Key

Position

Normal

Alternate

Key

Positions:

803-006

-07

Stainless Steel/

Nickel Plated

Pin, PC Tail

-02

Flange Mount

www.glenair.com

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

Rev. 20-AUG-2008

F-11

Series 803
