UCS2W680MNY9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UCS2W680MNY9

UCS2W680MNY9: DescriptionAluminum Electrolytic Capacitors - Leaded 450V 68uF 670mArms +/-20% at 120Hz; CategoryPassive components capacitor; File Size321KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UCS2W680MNY9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UCS2W680MNY9	-	-	View	Buy Now

UCS2W680MNY9 Overview

Aluminum Electrolytic Capacitors - Leaded 450V 68uF 670mArms +/-20% at 120Hz

UCS2W680MNY9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
Number of terminals	2

Preview

Download Datasheet

View All

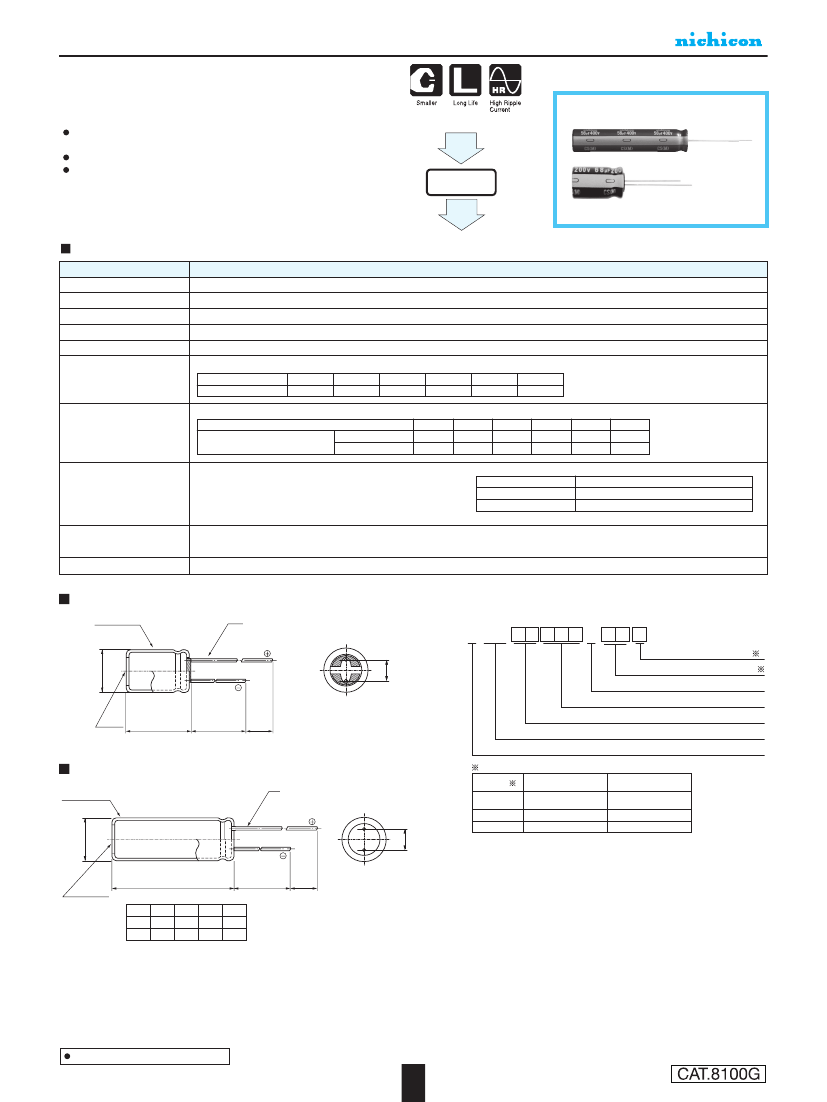

ALUMINUM ELECTROLYTIC CAPACITORS

UCS

Miniature Sized, High Ripple Current,

High Reliability

UCA

Smaller

High ripple current and Long Life product withstanding

load life of 8000 to 10000 hours at +105°C.

Suited for ballast application.

Compliant to the RoHS directive (2011/65/EU).

UCS

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

UCP UCY

Performance Characteristics

–40 to +105°C (160 to 400V) , –25 to +105°C (450V)

160 to 450V

6.8 to 330µF

± 20% at 120Hz, 20°C

After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.04CV+100 (µA)

Measurement frequency : 120Hz at 20°C

Rated voltage (V)

tan

(MAX.)

160

0.20

200

0.20

250

0.20

350

0.24

400

0.24

450

0.24

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Impedance ratio ZT / Z20 (MAX.)

Z–25°C / Z+20°C

Z–40°C / Z+20°C

160

200

250

350

400

450

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus rated

ripple current is applied for 10000 hours (8000 hours for

φD=10 ×

16L, 10

20L) at 105°C, the peak voltage shall not

exceed the rated voltage.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

φd

Type numbering system (Example : 250V 100µF)

10 11

U CS 2 E 1 0 1 M HD

φD

0.5MAX.

Size code

±0.5

Configuration

Capacitance tolerance (±20%)

Rated capacitance (100µF)

Pressure

relief vent

L +

1.5MAX.

MIN

Rated voltage (250V)

Series name

Type

Pencil - shaped Type

Sleeve (P.E.T.)

Configuration

Size code

Blank, 6

Pb-free leadwire

Pb-free PET sleeve

Pb-free leadwire

Pb-free PET sleeve

12.5 to 18

±0.5

φD

±0.5 MAX.

Pressure

relief vent

L+

2.0 MAX.

(mm)

MIN

φD

φd

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.
