F463BP183K1K6A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> F463BP183K1K6A

F463BP183K1K6A: DescriptionFilm Capacitor, Polypropylene, 1600V, 10% +Tol, 10% -Tol, 0.018uF, Through Hole Mount, 7133, RADIAL LEADED; CategoryPassive components capacitor; File Size2MB，31 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

F463BP183K1K6A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F463BP183K1K6A	-	-	View	Buy Now

F463BP183K1K6A Overview

Film Capacitor, Polypropylene, 1600V, 10% +Tol, 10% -Tol, 0.018uF, Through Hole Mount, 7133, RADIAL LEADED

F463BP183K1K6A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1250742858
package instruction	, 7133
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.4
Other features	RATED AC VOLTAGE (V): 650
capacitance	0.018 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	14.5 mm
length	18 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	10%
Rated (AC) voltage (URac)	650 V
Rated (DC) voltage (URdc)	1600 V
size code	7133
surface mount	NO
Terminal pitch	15 mm
Terminal shape	WIRE
width	8.5 mm

Preview

Download Datasheet

View All

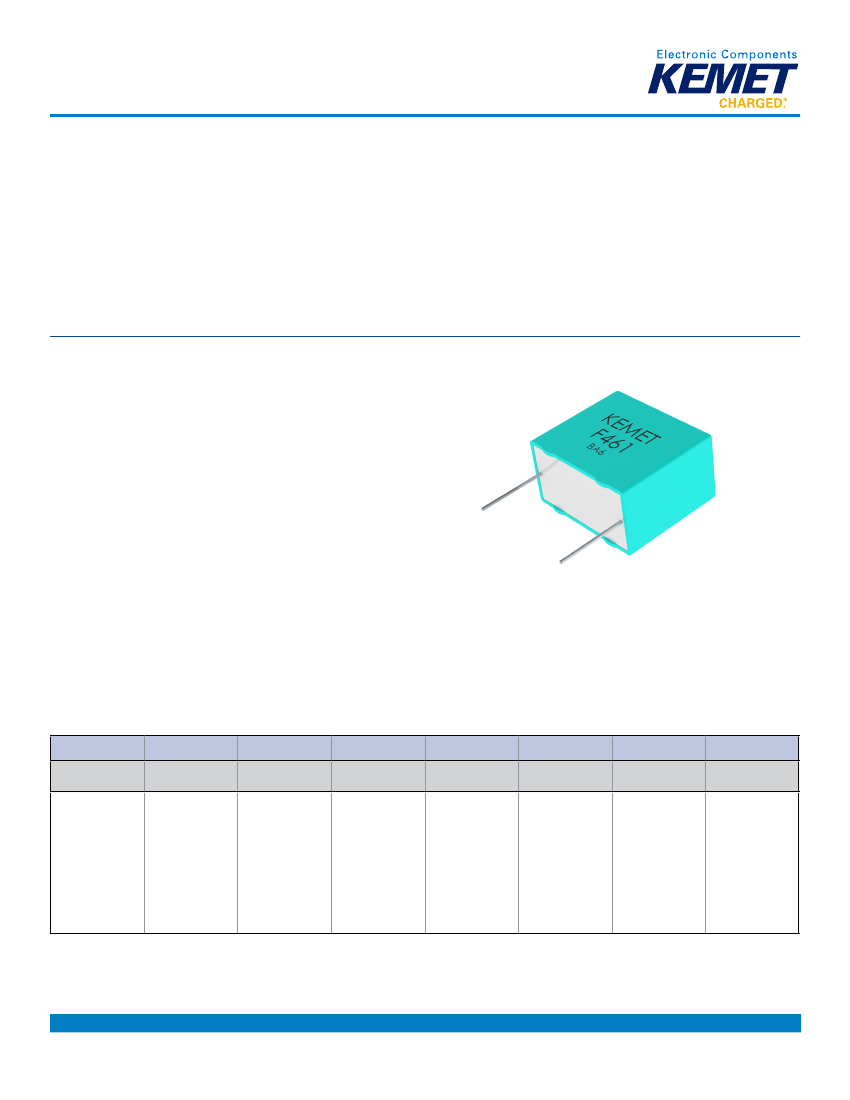

General Purpose, Pulse and DC Transient Suppression

F461 – 464 Single Metallized Polypropylene Film

Overview

The F461 – 464 Series is a metallized polypropylene film

encapsulated with self-extinguishing resin, in a box of

material meeting the requirements of UL 94 V–0. Four

different winding constructions are used depending on

voltage and lead spacing. Please see Table 1 for more

information.

Applications

Typical applications include pulse operation in switched

mode power supplies (SMPS), electrical ballasts, inverter

high frequency filtering and other high frequency applications

demanding stable operation.

Benefits

•

Rated voltage: 160 – 2,500 VDC

Rated voltage: 90 – 900 VAC

Capacitance range: 0.001 – 56 µF

Lead spacing: 5 – 37.5 mm

Capacitance tolerance: ±5%, ±10%, other tolerances on request

Climatic category: 55/105/56, IEC 60068–1

Tape and reel packaging in accordance with IEC 60286–2

RoHS Compliant and lead-free terminations

Category temperature range of −55°C to +105°C

Rated temperature +85°C

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Part Number System

Capacitor Class

F = Film

46x

Series

Metallized

Polypropylene

x = sections in

construction

Lead Spacing

(mm)

J=5

K = 7.5

A = 10

B = 15

D = 22.5

F = 27.5

R = 37.5

Size Code

See Dimension

Table

223

Capacitance

Code (pF)

First two digits

represent

significant

figures. Third

digit specifies

number of

zeros.

Capacitance

Tolerance

J = ±5%

K = ±10%

Other tolerances

on request

160

Rated Voltage

(VDC)

160 = 160

250 = 250

400 = 400

630 = 630

1K0 = 1,000

1L2 = 1,250

1K6 = 1,600

2K0 = 2,000

2K5 = 2,500

Packaging

See Ordering

Options Table

One world. One KEMET

F3028_F461-464 • 10/4/2017
