HLZ30007Z2R200KJ

Description
Wirewound Resistors - Chassis Mount 300watt 2.2ohms 10%
CategoryPassive components
File Size111KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

HLZ30007Z2R200KJ Online Shopping

Suppliers Part Number Price MOQ In stock
HLZ30007Z2R200KJ - - View Buy Now

HLZ30007Z2R200KJ Overview

Wirewound Resistors - Chassis Mount 300watt 2.2ohms 10%

HLZ30007Z2R200KJ Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryWirewound Resistors - Chassis Mount
RoHSN
Resistance2.2 Ohms
Power Rating300 W
Tolerance10 %
Temperature Coefficient50 PPM / C
Operating Temperature Range- 55 C to + 350 C
Length215.9 mm
Diameter28.58 mm
TechnologyWirewound
Termination StyleSolder Lug
Mounting StyleChassis Mount
Maximum Operating Temperature+ 350 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity1
Unit Weight8.324655 oz
Product is End of Life Mar-2016 and Replaced by FSE
HLZ
www.vishay.com
Vishay Dale

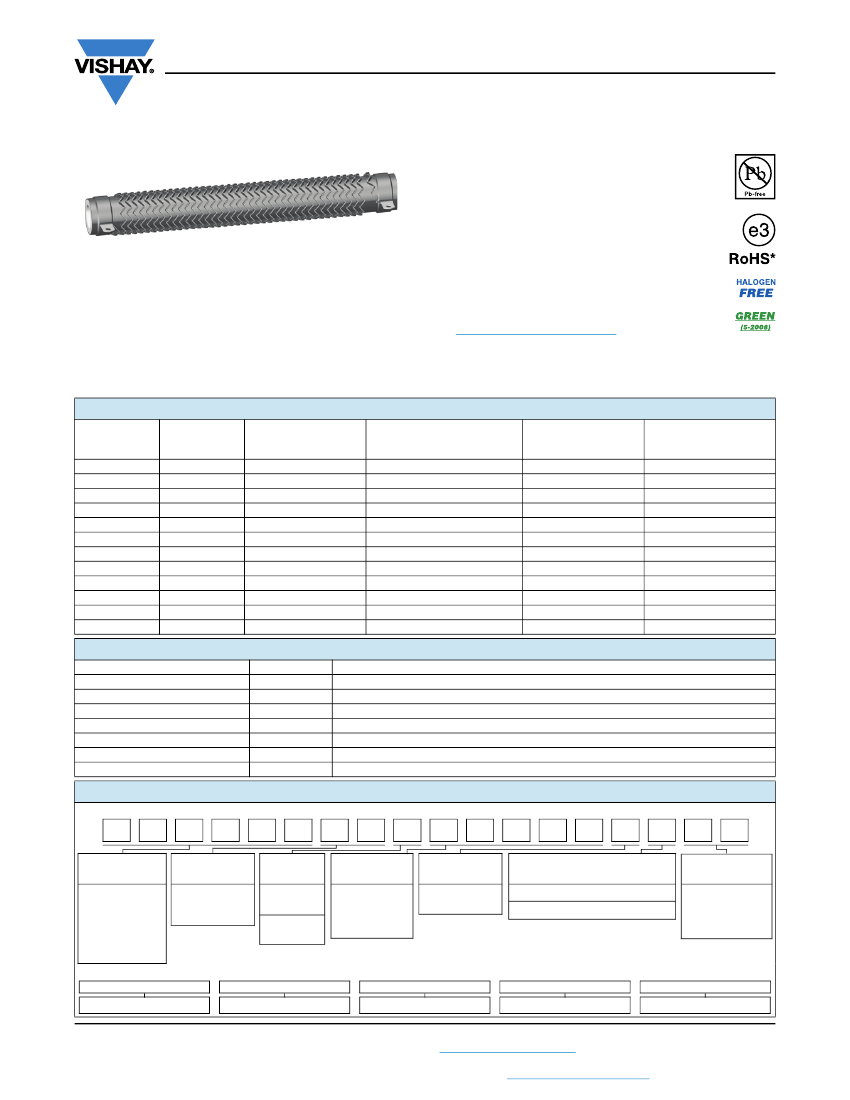

Wirewound Resistors, Industrial Power, Edgewound
FEATURES
• High temperature silicon coating
• Complete welded construction
• Excellent for intermittent power and pulsing
applications
• Designed to meet heavy-duty requirement
where space is at a premium
• Excellent stability in operation (< 3 % change
in resistance)
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
Available
Available
Available
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
Available
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
HLZ033
HLZ090
HLZ099
HLZ105
HLZ110
HLZ140
HLZ165
HLZ220
HLZ240
HLZ275
HLZ300
HLZ375
HISTORICAL
MODEL
HLZ-33
HLZ-90
HLZ-99
HLZ-105
HLZ-110
HLZ-140
HLZ-165
HLZ-220
HLZ-240
HLZ-275
HLZ-300
HLZ-375
POWER RATING
P
25 °C
W
35
90
100
105
110
140
165
220
240
275
300
375
RESISTANCE RANGE
0.05 to 1.9
0.10 to 5.7
0.15 to 6.1
0.20 to 7.4
0.20 to 8.6
0.08 to 9.0
0.35 to 13.0
0.10 to 16.0
0.10 to 18.0
0.15 to 23.0
0.15 to 25.0
0.20 to 32.0
TOLERANCE
±%
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
WEIGHT
(typical)
g
18
36
41
49
54
109
91
163
186
224
236
286
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Short Time Overload
Terminal Strength
Dielectric Withstanding Voltage
Maximum Working Voltage
Insulation Resistance
Operating Temperature Range
UNIT
ppm/°C
-
lb
V
AC
V
°C
HLZ RESISTOR CHARACTERISTICS
± 30 for 10
and above; ± 50 for 1
to 9.9
;
± 90 for 0.1
to 0.99
10 x rated power for 5 s
10 minimum
1000,
from terminal to mounting hardware
(P x
R)
1/2
1000 M minimum dry, 100 M minimum after moisture test
-55 to +350
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: HLZ16506Z10R00KJ
H
GLOBAL
MODEL
L
Z
1
6
5
0
6
Z
1
0
R
0
0
K
J
SPECIAL
(dash number)
(up to 2 digits)
from
1 to 99
as applicable
TERMINAL
DESIGNATION
06
07
15
TERMINAL
FINISH
E
= lead
(Pb)-free
RESISTANCE
VALUE
TOLERANCE
J
= ± 5.0 %
K
= ± 10.0 %
Note
PACKAGING CODE
E
= lead (Pb)-free skin pack
J
(1)
= skin pack (J01)
HLZ165
(see “Standard
Electrical
Specifications”
table above for
additional P/N’s)
R
= decimal
K
= thousand
10R00
= 10.0
Z
= tin / lead
1K000
= 1 k
N
= nickel
(1)
Tin / lead for type “Z”, lead (Pb)-free for type “N”
Historical Part Numbering example: HLZ-165-06Z 10
10 % J01
HLZ-165
06Z
10
HISTORICAL MODEL
Revision: 26-Feb-16
TERMINAL/FINISH
RESISTANCE VALUE
10 %
TOLERANCE
J01
PACKAGING
Document Number: 30245
1
For technical questions, contact:
ww2dresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
