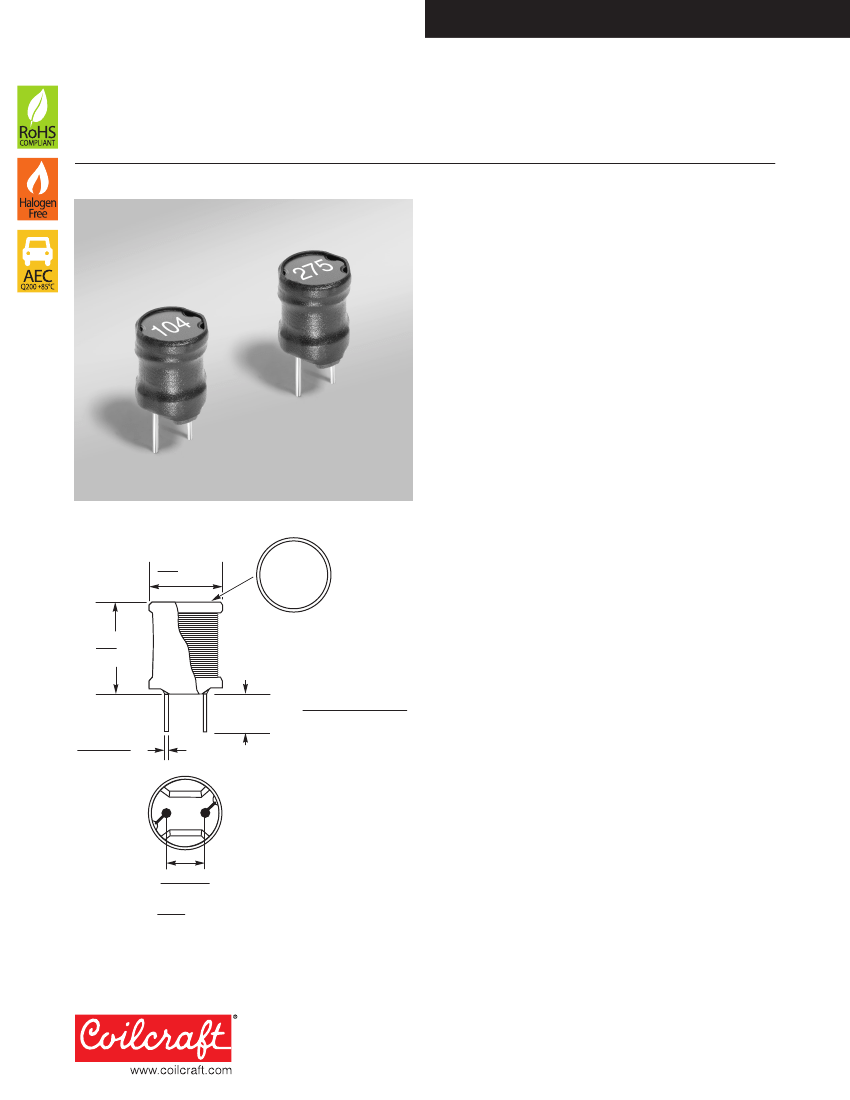

Document 1108-1
Power Inductors – RFC0810 Series
• Low cost, high current power inductors
• 34 inductance values; 33 µH to 18 mH
• Flame retardant polyolefin wrap to protect the winding.
Core material
Ferrite
Terminations
RoHS compliant tin-silver over tin over copper over
steel. Other terminations available at additional cost
Environmental
RoHS compliant, halogen free
Weight
2.0 – 2.3 g
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tray or tape packaging: –40°C to +80°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SRA-332
Packaging
150 parts per tray (except parts with 25 mm lead length);
Parts with 25 mm lead length: in fanfold tape, 800 parts per box
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
0.37
dia max
9,5
XXX
Dash number
0.45 max
11,5
Lead length
(see table)
0.024 ±0.004 dia
0,6 ±0,1
Code
A
B
C
D
E
F
Lead length
3.6 mm ±0.3 mm
5.0 mm ±0.5 mm
7.0 mm ±0.5 mm
8.0 mm ±0.5 mm
10 mm ±1.0 mm
25 mm ±1.0 mm
0.197 ±0.02
5,0 ±0,5
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1108-1
Revised 01/21/14
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1108-2
Power Inductors – RFC0810 Series
Part number
1
RFC0810B-333KE
RFC0810B-393KE
RFC0810B-473KE
RFC0810B-563KE
RFC0810B-683KE
RFC0810B-823KE
RFC0810B-104KE
RFC0810B-124KE
RFC0810B-154KE
RFC0810B-184KE
RFC0810B-224KE
RFC0810B-274KE
RFC0810B-334KE
RFC0810B-394KE
RFC0810B-474KE
RFC0810B-564KE
RFC0810B-684KE
RFC0810B-824KE
RFC0810B-105KE
RFC0810B-125KE
RFC0810B-155KE
RFC0810B-185KE
RFC0810B-225KE
RFC0810B-275KE
RFC0810B-335KE
RFC0810B-395KE
RFC0810B-475KE
RFC0810B-565KE
RFC0810B-685KE
RFC0810B-825KE
RFC0810B-106KE
RFC0810B-126KE
RFC0810B-156KE
RFC0810B-186KE
Inductance
2
±10% (µH)
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10,000
12,000
15,000
18,000
DCR (Ohms)
typ
max
0.065
0.075
0.070
0.085
0.080
0.095
0.110
0.125
0.120
0.140
0.160
0.185
0.185
0.210
0.210
0.240
0.280
0.325
0.310
0.355
0.400
0.460
0.460
0.530
0.520
0.600
0.705
0.810
0.795
0.915
0.895
1.05
1.15
1.30
1.55
1.80
1.70
1.95
2.35
2.70
2.70
3.10
3.00
3.45
4.10
4.70
4.70
5.40
6.15
7.10
7.10
8.15
8.05
9.25
9.90
11.5
11.5
13.0
15.0
17.0
17.0
19.5
21.5
24.5
24.5
27.0
27.5
30.0
SRF typ
3
(MHz)
9.0
8.7
7.5
7.3
6.3
5.2
5.0
4.9
4.1
3.8
3.0
2.9
2.6
2.4
2.2
2.0
1.7
1.6
1.5
1.2
1.1
1.0
0.93
0.89
0.88
0.84
0.78
0.59
0.55
0.48
0.45
0.40
0.36
0.34
10% drop
3.50
3.20
2.90
2.65
2.45
2.20
2.00
1.80
1.60
1.50
1.30
1.20
1.10
1.03
0.93
0.84
0.78
0.70
0.64
0.58
0.53
0.48
0.43
0.39
0.36
0.33
0.31
0.28
0.26
0.23
0.21
0.19
0.17
0.16
Isat
(A)
4
20% drop
3.96
3.66
3.33
3.05
2.80
2.52
2.27
2.08
1.86
1.75
1.55
1.40
1.27
1.18
1.06
0.97
0.90
0.82
0.73
0.66
0.59
0.55
0.49
0.45
0.40
0.37
0.35
0.31
0.28
0.26
0.23
0.22
0.20
0.18
30% drop
4.25
3.95
3.60
3.27
3.02
2.72
2.43
2.24
2.01
1.88
1.67
1.51
1.40
1.28
1.15
1.06
0.96
0.87
0.78
0.71
0.64
0.59
0.52
0.48
0.43
0.40
0.37
0.33
0.31
0.28
0.25
0.23
0.21
0.20
Irms
(A)
5
20°C rise 40°C rise
2.10
3.00
2.00
2.75
1.85
2.60
1.55
2.15
1.50
2.10
1.30
1.80
1.20
1.70
1.15
1.60
1.00
1.40
0.95
1.30
0.82
1.15
0.75
1.05
0.70
1.00
0.60
0.85
0.58
0.80
0.55
0.75
0.48
0.66
0.40
0.57
0.38
0.54
0.33
0.46
0.31
0.43
0.29
0.41
0.25
0.35
0.23
0.33
0.20
0.29
0.185
0.26
0.180
0.25
0.150
0.22
0.145
0.205
0.130
0.180
0.122
0.170
0.108
0.150
0.100
0.142
0.097
0.135
1. When ordering, please specify
lead length
and
termination
codes:
RFC0810B-183KE
Lead length: A
= 3.6 mm ±0.3 mm (special order)
B
= 5.0 mm ±0.5 mm
C
= 7.0 mm ±0.5 mm (special order)
D
= 8.0 mm ±0.5 mm (special order)
E
= 10.0 mm ±1.0 mm (special order)
F
= 25.0 mm ±1.0 mm, packaged in fanfold tape, 800 parts per box (special order)
Termination: E
= RoHS compliant tin-silver over tin over copper over steel.
Special order:
S
= non-RoHS tin-lead (63/37).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-meter or equivalent.
3. SRF measured using Agilent/HP 4191A or equivalent.
4. DC current at 25°C that causes the specified inductance drop from its value without current.
Click for temperature derating information.
5. Current that causes the specified temperature rise from 25°C ambient. This information is for reference
only and does not represent absolute maximum ratings.
Click for temperature derating information.
6. Electrical specifications at 25°C.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1108-2
Revised 01/21/14
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1108-3
Typical L vs Current
100,000
10,000 µH
3300 µH
1000 µH
330 µH
Power Inductors – RFC0810 Series
Typical L vs Frequency
100,000
10,000 µH
3300 µH
1000 µH
330 µH
100 µH
33 µH
10
10,000
10,000
Inductance (µH)
1000
Inductance (µH)
1
10
1000
100
100 µH
33 µH
100
10
0.01
0.1
0.01
0.1
1
10
Current (A)
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1108-3
Revised 01/21/14
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
