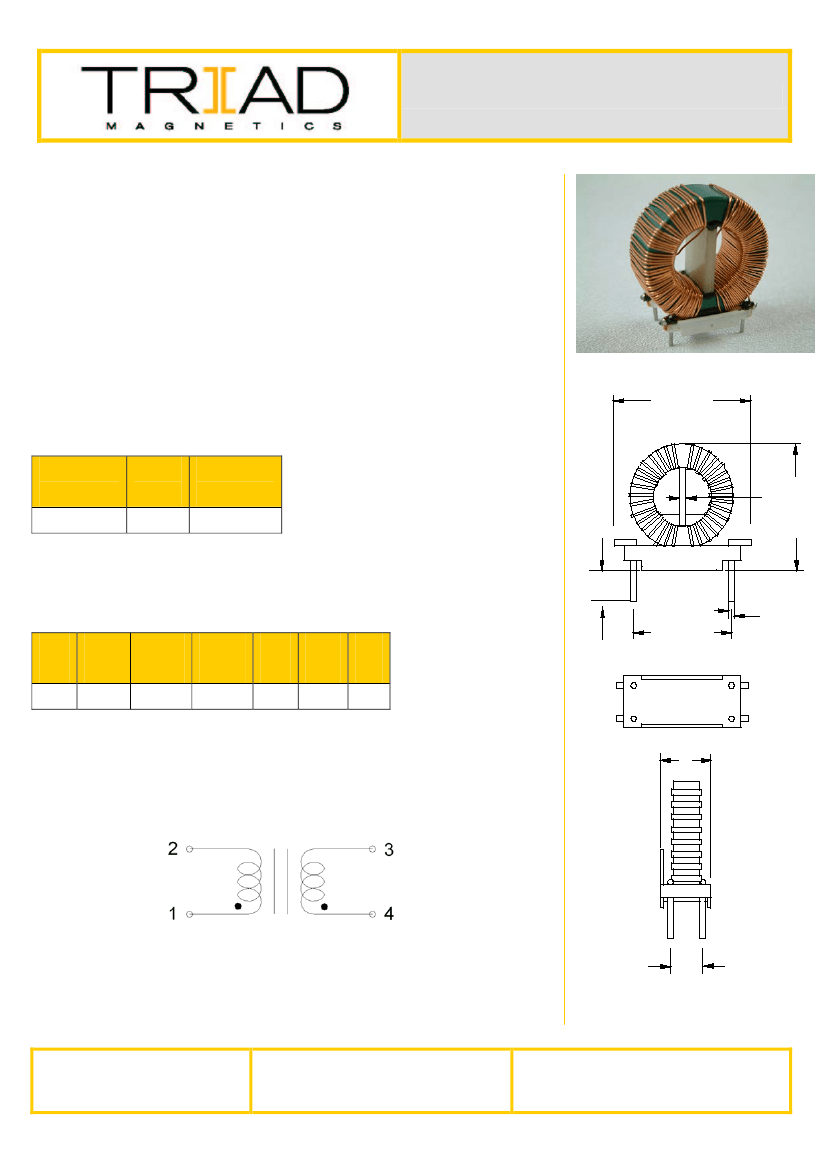

Common Mode Inductors
CMT-8116
Description:
Highly dependable Triad common mode EMI suppression inductors are used in
various types of power supplies to eliminate noise common to all lines. These units
also provide effective differential mode filtering. Meeting VDE, IEC, UL and CSA
requirements, they minimize AC line transmitted interference often created by high
frequency switching power supplies.
Construction:
Constructed with UL rated 130°C (Class B) materials.
A
Electrical Specifications (@25C) .1V@1Khz
Min.
Inductance
(1)
50.0 mH
Amps
(2)
RMS
2.3
Max. DC (Ω)
Resistance
0.45
0.12 min.
E
1. Inductance per winding.
2. Rated current to cause approximately 35°C temperature rise.
G
Dimensions:
C
F
C
D
± 0.015
0.60
E
Max.
1.65
F
Max.
0.050
G
Min.
0.15
A
Max.
1.55
B
± 0.01
0.80
± 0.015
0.90
2
1
B
3
4
*Units in inches.
Safety:
1500VAC Dielectric Strength between windings
.
Schematic:
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet the
requirements of 2011/65/EU, known as the RoHS initiative.
*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics
website for the most current version.
For soldering and washing information please see
http://www.triadmagnetics.com/faq.html
D
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: June 8, 2016
