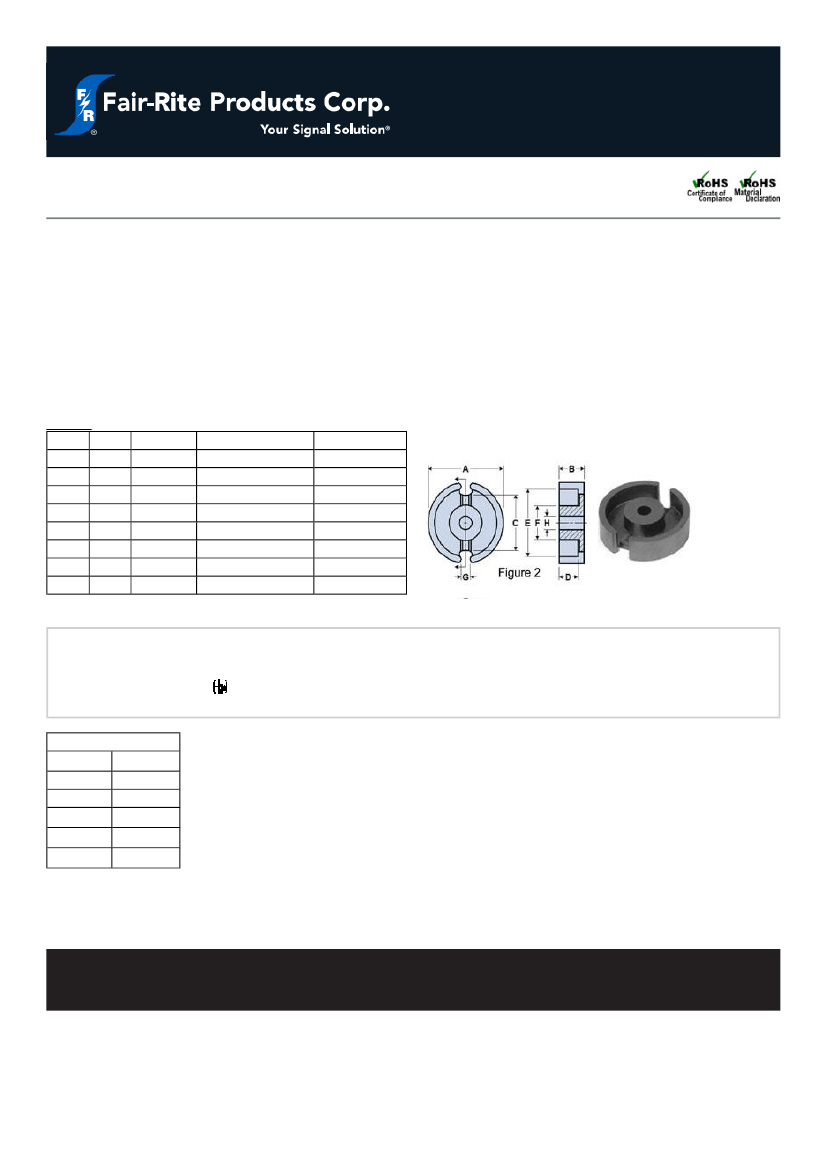

Pot Cores (5698261721)
Part Number: 5698261721
98 POT CORE SET
Pot cores have found application in all types of inductive devices. The core configuration provides a high degree of self-
shielding. It also facilitates gapping to enhance utility for a variety of magnetic designs.
Pot cores can be supplied with the center post gapped to a mechanical dimension or an A
L
value.
Weight indicated is per pair or set.
Weight: 20.000 (g)
Dim mm mm tol
A
25.5 ±0.50
B
8.05 ±0.15
C
17.2 ±0.50
D
5.65 ±0.20
E
21.6 ±0.40
F
11.1 ±0.30
G
4.15 ±0.50
H
5.4
±0.25
nominal inch
1.004
0.317
0.677
0.222
0.85
0.437
0.163
0.213
inch misc.
_
_
_
_
_
_
_
_
Chart Legend
Σl/ A : Core Constant, l
e
: Effective Path Length, A
e
: Effective Cross- Sectional Area, V
e
:
Effective Core Volume
A
L
: Inductance Factor
Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade.
Electrical Properties
A
L
(nH)
5000 ±25%
2
Ae(cm ) 0.867
-1
Σl/ A(cm ) 4.4
l
e
(cm)
3.8
3
V
e
(cm )
3.31
2
A
min
(cm ) 0.74
A
L
value is measured at 1 kHz, B < 10 gauss.
Fair- Rite Products Corp.
•
One Commercial Row, Wallkill, New York 12589-0288
888-324-7748 • 845-895-2055 • Fax: 845-895-2629 • ferrites@fair- rite.com • www.fair- rite.com
