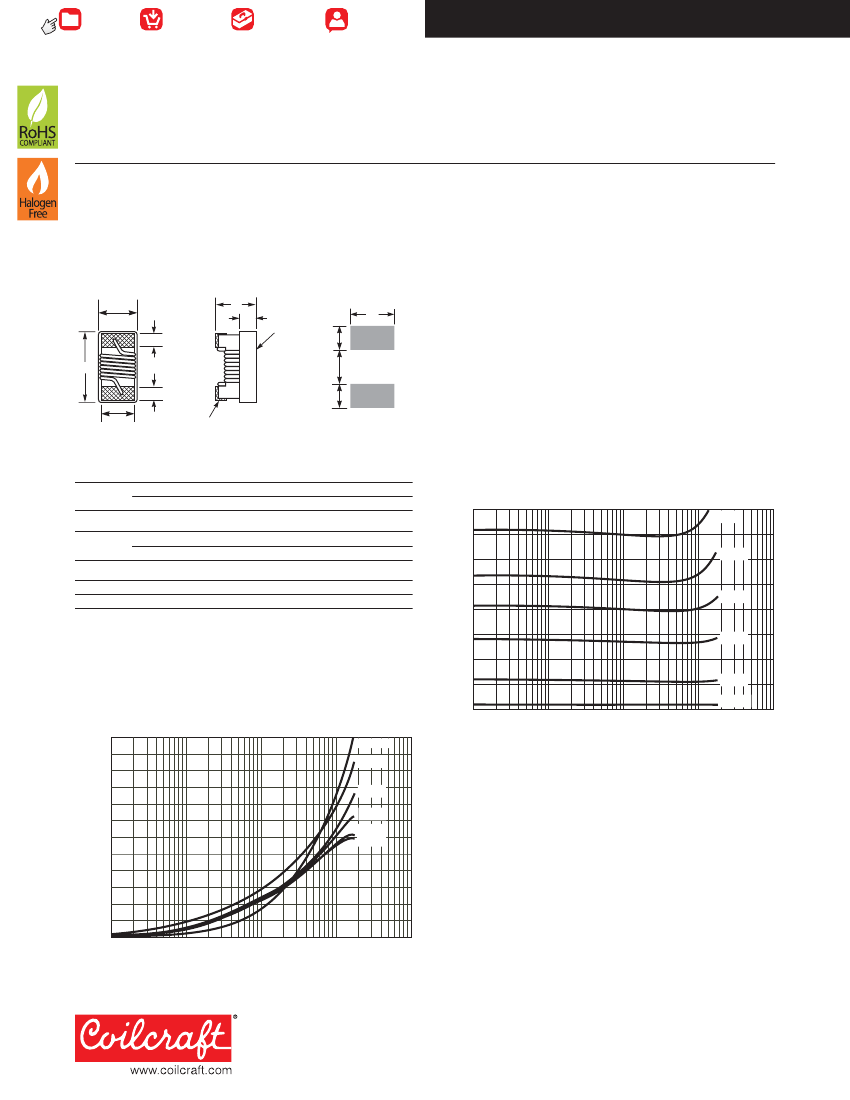

Document 526 -1
Chip Inductors - 0402HP Series (1005)
•
•
•
•
Higher Q and lower DCR than other 0402 inductors
Very high SRF values – as high as 16 GHz
Excellent current handling capability – up to 2300 mA
54 inductance values from 1.0 to 220 nH
B
overall
F
C
D
Pick and
place
material
I
J
H
A
G
F
I
Terminal wraparound:
approx 0.007/0,18 both ends
E
terminal
Recommended
Land Pattern
Core material
Ceramic
Environmental
RoHS compliant, halogen free
Terminations
Silver-palladium-platinum-glass frit. Other terminations
available at additional cost.
Weight
0.7 – 1.0 mg
Ambient temperature
–40°C to +125°C with
Irms
current
Maximum part temperature
+140°C (ambient + temp rise).
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 or 5000 per 7″ reel. Paper tape: 8 mm wide,
0.66 mm thick, 2 mm pocket spacing
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
0402HP
A max
2
0.043
1,09
A
0.044
1,12
E
0.020
0,51
max
2
B (min
–
max)
0.020 – 0.028
0,51 – 0,71
B
0.026 ±0.002
0,66 ±0,051
G
0.024
0,61
H
0.026
0,66
C max
3
0.024
0,61
C
0.026
0,66
I
0.014
0,36
max
3
inches
mm
inches
mm
J
0.020
0,51
Typical L vs Frequency
80
70
68 nH
0402HPH
D ref
0.010
0,25
F
0.008
0,20
Inductance (nH)
60
50
51 nH
inches
mm
39 nH
Notes:
1. Unless otherwise indicated, all dimensions are nominal.
2. Length dimension (A) is before optional solder application. Maximum
dimension including solder is 0.045 in / 1.143 mm.
3. Height dimension (C) is before optional solder application. For maxi-
mum height dimension including solder, add 0.006 in / 0,152 mm.
40
30
20
10
11 nH
2.0 nH
27 nH
Typical Q vs Frequency
120
110
100
90
80
70
60
50
40
30
20
10
0
2.0 nH
11 nH
27 nH
39 nH
51 nH
68 nH
0
1
10
100
1000
10000
Frequency (MHz)
Q Factor
1
10
100
1000
10000
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 526-1
Revised 12/20/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 526-2
0402HP Series (1005)
Part
0402HP-1N0XJE_
0402HP-2N0XJE_
0402HP-2N2XJE_
0402HP-2N4X_E_
0402HP-2N7X_E_
0402HP-3N3X_E_
0402HP-3N6X_E_
0402HP-3N9X_E_
0402HP-4N3X_E_
0402HP-4N7X_E_
0402HP-5N1X_E_
0402HP-5N6X_E_
0402HP-6N2X_E_
0402HP-6N8X_E_
0402HP-7N5X_E_
0402HP-8N2X_E_
0402HP-8N7X_E_
0402HP-9N0X_E_
0402HP-9N5X_E_
0402HP-10NX_E_
0402HP-11NX_E_
0402HP-12NX_E_
0402HP-13NX_E_
0402HP-15NX_E_
0402HP-16NX_E_
0402HP-17NX_E_
0402HP-18NX_E_
0402HP-19NX_E_
0402HP-20NX_E_
0402HP-21NX_E_
0402HP-22NX_E_
0402HP-23NX_E_
0402HP-24NX_E_
0402HP-25NX_E_
0402HP-26NX_E_
0402HP-27NX_E_
0402HP-30NX_E_
0402HP-33NX_E_
0402HP-36NX_E_
0402HP-37NX_E_
0402HP-39NX_E_
0402HP-40NX_E_
0402HP-43NX_E_
0402HP-47NX_E_
0402HP-51NX_E_
0402HPH-56NX_E_
0402HPH-68NX_E_
0402HPH-82NX_E_
0402HPH-R10X_E_
0402HPH-R12X_E_
0402HPH-R15X_E_
0402HPH-R16X_E_
0402HPH-R18X_E_
0402HPH-R22X_E_
number
1
Inductance
2
Percent
(nH)
tolerance
3
1.0
5
2.0
5
2.2
5
2.4
5,3,2
2.7
5,3,2
3.3
5,3,2
3.6
5,3,2
3.9
5,3,2
4.3
5,3,2
4.7
5,3,2
5.1
5,3,2
5.6
5,3,2
6.2
5,3,2
6.8
5,3,2
7.5
5,3,2
8.2
5,3,2
8.7
5,3,2
9.0
5,3,2
9.5
5,3,2
10
5,3,2
11
5,3,2
12
5,3,2
13
5,3,2
15
5,3,2
16
5,3,2
17
5,3,2
18
5,3,2
19
5,3,2
20
5,3,2
21
5,3,2
22
5,3,2
23
5,3,2
24
5,3,2
25
5,3,2
26
5,3,2
27
5,3,2
30
5,3,2
33
5,3,2
36
5,3,2
37
5,3,2
39
5,3,2
40
5,3,2
43
5,3,2
47
5,3,2
51
5,3,2
56
5,3,2
68
5,3,2
82
5,3,2
100
5,3,2
120
5,3,2
150
5,3,2
160
5,3,2
180
5,3,2
220
5,3,2
Test freq
(MHz)
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
100
100
100
100
Designer’s Kits C403A
and
B
contain 20 each of 5% values
Designer’s Kits C403A-2
and
B-2
contain 20 each of 2% values
900 MHz
L typ
Q typ
4
0.97
46
1.96
58
2.17
60
2.37
60
2.66
62
3.26
66
3.56
65
3.87
64
4.26
63
4.67
58
5.07
54
5.56
73
6.18
73
6.78
68
7.49
60
8.10
68
8.73
66
8.99
67
9.52
64
9.98
62
11.0
68
12.0
66
13.1
62
15.1
62
16.2
57
17.2
51
18.2
58
19.2
61
20.3
58
21.3
48
22.3
60
23.3
60
24.5
55
25.5
57
26.6
56
27.3
62
30.8
61
34.0
61
37.1
59
38.2
57
40.5
56
41.3
56
45.0
52
49.0
48
49.1
52
58.8
56
72.2
56
89.7
52
–
–
–
–
–
–
–
–
–
–
–
–
1.7 GHz
L typ Q typ
4
0.99
72
1.98
85
2.17
86
2.38
83
2.68
85
3.28
95
3.58
94
3.91
98
4.33
90
4.74
83
5.16
76
5.66
105
6.25
100
6.97
94
7.77
82
8.40
95
9.04
95
9.21
92
9.97
90
10.4
90
11.6
98
12.6
100
13.9
82
16.0
85
17.3
77
18.7
64
19.5
74
20.7
88
22.0
76
23.2
62
24.4
74
25.5
77
27.1
71
28.3
73
29.3
74
29.5
86
35.0
87
38.3
80
42.2
76
44.0
72
47.0
84
47.4
75
54.1
68
58.9
62
58.8
59
72.2
64
91.4
64
–
–
–
–
–
–
–
–
–
–
–
–
–
–
SRF typ
5
DCR max
6
Irms
7
(GHz)
(Ohms)
(mA)
16.0
0.030
2300
15.2
0.038
2100
15.1
0.038
2100
14.0
0.042
2000
13.0
0.085
1500
12.8
0.045
1700
11.7
0.045
1700
9.50
0.045
1700
7.15
0.050
1600
6.85
0.075
1500
6.80
0.125
1200
6.50
0.055
1600
5.80
0.055
1600
5.80
0.070
1500
5.40
0.100
1400
5.40
0.065
1500
5.00
0.070
1500
5.00
0.080
1400
4.70
0.090
1400
4.70
0.110
1300
4.70
0.065
1400
4.40
0.100
1200
4.20
0.155
870
3.90
0.115
1100
3.70
0.150
850
3.70
0.230
650
3.55
0.120
900
3.50
0.145
850
3.50
0.185
780
1.70
0.460
450
3.30
0.160
800
3.30
0.160
800
3.15
0.210
700
3.15
0.260
700
3.15
0.290
700
3.20
0.350
450
2.90
0.350
450
2.80
0.330
490
2.80
0.390
480
2.70
0.480
470
2.60
0.430
450
2.60
0.430
450
2.50
0.520
450
2.40
0.580
420
2.30
0.700
360
2.07
0.900
330
1.84
1.00
320
1.75
1.10
315
1.58
1.20
310
1.25
1.20
310
1.14
2.0
240
1.65
2.0
240
1.08
2.1
240
0.96
3.1
160
1. When ordering, specify
tolerance, termination
and
packaging
codes:
0402HP-82NXJEW
G
= 2%
H
= 3%
J
= 5%
(Table shows stock tolerances in bold.)
Termination: E
= Halogen free component. RoHS compliant silver-
palladium-platinum-glass frit terminations.
L
= RoHS compliant, not halogen-free. Silver-palladium-
platinum-glass frit terminations.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper
tape (2000 parts per full reel).
Q
= 7″ machine-ready reel. EIA-481 punched paper
tape (5000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter W instead.
Tolerance:
2. Inductance measured at test frequency using a Coilcraft SMD-F fixture
in an Agilent/HP 4286 impedance analyzer with Coilcraft-provided cor-
relation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4287A with an Agilent/HP 16197 test
fixture.
5. SRF measured using an Agilent/HP 8722ES network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test
fixture.
7. Current that causes a 15°C temperature rise from 25°C ambient. This
information is for reference only and does not represent absolute maxi-
mum ratings.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 526-2
Revised 12/20/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
