Open circuit inductance test parameters: 100 kHz, 0.250 Vrms, 0 Adc.
(2)
DC current for an approximate
∆T
of 30 °C at
+75
°C Ambient with no core loss. See Chart 2 for derating of
I
I
dc
with core loss.
(3)
Peak current for an approximate 30% roll-off in OCL. For other current levels see Chart 1.
(4)
Applied Volt-Time product (Vµs) across the inductor. This value represents the Vµs at 100 kHz necessary to generate a core loss equal to 10% of the total
losses for 30°C rise. For other frequencies and operating levels see Chart 2. (Note: skin effect losses not included.)
(5)
Energy storage (µJ) at I
SAT
. For other current levels see Chart 1.
(6)
Maximum D.C. resistance at
+20
°C.
2
www.eaton.com/electronics

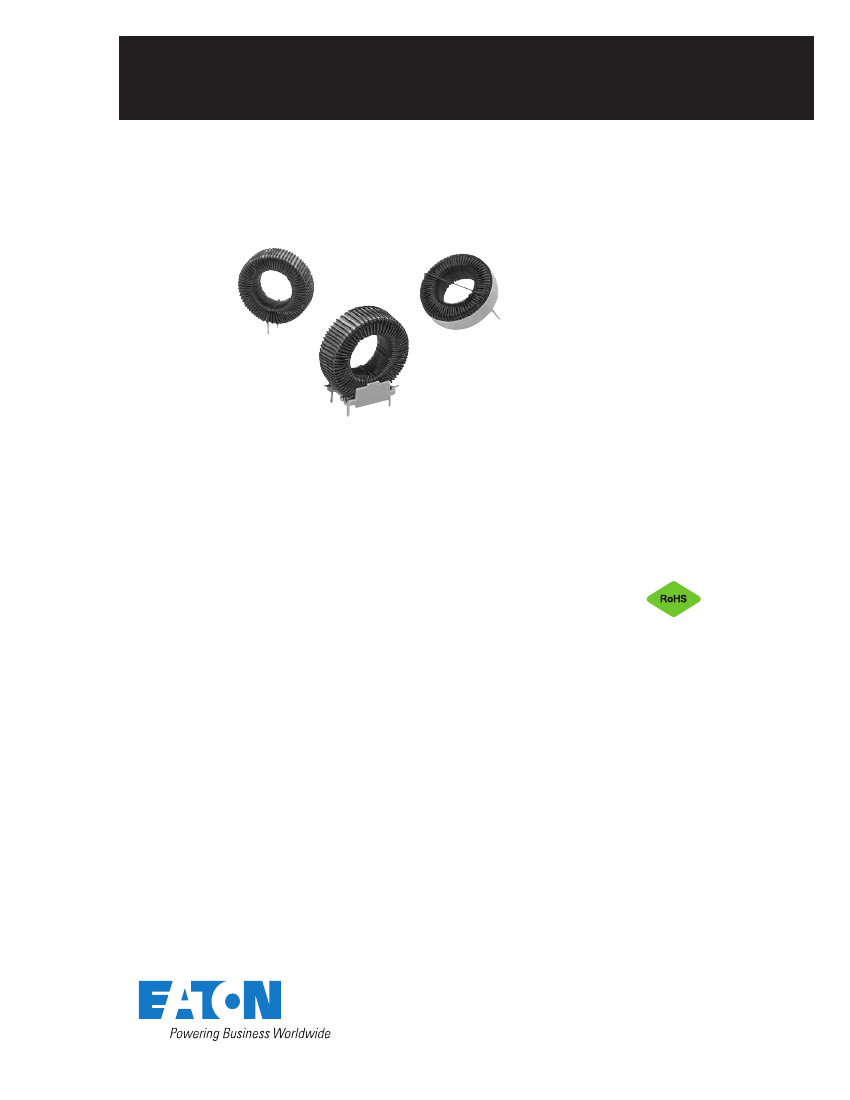

LCPI
Toroid
power inductors
Technical Data
4304
Effective
July
2017

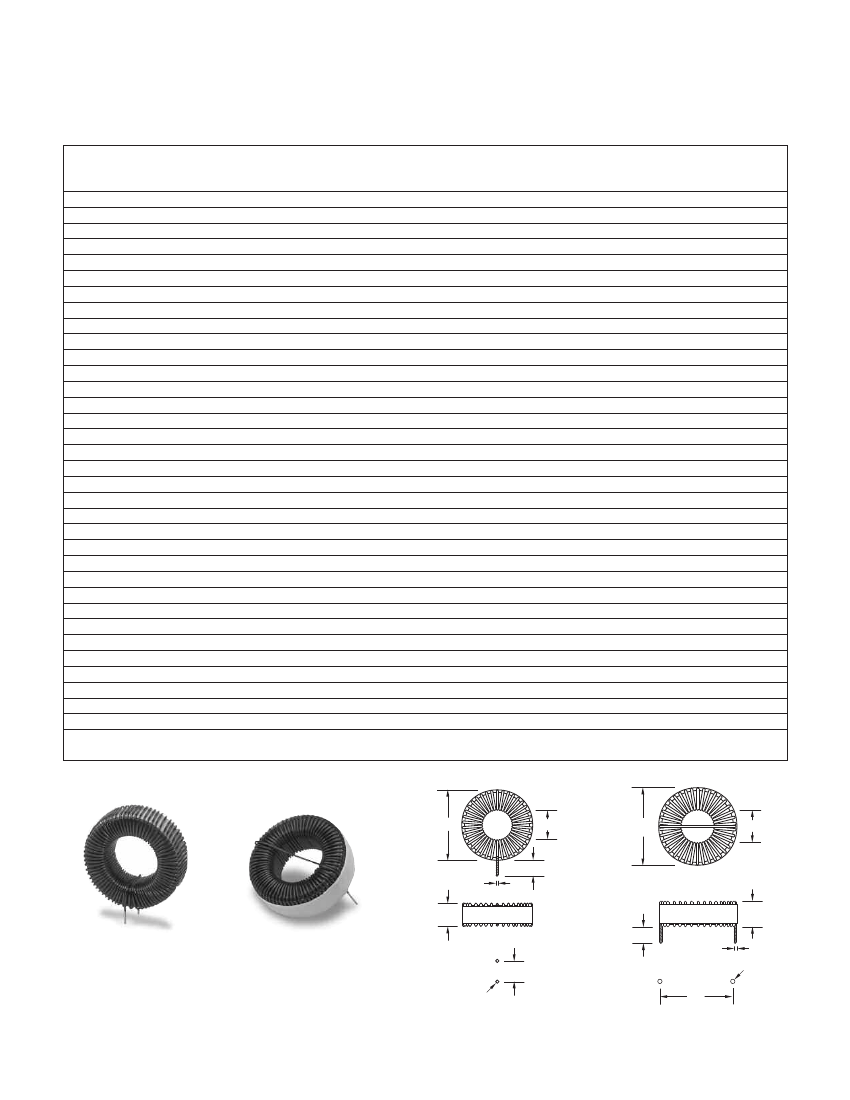

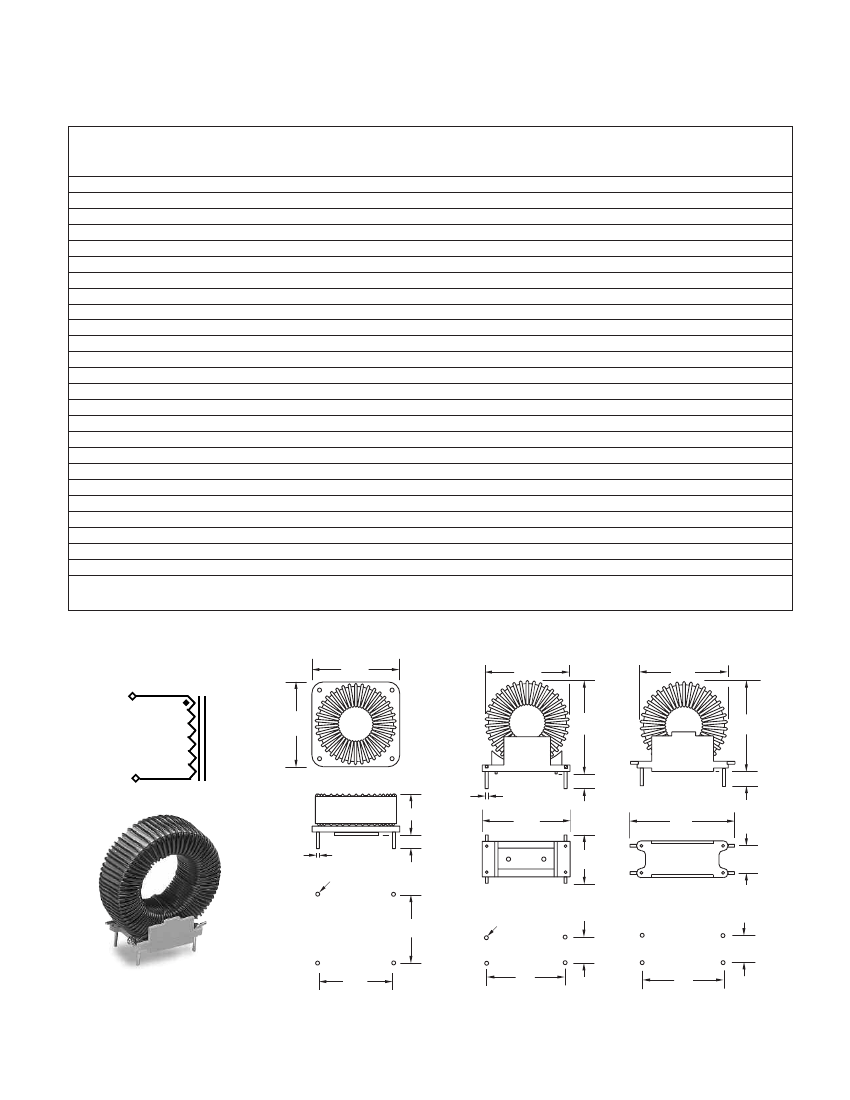

Dimensions- mm
Vertical and Horizontal Self Leaded Mounting Options
