LFSPXO056168Reel datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO056168Reel

Preview

LFSPXO056168Reel: DescriptionCMOS Output Clock Oscillator, 12MHz Nom; CategoryPassive components oscillator; File Size125KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO056168Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO056168Reel	-	-	View	Buy Now

LFSPXO056168Reel Overview

CMOS Output Clock Oscillator, 12MHz Nom

LFSPXO056168Reel Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339922189
Reach Compliance Code	compliant
YTEOL	6.5
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.0mm x 1.6mm x 0.7mm
longest rise time	5 ns
Maximum supply voltage	1.98 V
Minimum supply voltage	1.62 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

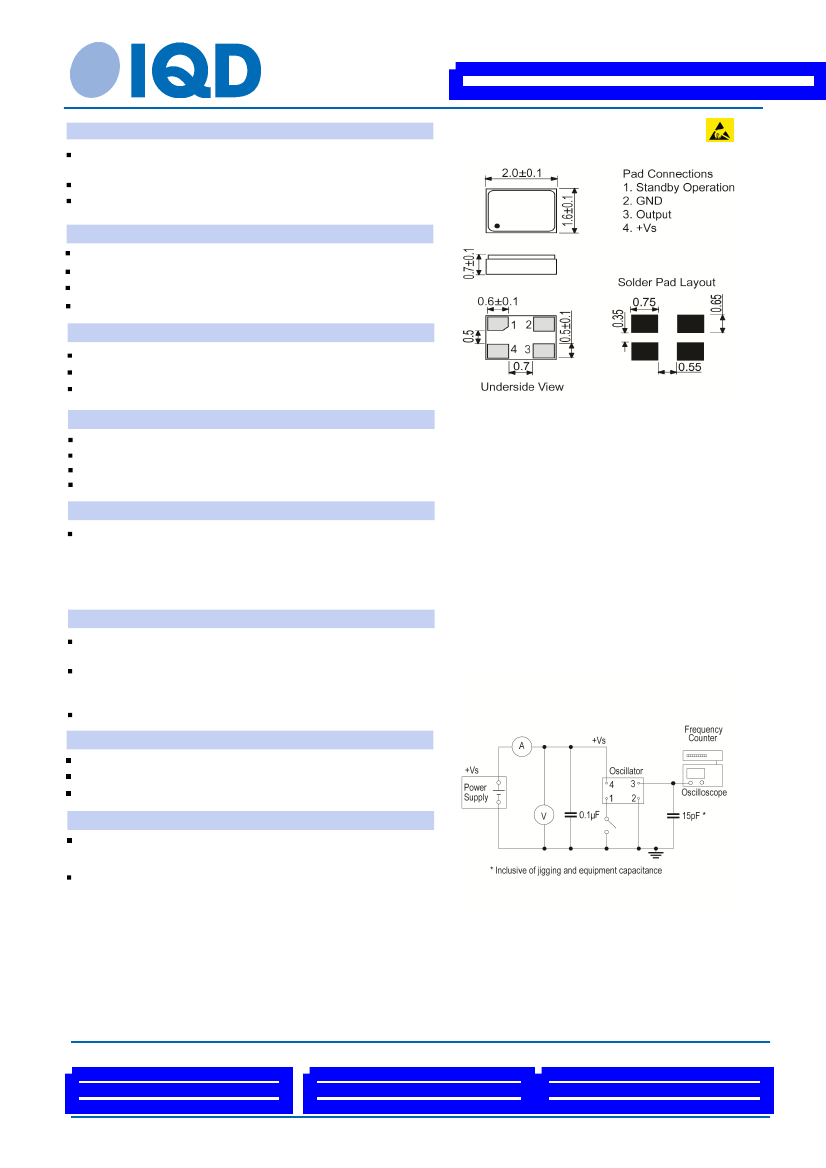

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO056168Reel

Description

Standard 2 x 1.6 crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed

Model

IQXO-542

Model Issue number

2

Frequency Parameters

Outline (mm)

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

12.0MHz

±50.00ppm

-40.00 to 85.00°C

±5ppm

1.8V ±10%

Supply Voltage

Current Draw

3.000mA

Standby Current: 10μA max (pad 1 at logic '0')

Output Details

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

45/55%

Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables

oscillator output

Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Impact: Weight of 10g dropped to centre of part from a height

of 6mm

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –40 to 85°C

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 1 May 18 10:51 using Part Data Sheet V1.00015
