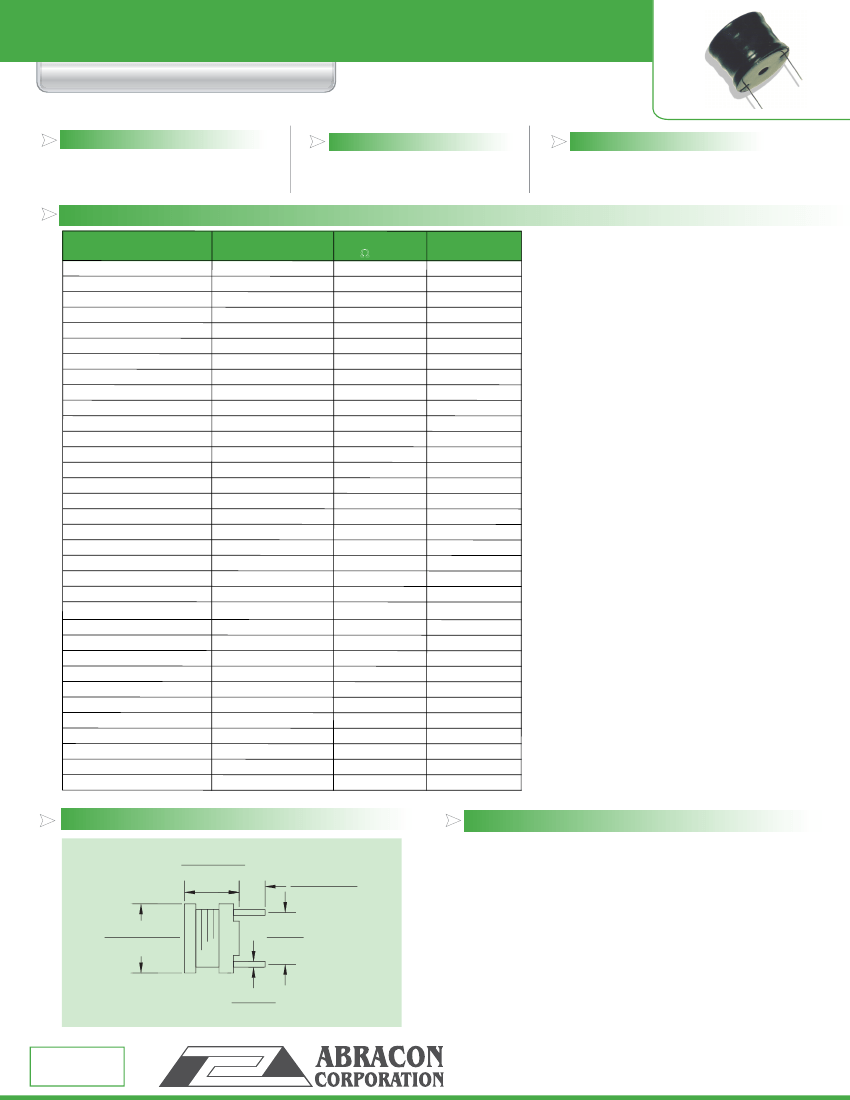

THRU-HOLE POWER INDUCTORS

AIUR-10 SERIES

| | | | | | | | | | | | | | |

FEATURES:

• Ferrite core with heat shrink tube

• High Reliability

STANDARD SPECIFICATIONS

AIUR-10-5R6K

AIUR-10-100K

AIUR-10-120K

AIUR-10-150K

AIUR-10-180K

AIUR-10-220K

AIUR-10-270K

AIUR-10-330K

AIUR-10-390K

AIUR-10-470K

AIUR-10-560K

AIUR-10-680K

AIUR-10-820K

AIUR-10-101K

AIUR-10-121K

AIUR-10-151K

AIUR-10-181K

AIUR-10-221K

AIUR-10-271K

AIUR-10-331K

AIUR-10-391K

AIUR-10-471K

AIUR-10-561K

AIUR-10-681K

AIUR-10-821K

AIUR-10-102K

AIUR-10-122K

AIUR-10-152K

AIUR-10-182K

AIUR-10-222K

AIUR-10-272K

AIUR-10-332K

AIUR-10-392K

AIUR-10-103K

Part Number

Inductance

(µH ± 10%)

OPTIONS:

• Bulk Pack is standard

APPLICATIONS:

• Electronic Appliance

• Noise Filtering

5.6

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

10000

DCR

(Ω max.)

Ω

0.08

0.09

0.10

0.12

0.13

0.14

0.15

0.16

0.23

0.26

0.27

0.31

0.44

0.50

0.58

0.65

0.85

0.99

1.12

1.26

1.68

1.88

2.18

2.71

3.01

3.41

4.00

6.12

6.98

7.97

11.8

13.0

25.0

(A Max)

2.45

2.30

2.00

1.80

1.67

1.59

1.27

1.19

1.16

1.08

1.02

0.86

0.77

0.73

0.59

0.55

0.45

0.41

0.35

0.32

0.28

0.24

0.23

0.21

0.20

0.18

0.17

0.16

0.15

0.14

0.10

PHYSICAL CHARACTERISTICS:

0.30±0.02

7,5±0,50

TECHNICAL INFORMATION:

• Test frequency: 10µH-82µH = 2.52 MHz

100µH-3900µH = 1 KHz

• Tolerance: K=±10%

• Letter suffix indicates standard tolerance

• Temperature: -40°C to +125°C with no load

-40°C to +85°C with full rated current

• Marking: Value and tolerance

• L drops 10% typical @ IDC from initial value

• Check SCD for detail E&M specification

0.20±0.04

5,0±1,0

0.197

5,00

Ø0.32±0.02

Ø8,0±0,5

Ø0.024

Ø0,60

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Dimension: inch/mm

Revised: 09.30.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
