1143AA-752J=P3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 1143AA-752J=P3

1143AA-752J=P3: DescriptionFixed Inductors 7.5mH +/-5%; CategoryPassive components; File Size226KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1143AA-752J=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1143AA-752J=P3	-	-	View	Buy Now

1143AA-752J=P3 Overview

Fixed Inductors 7.5mH +/-5%

1143AA-752J=P3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Inductance	7.5 mH
Tolerance	5 %
Maximum DC Current	-
Maximum DC Resistance	-
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Q Minimum	-
Test Frequency	125 kHz
Termination	-
Mounting Style	PCB Mount
Package / Case	-
Length	8 mm
Width	3 mm
Height	3 mm
Diameter	-
Application	RF
Packaging	Reel
Core Material	-
Product	Fixed Inductors
Self Resonant Frequency	-
Type	Transponder Coils
Lead Diameter	-
Lead Spacing	-
Factory Pack Quantity	1500

Preview

Download Datasheet

View All

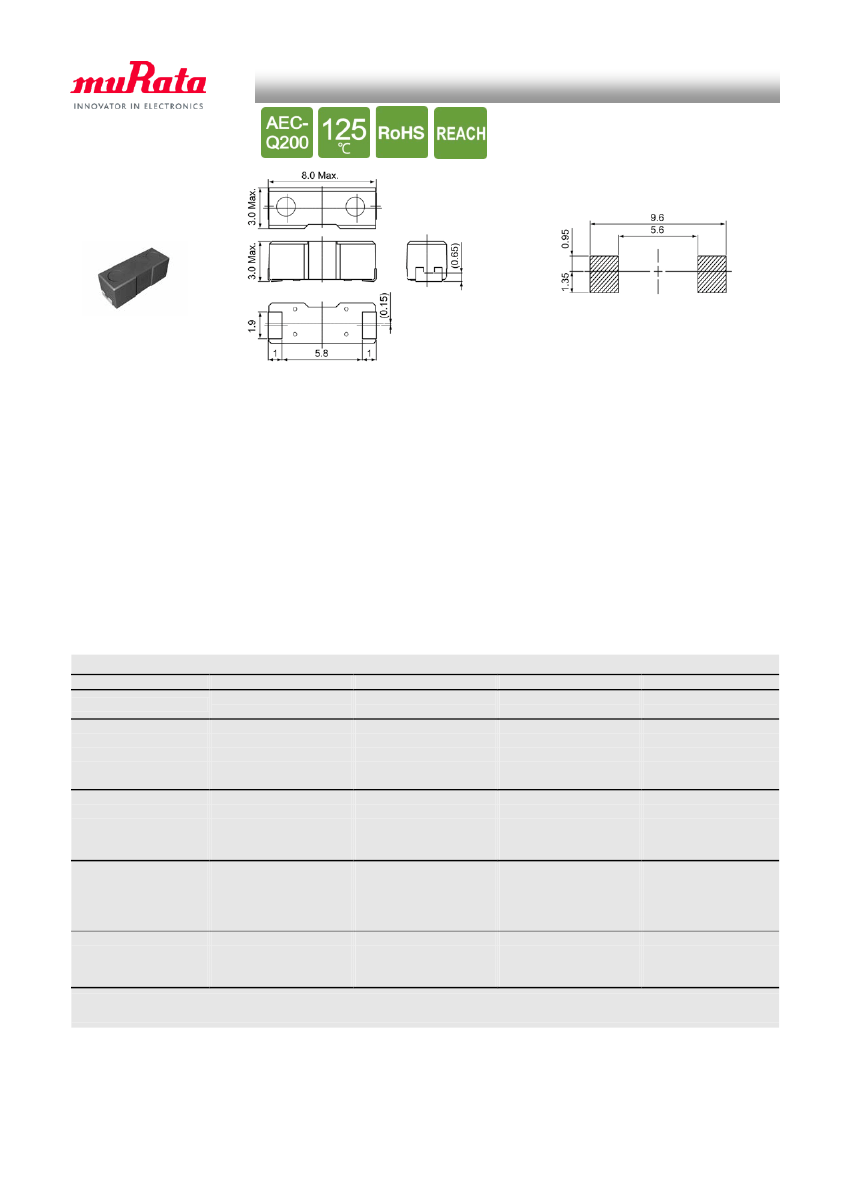

Transponder Coils for Surface Mounting

面実装用トランスポンダコイル

TYPE SA3M08

Recommended patterns

推奨パターン図

(Unit: mm)

Features

特

•

長

車載基準に適合する高信頼性

磁性½と巻線部を樹脂封止した耐衝撃構造

磁性材と電極構造の最適化による高Q½高感度性½

設計自由度が広く、広インダクタンス範囲可½

リフロはんだ付けが可½

AEC-Q200準拠

•

High reliability conforms to automotive applications.

•

Encapsulated core and winding for anti-shock proof.

•

High Q and high sensivility due to optimaized magnetic

material and electrode structure.

•

Wide inductance range for desigh flexibility.

•

Applicable to reflow soldering.

•

AEC-Q200 compliant

Applications

用

途

•

Suitable as a Transponder Antenna Coil for TPMS and

Keyless Entry System. (Vehicle application)

•

Wide operating temperature range (− 40~+125°C)

•

TPMSとリモートキーレスエントリの一½システムのトランス

ポンダ用アンテナコイルに最適（自動車½用等）

•

½用温度範囲：－40 ½ ＋125°C

SELECTION GUIDE FOR STANDARD TRANSFORMERS

TYPE SA3M08

品番

Part Number

1143AA-102J=P3

1143AA-122J=P3

1143AA-152J=P3

1143AA-182J=P3

1143AA-222J=P3

1143AA-272J=P3

1143AA-332J=P3

1143AA-392J=P3

1143AA-472J=P3

1143AA-562J=P3

1143AA-682J=P3

1143AA-722J=P3

1143AA-752J=P3

1143AA-822J=P3

1143AA-952J=P3

1143AA-103J=P3

1143AA-123J=P3

1143AA-153J=P3

1143AA-183J=P3

Inductance range

インダクタンス範囲

インダクタンス

Inductance

L (mH)

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

7.2

7.5

8.2

9.5

：1.0 ½18

(mH)

測定周波数

Test Frequency

(kHz)

125

許容差

Tolerance

(%)

±5

Unloaded Q

Min.

If you are looking for inductance other than the above, please contact us.

上記以外のインダクタンスの御対応もお受けしております。

Item of Test Frequency 134.2kHz also available, please contact us.

測定周波数134.2kHzの品番もございます。別途お問い合わせください。

1143AA-752J=P3 Related Products

	1143AA-752J=P3	1143AA-153J=P3	1143AA-183J=P3	1143AA-392J=P3	1143AA-682J=P3	1143AA-272J=P3	1143AA-562J=P3	1143AA-822J=P3	1143AA-123J=P3
Description	Fixed Inductors 7.5mH +/-5%	Fixed Inductors 15mH Q=35 +/-5%	Fixed Inductors 18mH Q=35 +/-5%	Fixed Inductors 3.9mH Q=35 +/-5%	Fixed Inductors 6.8mH Q=35 +/-5%	Fixed Inductors 2.7mH Q=30 +/-5%	Fixed Inductors 5.6mH Q=30 +/-5%	Fixed Inductors 8.2mH Q=30 +/-5%	Fixed Inductors 12mH Q=35 +/-5%
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Murata	Murata	Murata	Murata	Murata	Murata	Murata	Murata	Murata
Product Category	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Inductance	7.5 mH	15 mH	18 mH	3.9 mH	6.8 mH	2.7 mH	5.6 mH	8.2 mH	12 mH
Tolerance	5 %	5 %	5 %	5 %	5 %	5 %	5 %	5 %	5 %
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Q Minimum	-	35	35	35	35	30	30	30	35
Test Frequency	125 kHz	125 kHz	125 kHz	125 kHz	125 kHz	125 kHz	125 kHz	125 kHz	125 kHz
Mounting Style	PCB Mount	SMD/SMT	SMD/SMT	SMD/SMT	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Length	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Width	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Height	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Product	Fixed Inductors	RF Inductors	RF Inductors	RF Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors
Type	Transponder Coils	Transponder Coils	Transponder Coils	Transponder Coils	Transponder Coils	Transponder Coils	Transponder Coils	Transponder Coils	Transponder Coils
Factory Pack Quantity	1500	1500	1500	1500	1500	1500	1500	1500	1500
Application	RF	-	-	-	RF	RF	RF	RF	RF
