LFSPXO069922Bulk datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO069922Bulk

LFSPXO069922Bulk: DescriptionStandard Clock Oscillators 125MHz 2.5V 25ppm -40C +85C; CategoryPassive components; File Size797KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO069922Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO069922Bulk	-	-	View	Buy Now

LFSPXO069922Bulk Overview

Standard Clock Oscillators 125MHz 2.5V 25ppm -40C +85C

LFSPXO069922Bulk Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Standard Clock Oscillators
RoHS	Details
Frequency	125 MHz
Frequency Stability	25 PPM
Operating Supply Voltage	2.5 V
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Bulk
Type	Crystal Oscillator
Factory Pack Quantity	100

Preview

Download Datasheet

View All

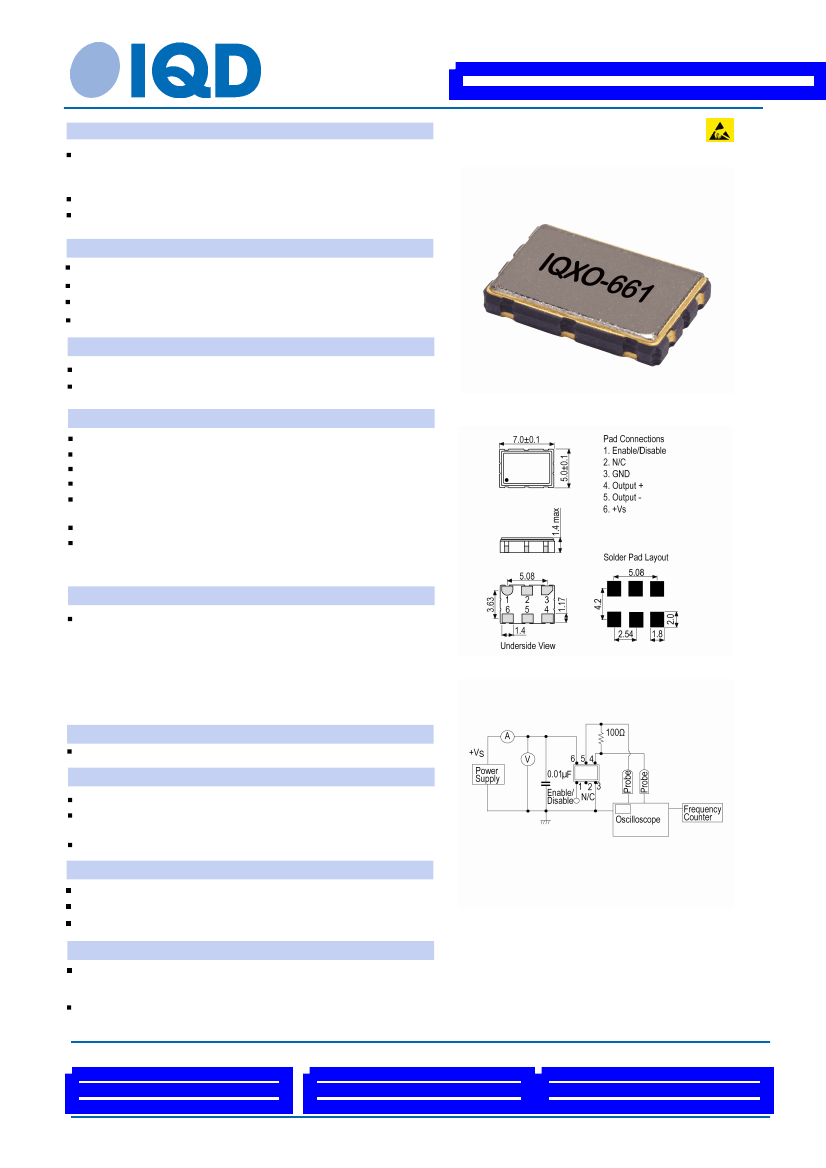

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO069922Bulk

Description

LVDS output crystal oscillator using a high frequency

fundamental crystal to give very low jitter. Hermetically sealed

ceramic package with a seam sealed metal lid.

Model

IQXO-661

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

125.0MHz

±25.00ppm

-40.00 to 85.00°C

±3ppm max per year at 25°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

50.00mA

Outline (mm)

LVDS

Output Compatability

Drive Capability

100Ω

0.5ns max

Rise & Fall Time (20 - 80%)

45/55%

Duty Cycle

Differential Output Voltage (VoD): 0.247V min, 0.330V typ,

0.454V max.

Offset Voltage (VOS): 1.125V min, 1.250V typ, 1.375V max.

Output Voltage Levels:

Output Low (VoL): 0.9V min

Output High (VoH): 1.6V max

Output Control

Enable/Disable:

Logic ‘1’ (≥70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (≤30% Vs) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state.

No connection to pad 1 enables oscillator output.

Standby Current: 10µA max

Noise Parameters

Test Circuit

Phase Jitter (12kHz to 20MHz): 1ps rms max

Environmental Parameters

Storage Temperature Range: -55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E: 1000G,

0.5ms, half sine wave.

Vibration: MIL-STD-883, Method 2007, Condition A: 20G

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 3 Oct 16 17:14 using Part Data Sheet V1.00014
