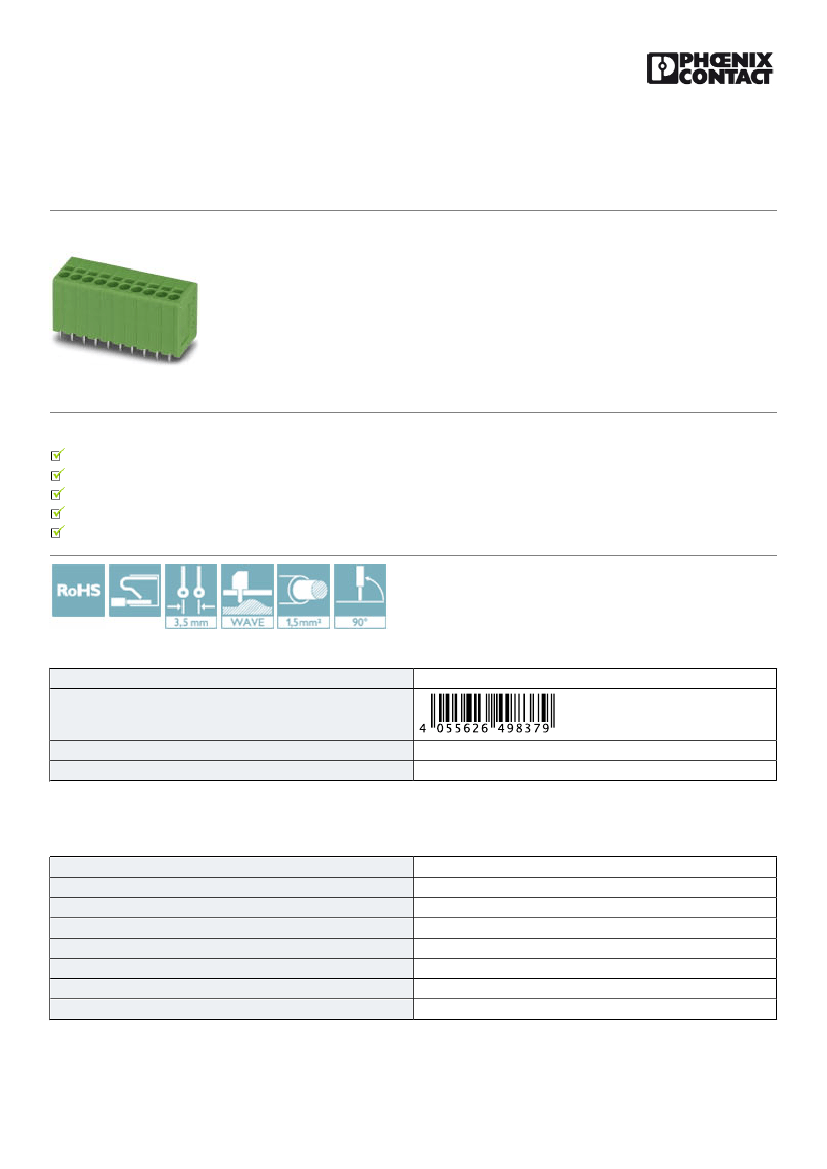

SPT 1,5/ 6-V-3,5 BD:24V-GNDQ - 1016915
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nom. voltage: 200 V, pitch: 3.5 mm, number of positions: 6, connection method: Push-in
spring connection, mounting: Wave soldering, color: green
The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626498379
85369010
1
Technical data
Item properties
Brief article description
Range of articles
Pitch
Number of positions
Connection method
Mounting type
Pin layout
Number of levels
PCB terminal block
SPT 1,5/..-V
3.5 mm
6
Push-in spring connection
Wave soldering
Linear double pinning
1
Electrical parameters
01/03/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1016915
SPT 1,5/ 6-V-3,5 BD:24V-GNDQ - 1016915
Technical data
Electrical parameters
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
17.5 A
200 V
2.5 kV
Connection capacity
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG / kcmil
Conductor cross section flexible, with ferrule without plastic sleeve
Conductor cross section, flexible, with ferrule, with plastic sleeve
Stripping length
0.2 mm² ... 1.5 mm²
0.2 mm² ... 1.5 mm²
24 ... 16
0.25 mm² ... 1.5 mm² (Stripping length 8 mm)
0.25 mm² ... 0.75 mm² (Stripping length 8 mm)
10 mm
Material data - contact
Note
Contact material
Surface characteristics
Metal surface terminal point (top layer)
Metal surface soldering area (top layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
hot-dip tin-plated
Tin (4 - 8 µm Sn)
Tin (4 - 8 µm Sn)
Material data - housing
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
PA
I
600
V0
850
775
125 °C
Dimensions for the product
Caption
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Height (without solder pin)
Solder pin [P]
Pin spacing
Pin dimensions
Dimension a
Schematic representation – for additional information, see product range
drawing in the Download Center
13.5 mm
22.4 mm
16.9 mm
3.5 mm
14.4 mm
2.5 mm
8.2 mm
0.8 x 0.8 mm
17.5 mm
Dimensions for PCB design
Hole diameter
1.1 mm
01/03/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1016915
SPT 1,5/ 6-V-3,5 BD:24V-GNDQ - 1016915
Technical data
Dimensions for PCB design
Pin spacing
8.2 mm
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C
Termination and connection method
Pull-out test
Conductor cross section / conductor type / tensile force
0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Electrical tests
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
17.5 A
200 V
2.5 kV
Air clearances and creepage distances
Insulating material group
Rated insulation voltage (III/3)
Rated insulation voltage (III/2)
Rated insulation voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
I
160 V
200 V
400 V
2.5 kV
2.5 kV
2.5 kV
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27261100
27261100
27440401
27440401
01/03/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/1016915
SPT 1,5/ 6-V-3,5 BD:24V-GNDQ - 1016915
Classifications
eCl@ss
eCl@ss 9.0
27440401
ETIM
ETIM 5.0
ETIM 6.0
EC002643
EC002643
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/03/2019 Page 4 / 4
