Microwave Ceramics Filters
Series/Type:
D201
The following products presented in this data sheet are being withdrawn.
Ordering Code
B69812N2457D201
Substitute Product
CF61B1701-2450-100
Date of Withdrawal
2012-04-27
Deadline Last
Orders
2012-07-31
Last Shipments
2012-10-31
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
Microwave Ceramics Filter
2-pole filter for WLAN
Data sheet
Modification
A
B
C
D
B69812N2457D201
S2I1/3/1
Package drawing
Component drawing, marking
Upgraded to new form
08.07.03
14.03.07
08.10.07
11.12.09
Stadler
Reichel
Reichel
Reichel
Features
SMD filter consisting of coupled resonators with stepped impedances
extreme low losses
High attenuations at GSM (900, 1800) and UMTS bands
High attenuation at 2 times center frequency
(NdBa)TiO3 (εr = 88/TCf = 0 ±10 ppm/K) with a coating of copper (10
µm)
and tin (>5
µm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
ESD insensitivity and ESD protecting due to filter characteristics
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 8
2009-12-11
Microwave Ceramics Filter
2-pole filter for WLAN
Data sheet

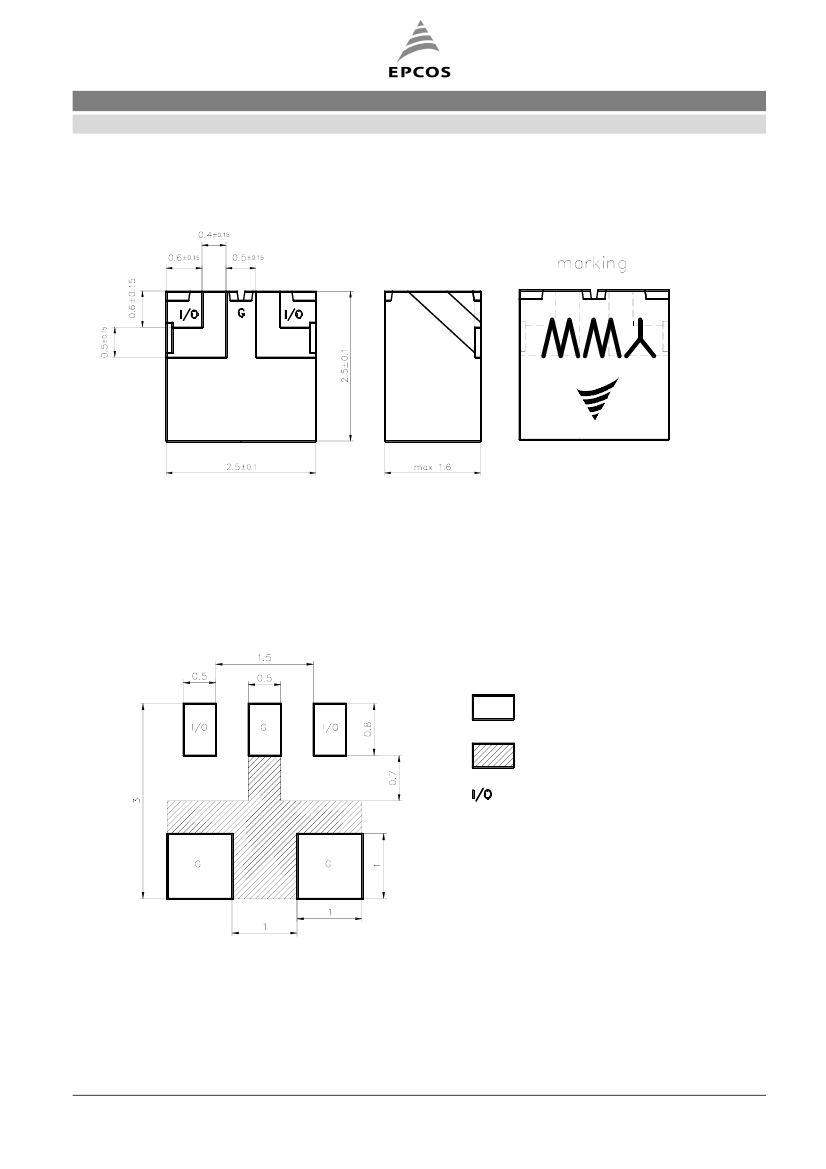

Dimension limits, marking
B69812N2457D201
S2I1/3/1
Y= calendar year
WW = calendar week
e.g.: 740= calendar year 2007,
calendar week 40
View from below onto the solder terminals and view from beside
Recommended footprint
solder pads
ground area below solder resist
with vias to second ground layer
connected to lines with an
impedance of 50 Ohm
Standard
condition
FR4 material
permitivity : 4.4
preferred thickness : 0.3
Vias: Ø0.3mm / mm²
For other thickness
correlation might be necessary
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 8
2009-12-11
Microwave Ceramics Filter
2-pole filter for WLAN
Data sheet
Characteristics
min.
Center frequency
Insertion loss
Passband (2400 … 2500 MHz)
Amplitude ripple (peak – peak)
Standing wave ratio
Impedance
Attenuation
at DC to 880 MHz
at 880 to 960 MHz
at 960 to 1990 MHz
at 1990 to 2100 MHz
at 2100 to 2170 MHz
at 3000 to 3200 MHz
at 3200 to 3500 MHz
at 3500 to 4800 MHz
at 4800 to 5000 MHz
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
Typical passband characteristic
0
B69812N2457D201
S2I1/3/1
typ.
2.450
0.8
max.
–
1.0
GHz
dB
MHz
α
IL
fc –
B 100
∆α
SWR
Z
α
50
45
40
25
20
15
20
25
23
0.4
1.5
50
55
50
45
30
25
20
25
30
27
0.8
2.0
dB
Ω
dB
dB
dB
dB
dB
dB
dB
dB
dB
–40 °C/+90 °C/56
Top –40/+85
°C
-5
-10
-15
attenuation [dB]
-20
S21 [dB]
S11 [dB]
-25
-30
-35
-40
-45
-50
2,1
2,15
2,2
2,25
2,3
2,35
frequency [GHz]
2,4
2,45
2,5
2,55
2,6
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 8
2009-12-11
Microwave Ceramics Filter
2-pole filter for WLAN
Data sheet
Processing information
Wettability acc. to IEC 68-2-58:
≥75%
(after aging)
Soldering requirements
Profile for eutectic
SnPb solder paste
Soldering type
reflow
Maximum soldering temperature
235 (max. 2 sec.)
(measuring point on top surface of the component) 225 (max. 10 sec.)
Recommended soldering conditions (infrared):
Temp. [°C]
250
215°C±10°C
200
150
100
50
within 10 sec.
B69812N2457D201
S2I1/3/1
Profile for leadfree
solder paste
reflow
260 (max. 2 sec.) °C
250 (max. 10 sec.) °C
Temp. [°C]
250
within 10 sec.
245°C±5°C
200
150
100
50
20-40 sec.
40-80 sec.
Time [sec.]
30 sec.
2.5 °C/s
2-3 min.
Time [sec.]
> - 5 °C/s
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 8
2009-12-11
