LFSPXO072131Reel datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO072131Reel

LFSPXO072131Reel: DescriptionStandard Clock Oscillators 8.0MHz AEC-Q200 2.0 x 1.6 x 0.8mm; CategoryPassive components; File Size173KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO072131Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO072131Reel	-	-	View	Buy Now

LFSPXO072131Reel Overview

Standard Clock Oscillators 8.0MHz AEC-Q200 2.0 x 1.6 x 0.8mm

LFSPXO072131Reel Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Standard Clock Oscillators
RoHS	Details
Frequency	8 MHz
Frequency Stability	100 PPM
Load Capacitance	15 pF
Operating Supply Voltage	3.3 V
Output Format	CMOS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	2 mm
Width	1.6 mm
Height	0.8 mm
Qualification	AEC-Q200
Packaging	Reel
Current Rating	5 mA
Type	Crystal Oscillator
Duty Cycle - Max	60 %
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

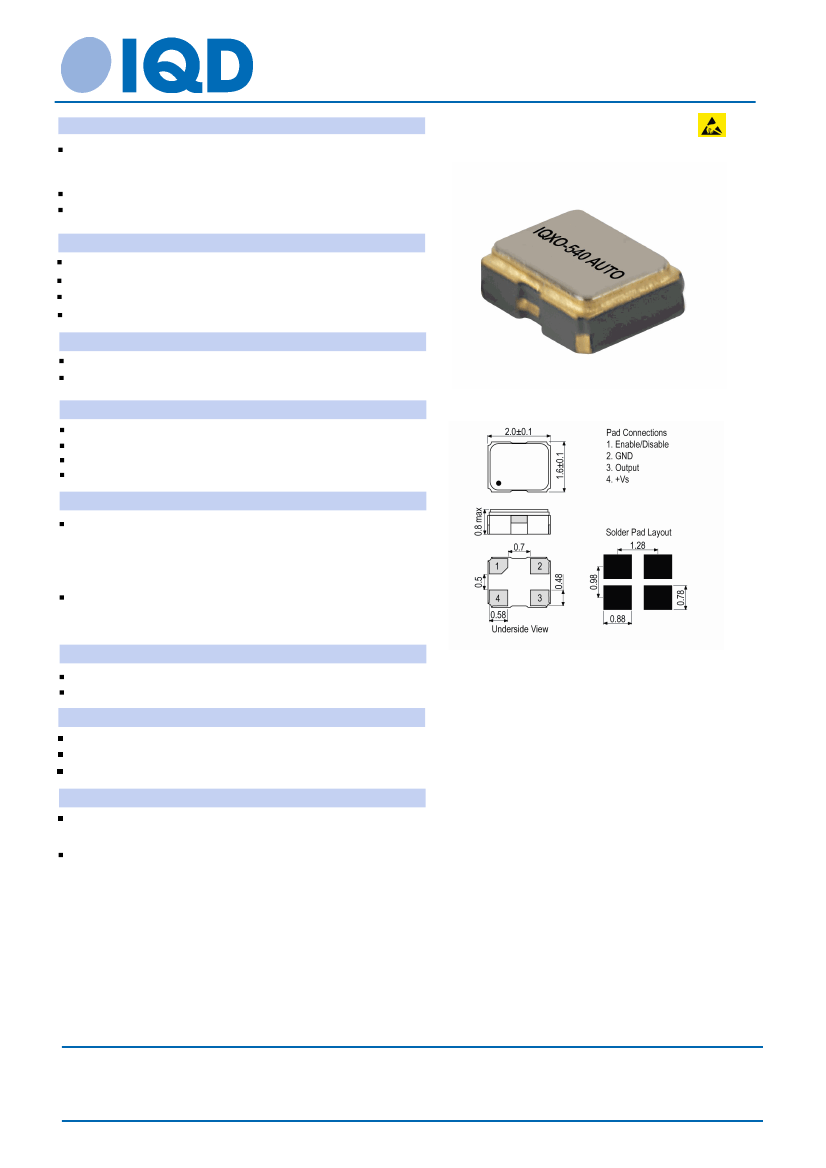

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO072131Reel

Description

Ceramic package with a hermetically seam sealed metal lid

suitable for automotive applications. Qualified to AEC-Q200 and

with TS16949 release.

Model

IQXO-540 AUTO

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

8.0MHz

100.00ppm

-40.00 to 85.00°C

±5ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±10%

5.00mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF

5.0ns max

40/60%

Enable/Disable Operation:

Logic ‘1’ (>70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (<30% Vs) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state.

No connection to pad 1 enables oscillator output.

Standby Current:

-40 to 85°C: 10µA max

-40 to 125°C: 20µA max

Environmental Parameters

Storage Temperature Range: -55 to 125°C

Qualified to AEC-Q200

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 9 May 16 12:24 using Part Data Sheet V1.00014
