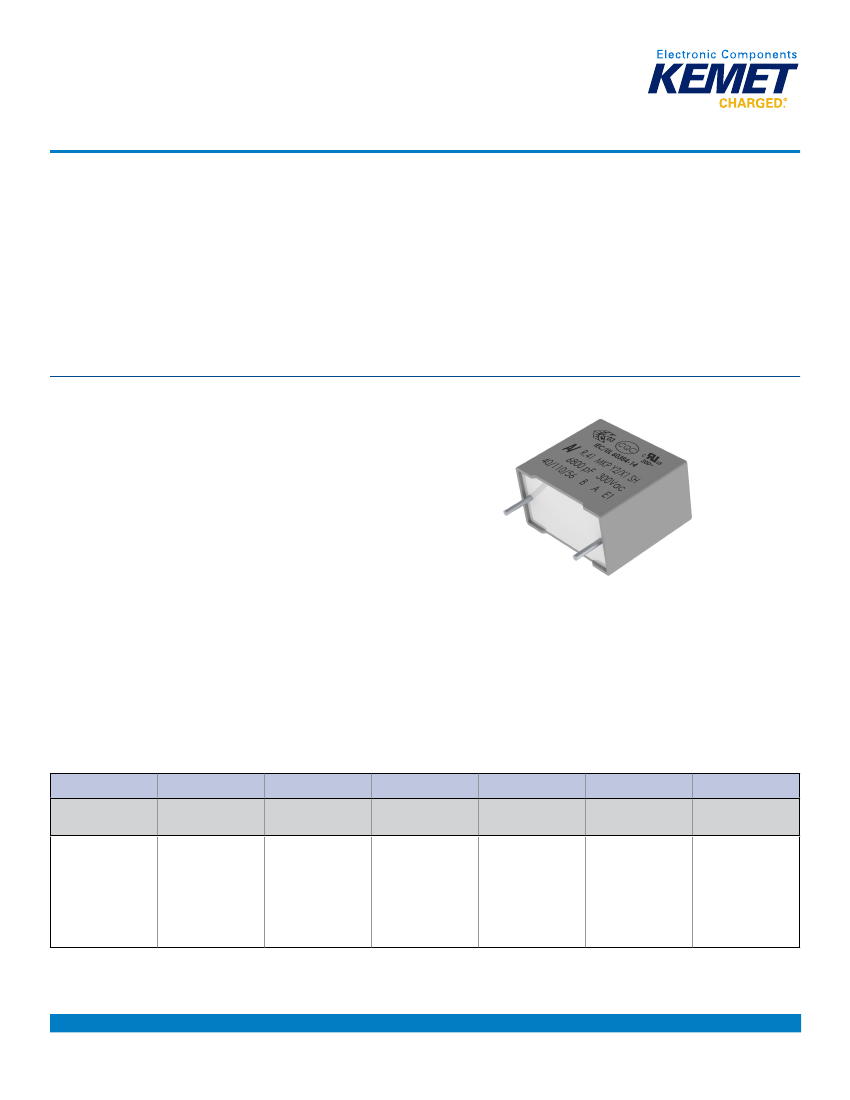

Metallized Polypropylene Film EMI Suppression Capacitors
R41, Class Y2, 300 VAC, 110°C
(Automotive Grade)
Overview
Applications
For use in electromagnetic interference (EMI) suppression
filter in "line-to-ground" and "across-the-line" applications
requiring Y2/X1 safety classification. Suitable for use in
situations where failure of the capacitor could lead to danger
of electric shock. Not for use in "series with mains" type
applications.
The R41 is constructed of metallized polypropylene film
encapsulated with self-extinguishing resin in a box of
material meeting the requirements of UL 94 V–0.
Automotive Grade devices (up to 22.5 mm Lead Spacing)
meet the demanding Automotive Electronics Council's AEC–
Q200 qualification requirements.
Benefits
• Approvals: ENEC, UL, cUL, CQC
• Class Y2 / X1 (IEC 60384-14)
• Rated voltage: 300 VAC 50/60 Hz
• Capacitance range: 0.001 – 1 µF
• Lead spacing: 10 – 37.5 mm
• Capacitance tolerance: ±20%, ±10%
• Climatic category: 40/110/56, IEC 60068–1
• Tape and reel in accordance with IEC 60286–2
• RoHS Compliant and lead-free terminations
• Operating temperature range of −40˚C to +110˚C
• 100% screening factory test at 5,000 VDC/2,500 VAC
• Self-healing properties
• Automotive (AEC–Q200) grades available up to
22.5 mm Lead Spacing
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
R41
Series
Y2, Metallized
Polypropylene
3
Rated Voltage
(VAC)
3 = 300
I
Lead Spacing
(mm)
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
2330
Capacitance
Code (pF)
The last three
digits represent
significant figures.
The first digit
specifies number
of zeros to be
added.
00
Packaging
See Ordering
Options Table
M1
Internal Use
00
M1
M
Capacitance
Tolerance
K = ±10%
M = ±20%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3100_R41_Y2_300 • 10/16/2017
1
Metallized Polypropylene Film EMI Suppression Capacitors
R41 Series, Class Y2, 300 VAC, 110ºC (Automotive Grade)
Ordering Options Table
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
4 +2/−0
H
0
= 18.5 ±0.5
H
0
= 18.5 ±0.5
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
30 +5/−0
25 +2/−1
00
DQ
CK
JB
JE
JH
JM
40
50
Lead Length
(mm)
Lead and
Packaging Code
10,
15,
22.5
Tape & Reel (Large Reel)
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Tape & Reel (Large Reel)
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
27.5
4 +2/−0
H
0
= 18.5 ±0.5
30 +5/−0
25 +2/−1
00
CK
40
50
4 +2/−0
30 +5/−0
25 +2/−1
00
40
50
37.5
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3100_R41_Y2_300 • 10/16/2017
2
Metallized Polypropylene Film EMI Suppression Capacitors
R41 Series, Class Y2, 300 VAC, 110ºC (Automotive Grade)
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
p
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
37.5
37.5
37.5
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
4.0
5.0
6.0
5.0
6.0
7.5
8.5
11.0
6.0
7.0
8.5
10.0
13.0
13.0
14.0
18.0
13.0
16.0
20.0
B
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.3
+0.3
+0.3
9.0
11.0
12.0
11.0
12.0
13.5
14.5
19.0
15.0
16.0
17.0
18.5
22.0
22.0
28.0
33.0
24.0
28.5
40.0
H
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
41.5
41.5
41.5
L
+0.2
+0.2
+0.2
+0.3
+0.3
+0.5
+0.5
+0.5
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
d
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3100_R41_Y2_300 • 10/16/2017
3
Metallized Polypropylene Film EMI Suppression Capacitors
R41 Series, Class Y2, 300 VAC, 110ºC (Automotive Grade)
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related documents
Rated Voltage (V
R
)
Capacitance Range
Capacitance Values
Capacitance Tolerance
Temperature Range
Climatic Category
Polypropylene film
Metal layer deposited by evaporation under vacuum
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384-14, EN 60384-14
300 VAC (50/60 Hz), 1,000 VDC
0.0010 to 1 µF
E6 series (IEC 60063)
±10%, ±20%
−40°C to +110°C
40/110/56 IEC 60068-1
Storage time: ≤ 24 months from the date marked on the label package
Average relative humidity per year ≤ 70%
Storage Conditions
RH ≤ 85% for 30 days randomly distributed throughout the year
Dew is absent
Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below)
Approvals
ENEC, UL, cUL, CQC
Maximum Humidity in Storage Conditions
100
90
80
70
60
50
40
30
20
10
0
−40
Relative Humidity (%)
30 Days
Annual Average
−20
0
20
40
60
80
Temperature (ºC)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3100_R41_Y2_300 • 10/16/2017
4
Metallized Polypropylene Film EMI Suppression Capacitors
R41 Series, Class Y2, 300 VAC, 110ºC (Automotive Grade)
Performance Characteristics cont'd
Dissipation Factor (tanδ)
Test Voltage Between Terminals
≤ 0.3% (0.2%*) at 1kHz , +25°C ±5°C (* typical value)
The 100% screening factory test is carried out at 5,000 VDC/2,500 VAC. The voltage level is selected to meet
the requirements in applicable equipment standards. All electrical characteristics are checked after the test.
It is not permitted to repeat this test as there is a risk to damage the capacitor. KEMET is not liable in such
case for any failures.
Measured at +25°C ±5°C, according to IEC 60384–2
Insulation Resistance
Minimum Values Between Terminals
Voltage Charge
100 VDC
In DC Applications
* Typical value
Recommended voltage ≤ 1,000 VDC
Voltage Charge Time
1 min
C ≤ 0.33 μF
≥ 1 • 10
5
MΩ
( ≥ 5 • 10
5
MΩ )*
C > 0.33 μF
≥ 30,000 MΩ • µF
( ≥ 150,000 MΩ • µF )*
Qualification
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website at www.aecouncil.com.
