Document 354 -1

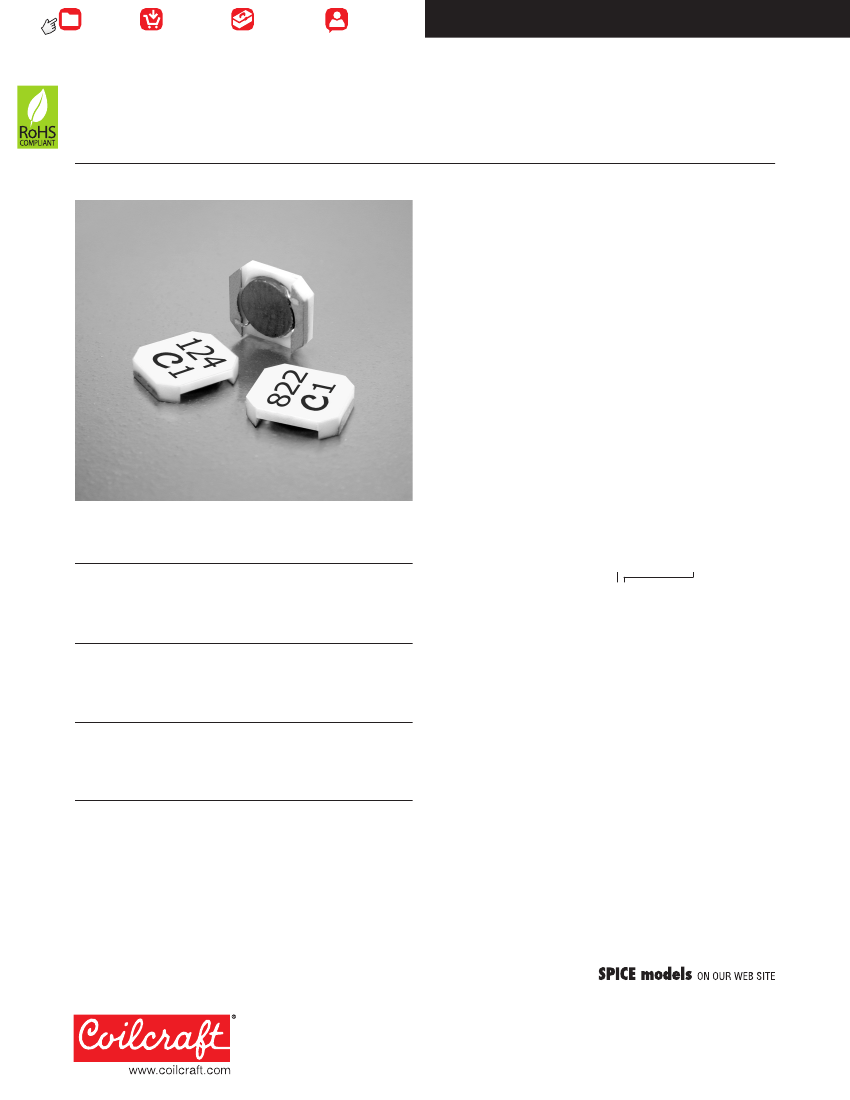

SMT Power Inductors – LPO4815
• Very low profile - only 1.5 mm high!
• Handles current up to 1.9 Amps rms
Designer’s Kit C376
contains 3 each of all values
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
70.0 – 78.5 mg
Ambient temperature
–40°C to +85°C with
Irms
current
Maximum temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.6 mm pocket depth
Recommended pick and place nozzle
OD: 4.6 mm; ID:
≤
2.3 mm
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
LPO4815-102ML_
LPO4815-152ML_
LPO4815-222ML_
LPO4815-332ML_
LPO4815-392ML_
LPO4815-472ML_
LPO4815-682ML_
LPO4815-822ML_
LPO4815-103KL_
LPO4815-123KL_
LPO4815-153KL_
LPO4815-223KL_
LPO4815-333KL_
LPO4815-393KL_
LPO4815-473KL_
LPO4815-683KL_
LPO4815-104KL_
LPO4815-154KL_
LPO4815-224KL_
Inductance
2
(µH)
1.0 ±20%
1.5 ±20%
2.2 ±20%
3.3 ±20%
3.9 ±20%
4.7 ±20%
6.8 ±20%
8.2 ±20%
10 ±10%
12 ±10%
15 ±10%
22 ±10%
33 ±10%
39 ±10%
47 ±10%
68 ±10%
100 ±10%
150 ±10%
220 ±10%
DCR
3
SRF
4
max
typ
Isat
5
Irms
6
(Ohms) (MHz) (A) (A)
0.036
0.085
0.088
0.12
0.13
0.15
0.18
0.22
0.23
0.31
0.36
0.48
0.71
0.83
1.20
1.40
2.15
3.15
4.30
230
200
150
115
105
95
72
65
60
50
45
35
30
25
25
20
15
12
10
1.6
1.5
1.1
0.90
0.86
0.77
0.65
0.58
0.50
0.45
0.42
0.36
0.28
0.26
0.22
0.20
0.15
0.13
0.11
1.9
1.7
1.5
1.3
1.2
1.1
1.0
0.90
0.85
0.80
0.75
0.70
0.65
0.60
0.55
0.45
0.36
0.30
0.27
1. When ordering, please specify
termination
and
packaging
codes:
LPO4815-224KLC
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (3500 parts per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4191A or equivalent.
5. DC current at which the inductance drops 10% (typ) from its value with-
out current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
This information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 354-1
Revised 11/24/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 354-2
SMT Power Inductors - LPO4815 Series

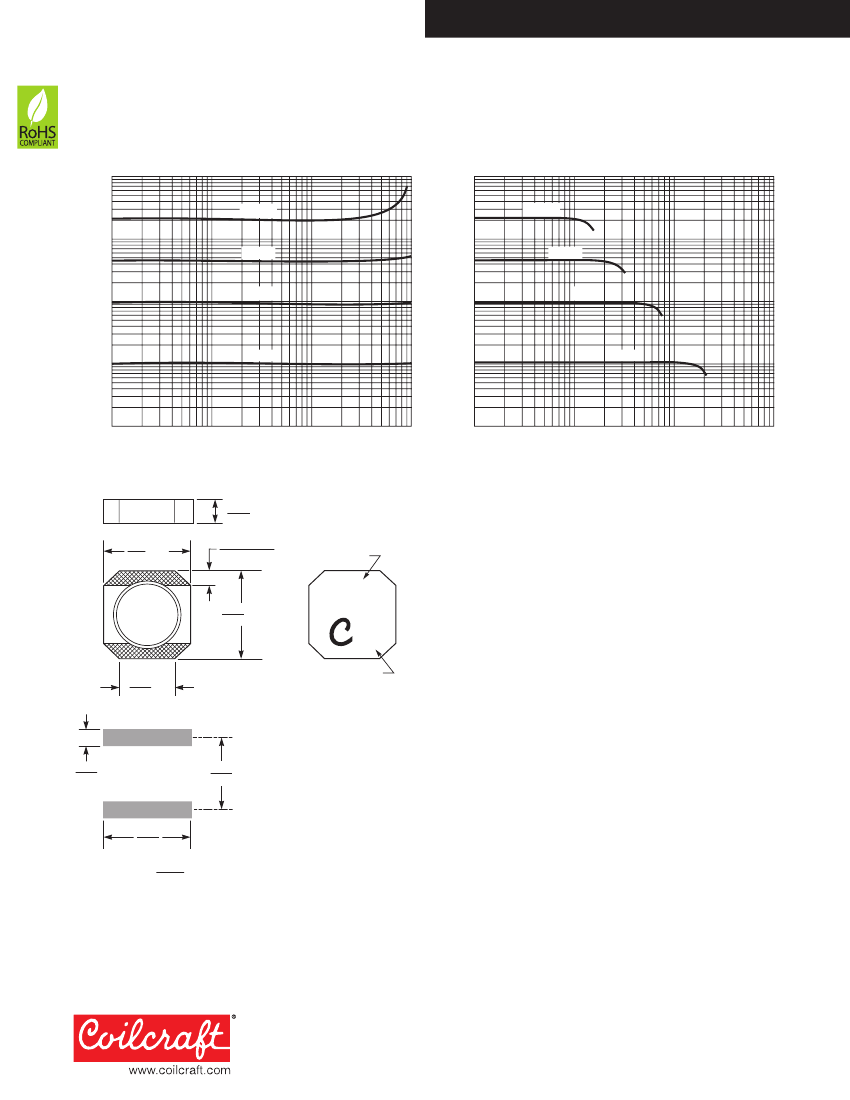

Typical L vs Frequency
1000
220 µH
100
100
Typical L vs Current
1000
220 µH
Inductance (µH)
10
10 µH
Inductance (µH)
47 µH
47 µH
10
10 µH
1
1 µH
1
1 µH
0.1
0.01
0.1
1
10
0.1
0.01
0.1
1
10
Frequency (MHz)
Current (A)
0.059
max
1,5
1.81
max
4,6
0.031 ±0.005
0,787 ±0,127
Dash number
0.190
max
4,83
XXX
X
Internal code
0.107
typ
2,72
0.035
0,89
Recommended
Land Pattern
0.158
4,01
0.181
4,6
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 354-2
Revised 11/24/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
