903-422J-51S2 datasheet, PDF - EEWORLD Datasheet

903-422J-51S2: DescriptionRF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack; CategoryThe connector The connector; File Size156KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

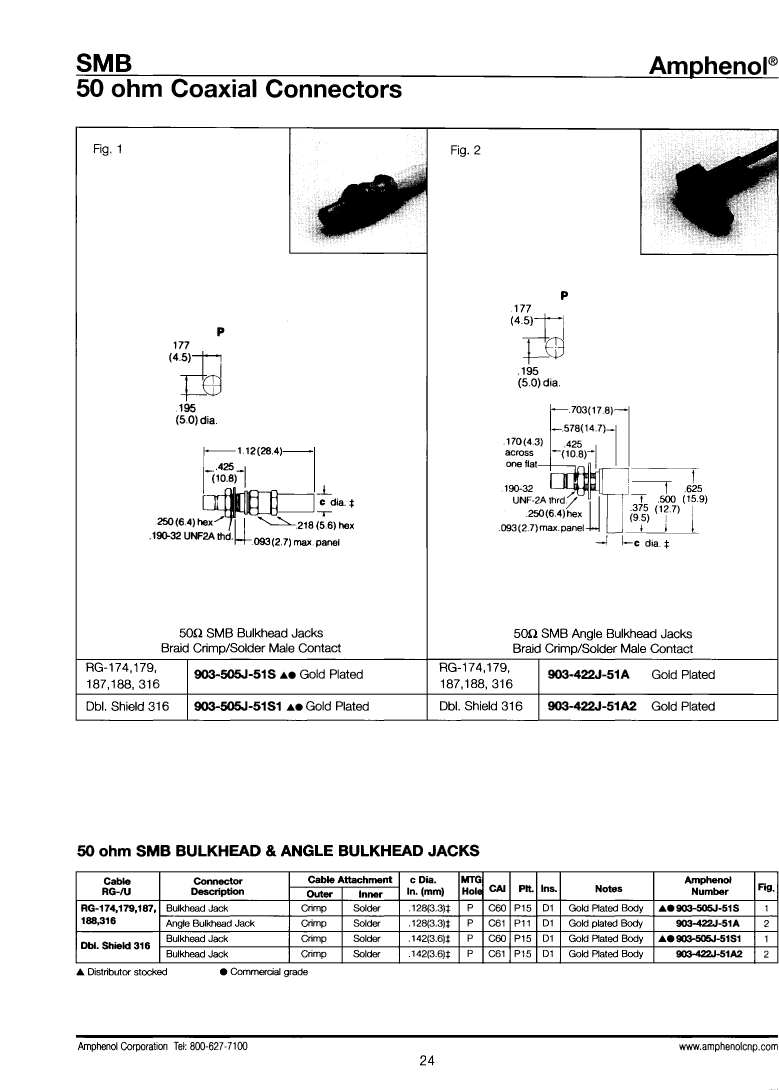

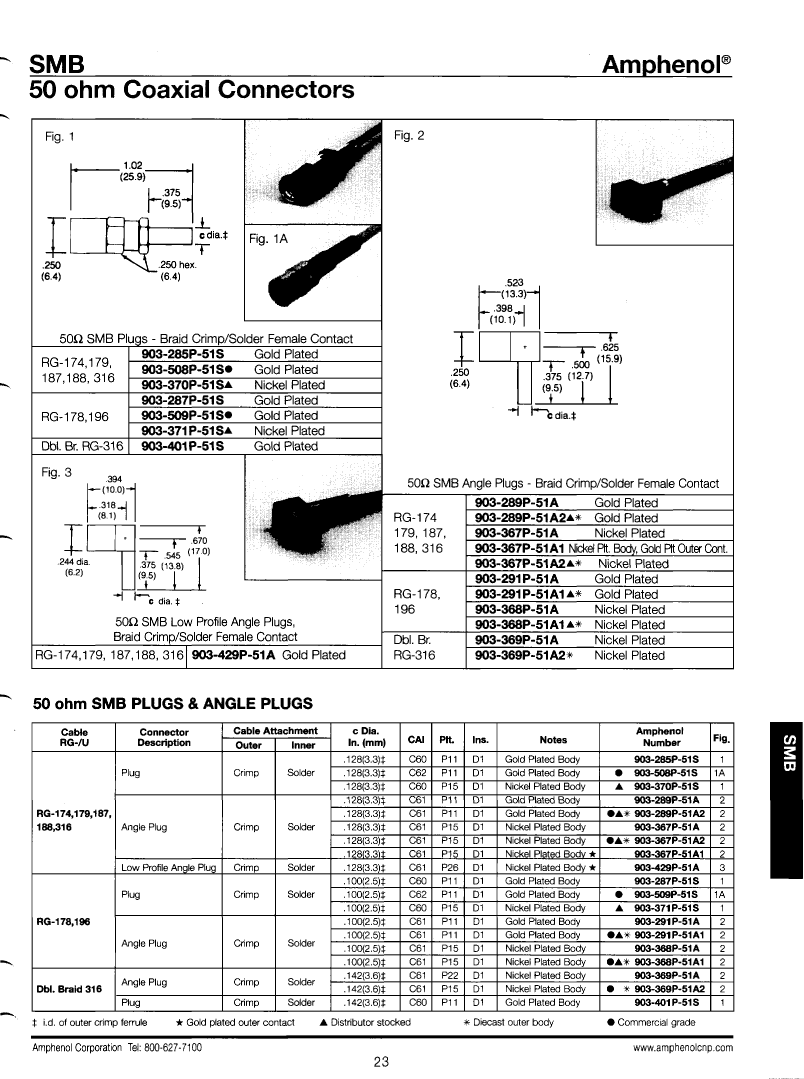

903-422J-51S2 Overview

RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack

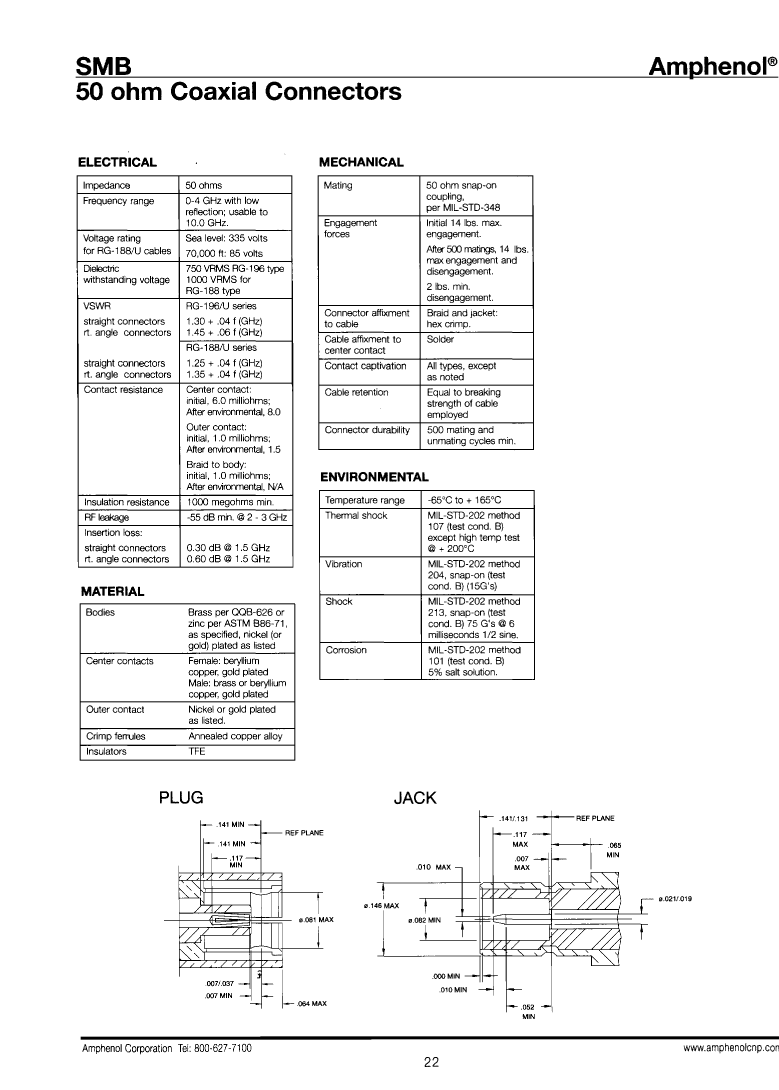

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE:RG 316, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.6 dB
insulator material	TFE
MIL compliance	NO
Manufacturer's serial number	SMB
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.75

	903-422J-51S2	903-422J-51S
Description	RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
Other features	APPLICABLE CABLE:RG 316, INSERTION LOSS MAX AT 1.5 GHZ	APPLICABLE CABLES:RG-174, RG 179, RG 187, RG 188, RG 316, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.6 dB	0.6 dB
insulator material	TFE	TFE
MIL compliance	NO	NO
Manufacturer's serial number	SMB	SMB
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE
Maximum operating frequency	10 GHz	10 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
Termination type	CRIMP SOLDER	CRIMP SOLDER
voltage standing wave ratio	1.75	1.75
