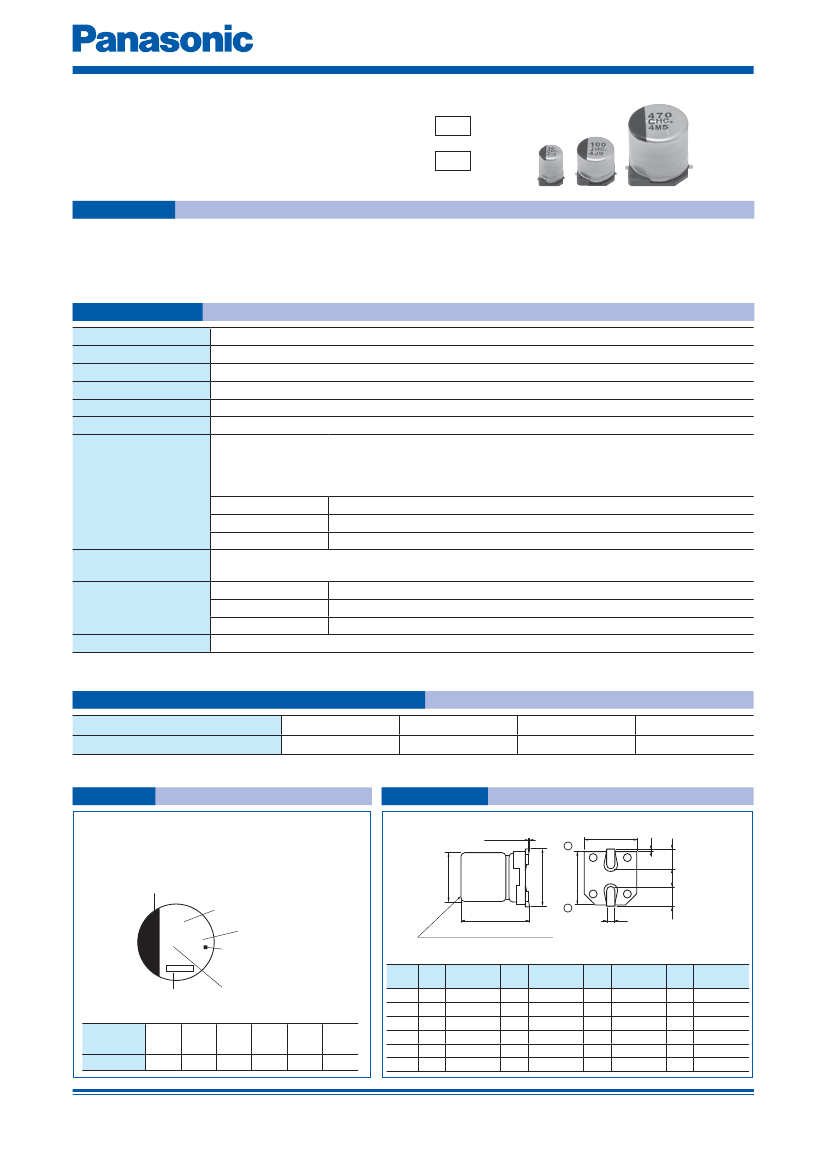

Aluminum Electrolytic Capacitors (SMD Type)
Surface Mount Type
Series :
HC
Type :
V
Features
: 105 °C 3000 h to 5000 h
●
Vibration-proof product is available upon request. (08 mm and larger)
●
RoHS compliant
●
Endurance
Long life
HC
HB
↑
Specifications
Category temperature range
Rated voltage range
Capacitance range
Capacitance tolerance
Leakage current
Dissipation factor (tan
d)
–40 °C to +105 °C
6.3 V.DC to 50 V.DC
1 µF to 1000 µF
±20 % (120 Hz/+20 °C)
I
<
0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)
Please see the attached characteristics list
After applying rated working voltage for +105 °C±2 °C and then being stabilized at +20 °C,
Capacitors shall meet the following limits.
04
to
06.3
(3000 hours After applying rated working voltage)
08
to
010
(5000 hours After applying rated working voltage)
Capacitance change Within ±30 % of the initial value
tan
d
<
300 % of the initial limit
DC leakage current Within the initial limit
After storage for 1000 hours at +105 °C ±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
Capacitance change Within ±10 % of the initial value
tan
d
Within the initial limit
DC leakage current Within the initial limit
AEC-Q200 compliant
Endurance
Shelf life
Resistance to
soldering heat
AEC-Q200
Frequency correction factor for ripple current
Frequency (Hz)
Correction factor
50, 60
0.70
120
1.00
1k
1.30
10 k to
1.70
Marking
Example : 6.3 V.DC 22 µF
Marking color : BLACK
Dimensions
–
B±0.2
H
(I)
(I)
( ) Reference size
(Unit : mm)
(P)
W
K
0.3 max.
0D±0.5
A±0.2
Negative polarity
marking (–)
22
j HC
Lot number
Capacitance (µF)
Series identification
Mark for Lead-Free
products
(Black dot)
Rated voltage code
L
Pressure Relief (010 and larger)
+
R. Voltage
6.3
(V.DC)
Code
j
10
A
16
C
25
E
35
V
50
H
Size
L
A, B
H
code
0D
B
4.0 5.8±0.3 4.3 5.5 max.
C
5.0 5.8±0.3 5.3 6.5 max.
D
6.3 5.8±0.3 6.6 7.8 max.
D8
6.3 7.7±0.3 6.6 7.8 max.
F
8.0 10.2±0.3 8.3 10.0 max.
G 10.0 10.2±0.3 10.3 12.0 max.
I
1.8
2.2
2.6
2.6
3.4
3.5
W
0.65±0.1
0.65±0.1
0.65±0.1
0.65±0.1
0.90±0.2
0.90±0.2
P
1.0
1.5
1.8
1.8
3.1
4.6
K
0.35
+- 0.15
0.20
0.35
+- 0.15
0.20
0.35
+- 0.15
0.20
0.35
+- 0.15
0.20
0.70±0.2
0.70±0.2
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04
Mar. 2016
Aluminum Electrolytic Capacitors (SMD Type)
Characteristics list
Endurance : 105 °C 3000 h (08,
010
: 5000 h)
Case size (mm)
Rated
Cap.
voltage (±20 %)
(V.DC)
(µF)
22
47
100
220
330
1000
33
220
10
22
47
100
470
33
47
100
330
4.7
10
22
33
220
1
2.2
3.3
4.7
10
22
33
47
100
Size
code
Specification
Ripple
tan
d
current
(120 Hz) (120 Hz)
(+105 °C) (+20 °C)
(mA r.m.s.)
26
0.30
46
0.30
71
0.30
101
0.30
230
0.30
313
0.50
43
0.26
160
0.26
28
0.20
39
0.20
70
0.20
81
0.20
340
0.20
65
0.16
65
0.16
130
0.16
238
0.16
15
0.14
28
0.14
55
0.14
57
0.14
220
0.14
10
0.12
16
0.12
16
0.12
23
0.12
35
0.12
49
0.12
91
0.12
100
0.12
160
0.12
Min. Packaging Q'ty
Part No.
Reflow
Taping
(pcs)
2000
1000
1000
900
500
500
1000
500
2000
1000
1000
900
500
1000
900
500
500
2000
1000
1000
900
500
2000
2000
2000
1000
1000
900
500
500
500
0D
4
5
6.3
6.3
8
10
5
8
4
5
6.3
6.3
10
6.3
6.3
8
10
4
5
6.3
6.3
10
4
4
4
5
6.3
6.3
8
8
10
L
6.3
10
16
25
35
50
5.8
5.8
5.8
7.7
10.2
10.2
5.8
10.2
5.8
5.8
5.8
7.7
10.2
5.8
7.7
10.2
10.2
5.8
5.8
5.8
7.7
10.2
5.8
5.8
5.8
5.8
5.8
7.7
10.2
10.2
10.2
B
C
D
D8
F
G
C
F
B
C
D
D8
G
D
D8
F
G
B
C
D
D8
G
B
B
B
C
D
D8
F
F
G
EEEHC0J220R
EEEHC0J470R
EEEHC0J101P
EEEHC0J221XP
EEEHC0J331P
EEEHC0J102P
EEEHC1A330R
EEEHC1A221P
EEEHC1C100R
EEEHC1C220R
EEEHC1C470P
EEEHC1C101XP
EEEHC1C471P
EEEHC1E330P
EEEHC1E470XP
EEEHC1E101P
EEEHC1E331P
EEEHC1V4R7R
EEEHC1V100R
EEEHC1V220P
EEEHC1V330XP
EEEHC1V221P
EEEHC1H1R0R
EEEHC1H2R2R
EEEHC1H3R3R
EEEHC1H4R7R
EEEHC1H100P
EEEHC1H220XP
EEEHC1H330P
EEEHC1H470P
EEEHC1H101P
(1)
(1)
(1)
(1)
(2)
(2)
(1)
(2)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(2)
(2)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(2)
(2)
· Please refer to the page of “Reflow Profile” and “The Taping Dimensions”.
· When requesting vibration-proof product, please put the last “V” instead to “P”
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04
Mar. 2016
