LFSPXO067036Bulk: DescriptionStandard Clock Oscillators 48MHz 1.8V 50ppm -10C +70C; CategoryPassive components oscillator; File Size696KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO067036Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO067036Bulk	-	-	View	Buy Now

LFSPXO067036Bulk Overview

Standard Clock Oscillators 48MHz 1.8V 50ppm -10C +70C

LFSPXO067036Bulk Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	unknown
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	5 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

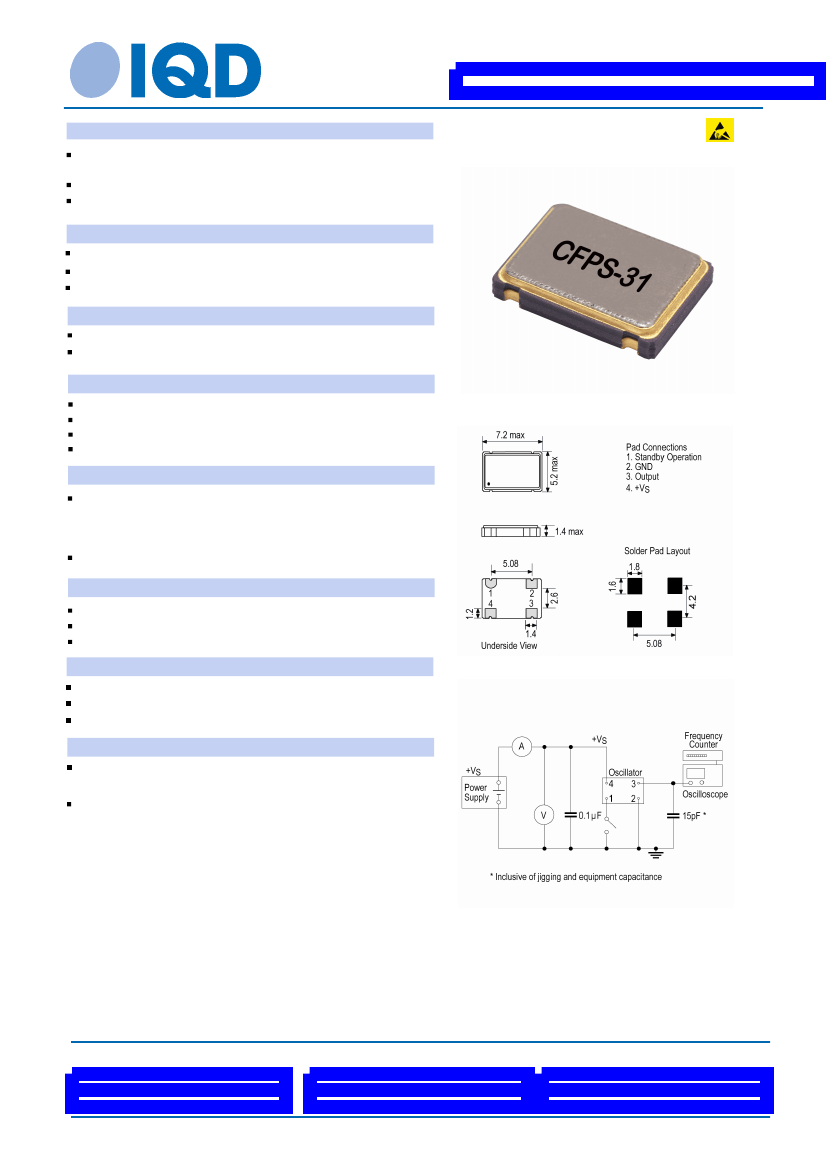

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO067036Bulk

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

CFPS-31

Model Issue number

5

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

48.0MHz

±50.00ppm

-10.00 to 70.00°C

Supply Voltage

Current Draw

Output Details

1.8V ±5%

15.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
