SAW Components
Low-Loss Duplexer for Mobile Communication
Data Sheet
B4063
926,25 / 903,75 MHz
Ceramic package
QCC8D
Features
s
Compact RF duplexer for cordless telephone
ISM
s
No matching network required for operation at
50
Ω
s
Ceramic package for
Surface Mounted
Technology
(SMT)
Terminals
s
Ni , gold-plated
Dimensions in mm, approx. weight 0,037 g
Pin configuration
6
1
3
5, 7
2
4,8
Ant
Tx
Rx
Ant - ground
Tx - ground
Case / Rx - ground
Type
B4063
Ordering code
B39931-B4063-U810
Marking and Package
according to
C61157-A7-A72-X-27
Packing
according to
F61074-V8101-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Input power
T
T
stg
V
DC
P
IN
– 10/+ 55
– 40/+ 85
5
5
˚C
˚C
V
dBm
2
25 Sep 2001
SAW Components
Low-Loss Duplexer for Mobile Communication
Data Sheet
Characteristics Tx - Ant
Operable temperature range
Ant term. impedance
Port 1 term. impedance
Port 2 term. impedance
Center frequency
Maximum insertion attenuation
924,40 ... 928,10 MHz
Amplitude ripple
(p-p)
924,40 ... 928,10 MHz
Absolute attenuation
450,00 ... 906,20 MHz
946,30 ... 970,00 MHz
970,00 ... 3500,00 MHz
B4063
926,25 / 903,75 MHz
T
A
Z
Ant
Z
Port 1
Z
Port 2
=
=
=
=
–10 to 55 ˚C
50
Ω
50
Ω
50
Ω
min.
typ.
926,25
max.
—
MHz
f
c
α
max
—
—
∆α
—
α
30
25
30
3,0
0,4
34
31
39
3,6
1,5
—
—
—
dB
dB
dB
dB
dB
3
25 Sep 2001
SAW Components
Low-Loss Duplexer for Mobile Communication
Data Sheet
Characteristics Rx - Ant
Operable temperature range
Ant term. impedance
Port 1 term. impedance
Port 2 term. impedance
Center frequency
Maximum insertion attenuation
902,40 ... 905,10 MHz
Amplitude ripple
(p-p)
902,40 ... 905,10 MHz
Absolute attenuation
450,00 ... 860,00 MHz
860,00 ... 881,00 MHz
881,00 ... 883,70 MHz
883,70 ... 894,00 MHz
913,10 ... 923,80 MHz
923,80 ... 926,50 MHz
945,20 ... 1600,00 MHz
1600,00 ... 2000,00 MHz
B4063
926,25 / 903,75 MHz
T
A
Z
Ant
Z
Port 1
Z
Port 2
=
=
=
=
–10 to 55 ˚C
50
Ω
50
Ω
50
Ω
min.
typ.
903,75
max.
—
MHz
f
c
α
max
—
—
∆α
—
α
40
35
36
10
5
40
42
30
3,1
0,2
52
42
45
30
18
45
48
35
4,0
1,5
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
4
25 Sep 2001
SAW Components
Low-Loss Duplexer for Mobile Communication
Data Sheet

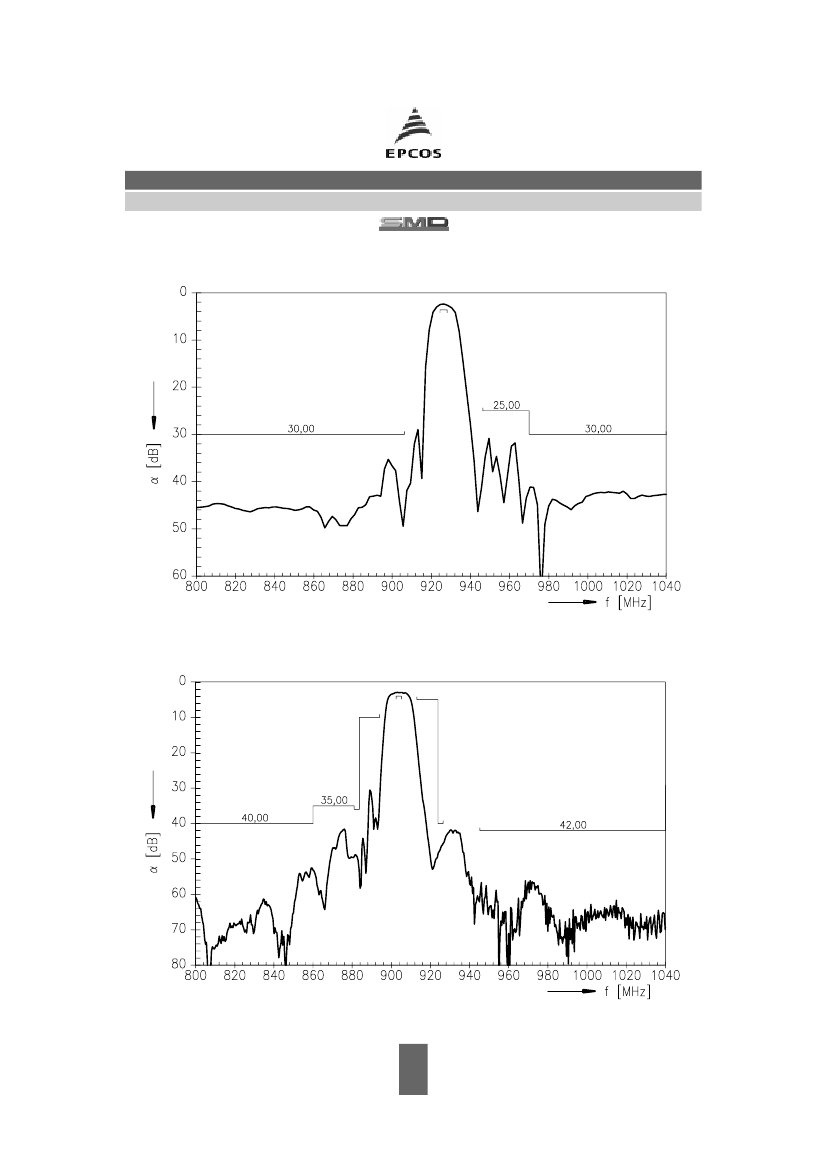

Frequency response Tx :
B4063
926,25 / 903,75 MHz
Frequency response Rx :
5
25 Sep 2001
