3500S-2-104L: DescriptionPrecision Potentiometers 7/8" 100Kohms 0.2% 10turn Wirewound; CategoryPassive components The resistor; File Size183KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3500S-2-104L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3500S-2-104L	-	-	View	Buy Now

3500S-2-104L Overview

Precision Potentiometers 7/8" 100Kohms 0.2% 10turn Wirewound

3500S-2-104L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	Panel Mount,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	41 weeks
structure	Bushing Mount
Manufacturer's serial number	3500
Maximum operating temperature	125 °C
Minimum operating temperature	1 °C
Package diameter	22.23 mm
Package length	25.4 mm
Package form	Panel Mount
Rated power dissipation(P)	2 W
resistance	100000 Ω
Resistor type	POTENTIOMETER
rotation angle	3600 deg
series	3500
technology	WIRE WOUND
Temperature Coefficient	-50,50 ppm/°C
Tolerance	3%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Bushing mount

■

Sealable

■

Non-standard features and speciﬁcations

■

RoHS compliant*

available

■

Optional high torque feature

■

Optional center tap feature

■

Gangable

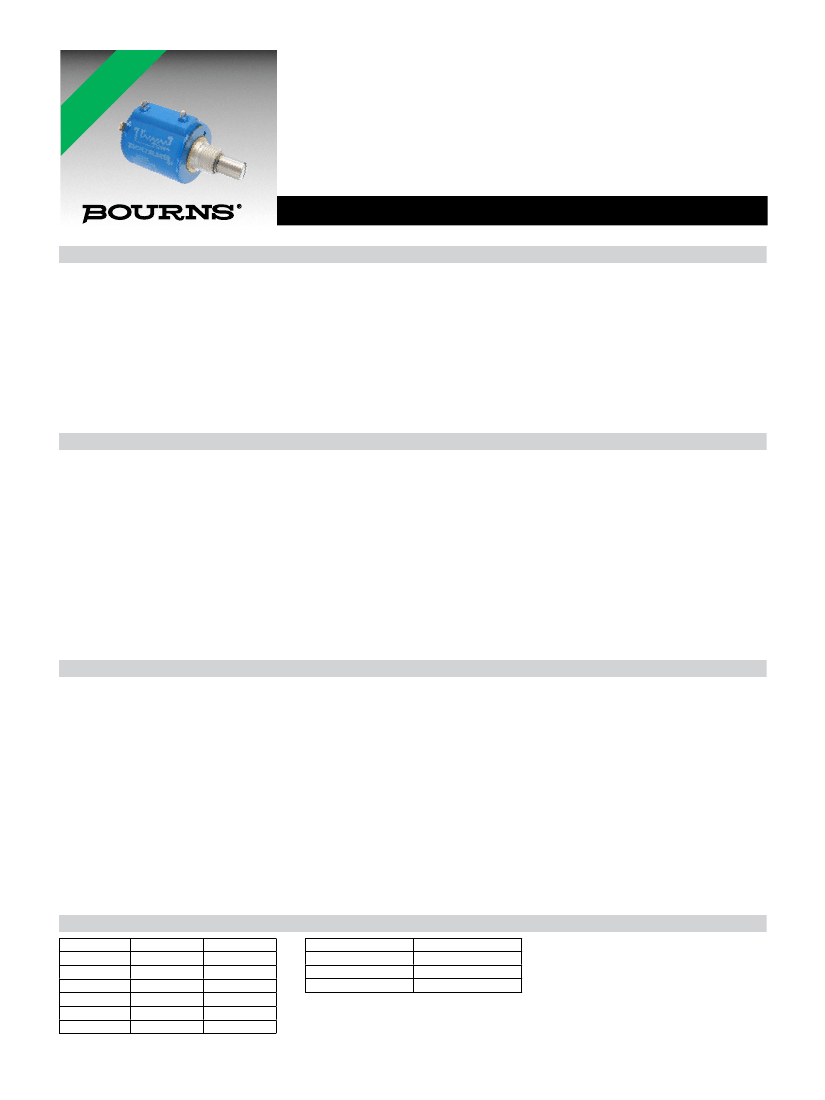

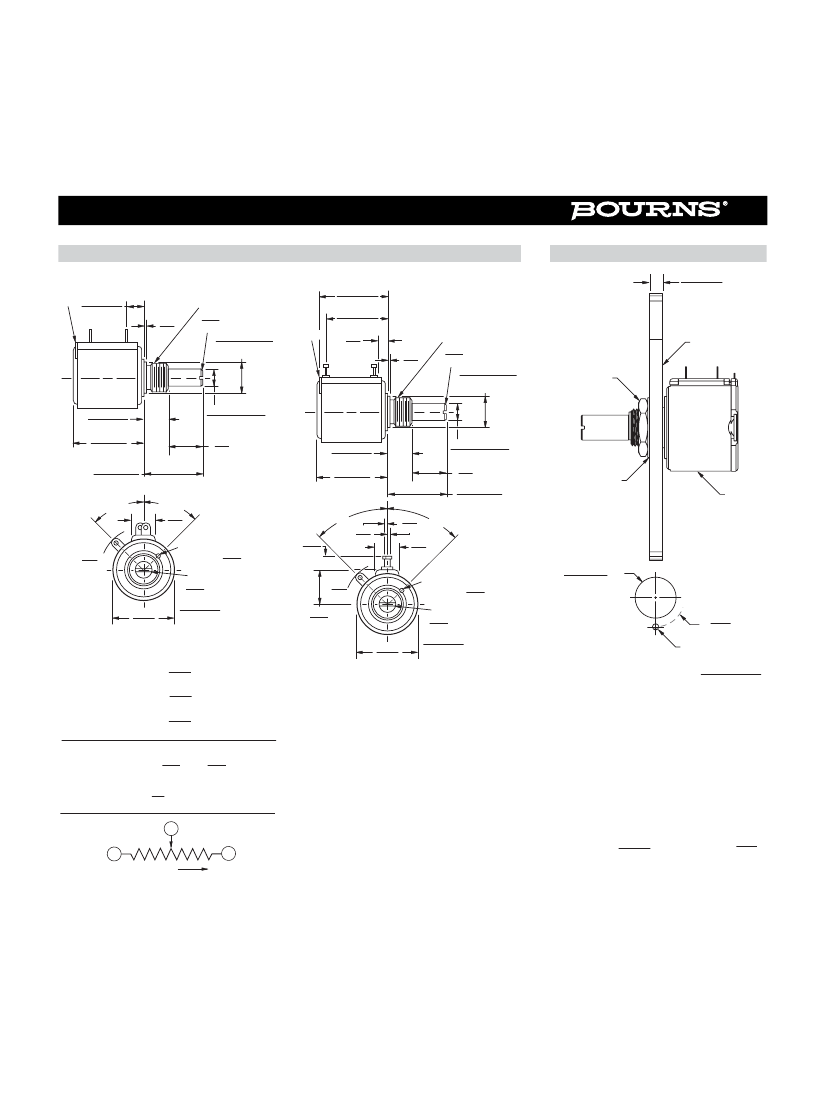

3500/3501 - Precision Potentiometer

Electrical Characteristics

3500 Wirewound Element

3501 Hybritron

Element

Standard Resistance Range.................................................... 50 to 200 K ohms .......................................... 1 K to 200 K ohms

Total Resistance Tolerance...................................................... ±3 % .............................................................. ±10 %

Independent Linearity .............................................................. ±0.20 % ......................................................... ±0.25 %

Effective Electrical Angle ......................................................... 3600 ° +10 °, -0 ° ........................................... 3600 ° +10 °, -2 °

Absolute Minimum Resistance/Minimum Voltage.................... 1 ohm or 0.1 % maximum.............................. 0.2 % maximum

(whichever is greater)

Noise ...................................................................................... 100 ohms ENR maximum.............................. Output smoothness 0.1 % max.

Dielectric Withstanding Voltage (MIL-STD-202, Method 301)

Sea Level ............................................................................. 1,500 VAC minimum ...................................... 1,500 VAC minimum

70,000 Feet ......................................................................... 400 VAC minimum ......................................... 400 VAC minimum

Power Rating (Voltage Limited By Power Dissipation or 325 VAC, Whichever Is Less)

+70 °C.................................................................................. 2 watts ........................................................... 2 watts

+125 °C................................................................................ 0 watt ............................................................. 0 watt

Insulation Resistance (500 VDC) ............................................ 1,000 megohms minimum ............................. 1,000 megohms minimum

Resolution................................................................................ See recommended part nos .......................... Essentially inﬁnite

Environmental Characteristics

Operating Temperature Range ................................................ +1 °C to +125 °C ........................................... +1 °C to +125 °C

Storage Temperature Range ................................................... -65 °C to +125 °C .......................................... -65 °C to +125 °C

Temperature Coefﬁcient Over

Storage Temperature Range

.............................................. ±50 ppm/°C maximum/unit ............................ ±100 ppm/°C maximum/unit

Vibration .................................................................................. 20 G ............................................................... 20 G

Wiper Bounce ...................................................................... 0.1 millisecond maximum .............................. 0.1 millisecond maximum

Total Resistance Shift .......................................................... ±2 % maximum .............................................. ±2 % maximum

Voltage Ratio Shift ............................................................... ±0.1 % maximum ........................................... ±0.1 % maximum

Shock....................................................................................... 100 G ............................................................. 100 G

Wiper Bounce ...................................................................... 0.1 millisecond maximum .............................. 0.1 millisecond maximum

Total Resistance Shift .......................................................... ±2 % maximum .............................................. ±2 % maximum

Voltage Ratio Shift ............................................................... ±0.1 % maximum ........................................... ±0.1 % maximum

Load Life .................................................................................. 1,000 hours, 2 watts ...................................... 1,000 hours, 2 watts

Total Resistance Shift .......................................................... ±2 % maximum .............................................. ±5 % maximum

Rotational Life (No Load)......................................................... 2,000,000 shaft revolutions

.......................... 4,000,000 shaft revolutions

Total Resistance Shift .......................................................... ±5 % maximum .............................................. ±5 % maximum

Moisture Resistance (MIL-STD-202, Method 103, Condition B)

Total Resistance Shift .......................................................... ±2 % maximum .............................................. ±5 % maximum

IP Rating .................................................................................. IP 65 .............................................................. IP 65

Mechanical Characteristics

Stop Strength.......................................................................................................................................................................... 67.8 N-cm (96 oz.-in.) minimum

Mechanical Angle .......................................................................................................................................................................................... 3600 ° +10 °, -0 °

Torque (Starting & Running) ................................................................................................................................................. 0.42 N-cm (0.6 oz.-in.) maximum

Mounting .................................................................................................................................................................. 170-200 N-cm (15-18 lb.-in.) maximum

Shaft Runout..................................................................................................................................................................................... 0.05 mm (0.002 in.) T.I.R.

Lateral Runout .................................................................................................................................................................................. 0.13 mm (0.005 in.) T.I.R.

Shaft End Play .................................................................................................................................................................................. 0.13 mm (0.005 in.) T.I.R.

Shaft Radial Play .............................................................................................................................................................................. 0.08 mm (0.003 in.) T.I.R.

Pilot Diameter Runout ...................................................................................................................................................................... 0.05 mm (0.002 in.) T.I.R.

Backlash ............................................................................................................................................................................................................1.0 ° maximum

Weight ..................................................................................................................................................................................................... Approximately 28 gm

Terminals .................................................................................................................................... Gold-plated solder lugs or turrets (see Product Dimensions)

Soldering Condition

Manual Soldering...........................................................96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire; 370 °C (700 °F) max. for 3 seconds

Wave Soldering .................................................................................. 96.5Sn/3.0Ag/0.5Cu solder with no-clean ﬂux; 260 °C (500 °F) max. for 5 seconds

Wash processes ...................................................................................................................................................................................... Not recommended

Marking .....................................Manufacturer’s name and part number, resistance value and tolerance, linearity tolerance, wiring diagram, and date code.

Ganging (Multiple Section Potentiometers) ....................................................................................................................................................2 cups maximum

Hardware ............................................................................... One lockwasher (H-37-2) and one mounting nut (H-38-2) is shipped with each potentiometer.

At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.

Consult manufacturer for complete speciﬁcation details.

Recommended Part Numbers

Part Number

Resistance (Ω)

Resolution (%)

Part Number

Resistance (Ω)

3500S-1-102L

3500S-1-502L

3500S-1-103L

3500S-2-102L

3500S-2-502L

3500S-2-103L

1,000

5,000

10,000

1,000

5,000

10,000

.030

.018

.019

.030

.018

.019

3501H-1-102L

3501H-1-502L

3501H-1-103L

1,000

5,000

10,000

ROHS IDENTIFIER:

L = COMPLIANT

BOLDFACE

LISTINGS ARE IN STOCK AND READILY

AVAILABLE THROUGH DISTRIBUTION.

FOR OTHER OPTIONS CONSULT FACTORY.

“Hybritron” is a registered trademark of Bourns, Inc.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex

and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
