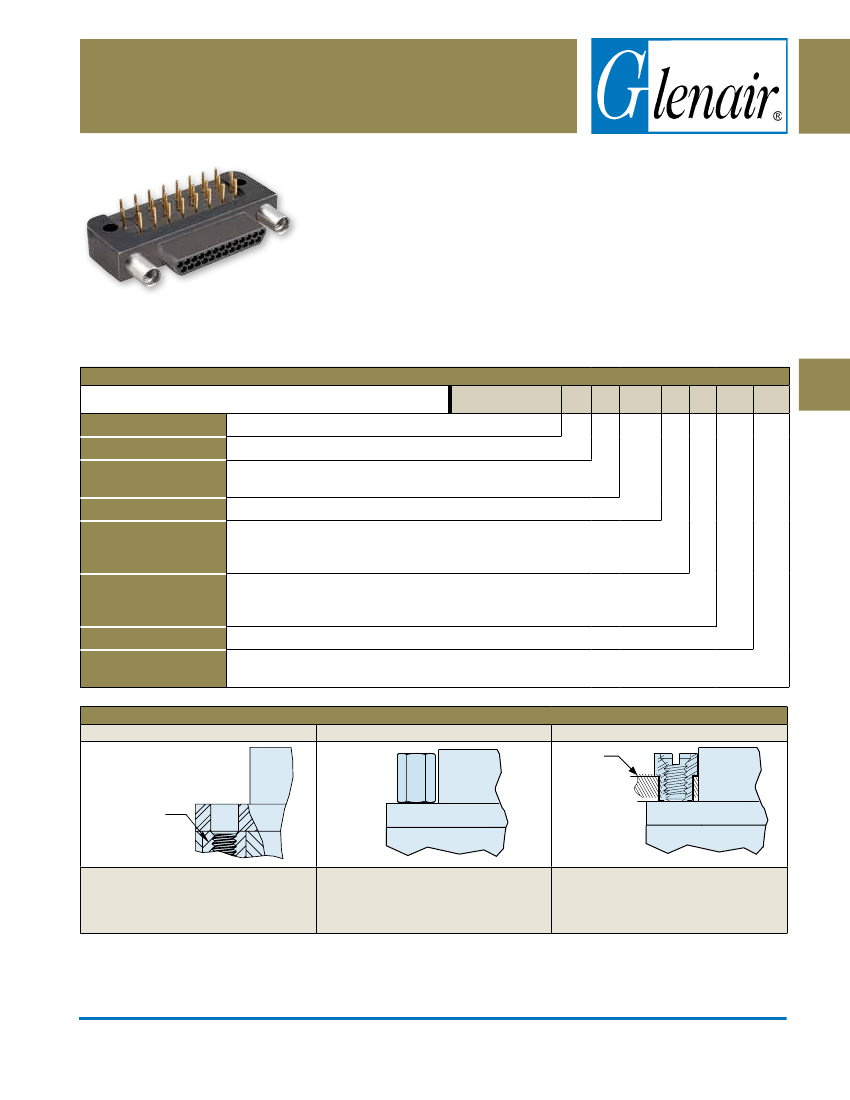

MWDL Low Profile Plastic Shell Micro-D
Right Angle PCB Termination
Low profile MWDL connectors have reduced flange height compared to standard
MWDM Micro-D connectors. These thru-hole “CBR” style Micro-D connectors have
solder dipped leads, gold-plated leads optional on .100" centers. Connectors are
backfilled with epoxy. Pin contacts are gold-plated high performance TwistPin
type and are recessed into insulator to prevent damage. Socket contacts are gold
plated, machined copper alloy. Stainless steel hardware. Optional #2-56 threaded
inserts in board mounting holes. Glass-filled LCP thermoplastic insulators and
tray withstand immersion in +260C solder for 10 seconds. Meets performance
requirements of MIL-DTL-83513, Class P. Available with 9 to 51 contacts. 3 A., 600
Vac, -55°C to +150°C.
How To Order Right Angle PCB Connector
Sample Part Number
Series
Contact Layout
Contact Type
Termination Type
Hardware Option
(See Table I)
MWDL
- Low Profile Plastic Shell Micro-D
9, 15, 21, 25, 31, 37, 51
P-
Pin Contacts
S
- Socket Contacts
CBR
- Condensed Board Right Angle
(Omit for None)
P
– Jackpost
Jackposts for Rear Panel Mounting
R1
– .032” Panel
R2
– .047” Panel
R3
– .062” Panel
R4
– .093” Panel
R5
– .125” Panel
R6
– .125" Panel
MWDL
-21
S
CBR
P
T
.110 -513
Threaded Insert Option
PC Tail Length
Gold-Plated Terminal
Mod Code
Omit
- For Thru-Holes
T
- Threaded Inserts in Board Mounting Holes. #2-56 Female Thread.
M
- Threaded Inserts in Board Mounting Holes. M2 Metric Thread.
.110, .125, .150, .190, .250
Omit
- These connectors are solder-dipped in 60/40 tin lead solder.
To delete the solder dip and change to gold-plated terminal add code
513
Table I: Jackpost Options
No Designator
P
Panel
R1 Thru R5
M
N
P
THREADED
INSERT
Thru-Hole
For use with Glenair jackposts only. Order
hardware separately. Install with threadlocking
compound.
Standard Jackpost
Factory installed, not intended for removal.
Jackpost for Rear Panel Mounting
Shipped loosely installed. Install with permanent
threadlocking compound.
Q
INDEX
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-23
E-Mail: sales@glenair.com
Micro-D Double
and Triple Row
A
B
C
D
E
F
G
H
J
K
L
Micro-D Double
and Triple Row
MWDL Low Profile Plastic Shell Micro-D
Right Angle PCB Termination
Table I: Dimensions
A
D
B
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
A Max.
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In.
.788
.788
.938
.938
1.088
1.080
1.188
1.185
1.338
1.338
1.488
1.488
1.438
1.438
mm.
20.02
20.02
23.83
23.83
27.64
27.64
30.18
30.18
33.99
33.99
37.80
37.80
36.53
36.53
J
PC TAIL
LENGTH
±.015 (0.38)
C
G
H
ø.022/.018
(0.56/0.46)
E
F
Ø.094 (2.39)
#2-56 UNC-2B
or 2mm
B
In .
mm.
± .003 ± 0.08
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
1.215
1.215
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
30.86
30.86
C Max.
In.
.292
.380
.442
.530
.592
.680
.692
.780
.842
.930
.992
1.080
.942
1.030
mm.
7.42
9.65
11.23
13.46
15.04
17.27
17.58
19.81
21.39
23.62
25.20
27.43
23.93
26.16
D Max.
In.
.218
.218
.218
.218
.218
.218
.218
.218
.218
.218
.218
.218
.260
.260
mm.
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
6.60
6.60
B
E
In.
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
.300
.300
mm.
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
7.62
7.62
F Max.
In.
.425
.425
.425
.425
.425
.425
.425
.425
.525
.525
.525
.525
.660
.660
mm.
10.80
10.80
10.80
10.80
10.80
10.80
10.80
10.80
13.34
13.34
13.34
13.34
16.76
16.76
G Max.
In.
.202
.185
.202
.185
.202
.185
.202
.185
.202
.185
.202
.185
.202
.185
mm.
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
H
In .
mm.
± .010 ± 0.25
.230
.230
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.150
.150
5.84
5.84
3.30
3.30
3.30
3.30
3.30
3.30
3.30
3.30
3.30
3.30
3.81
3.81
J
In.
.134
.218
.134
.218
.134
.218
.134
.218
.134
.218
.134
.218
.177
.260
mm.
3.40
5.54
3.40
5.54
3.40
5.54
3.40
5.54
3.40
5.54
3.40
5.54
4.50
6.60
Performance Specifications
Current Rating
DWV
Insulation Resistance
Contact Resistance
Operating Temperature
Shock, Vibration
Mating Force
3 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
Connector Body
Pin Contact
Socket Contact
Hardware
Encapsulant
Materials and Finishes
Liquid Crystal Polymer (LCP), Glass-filled
Beryllium Copper, Gold over Nickel Plating
Copper Alloy, Gold Over Nickel Plating
300 Series Stainless Steel
Epoxy
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-24
E-Mail: sales@glenair.com
MWDL Low Profile Plastic Shell Micro-D
Right Angle PCB Termination

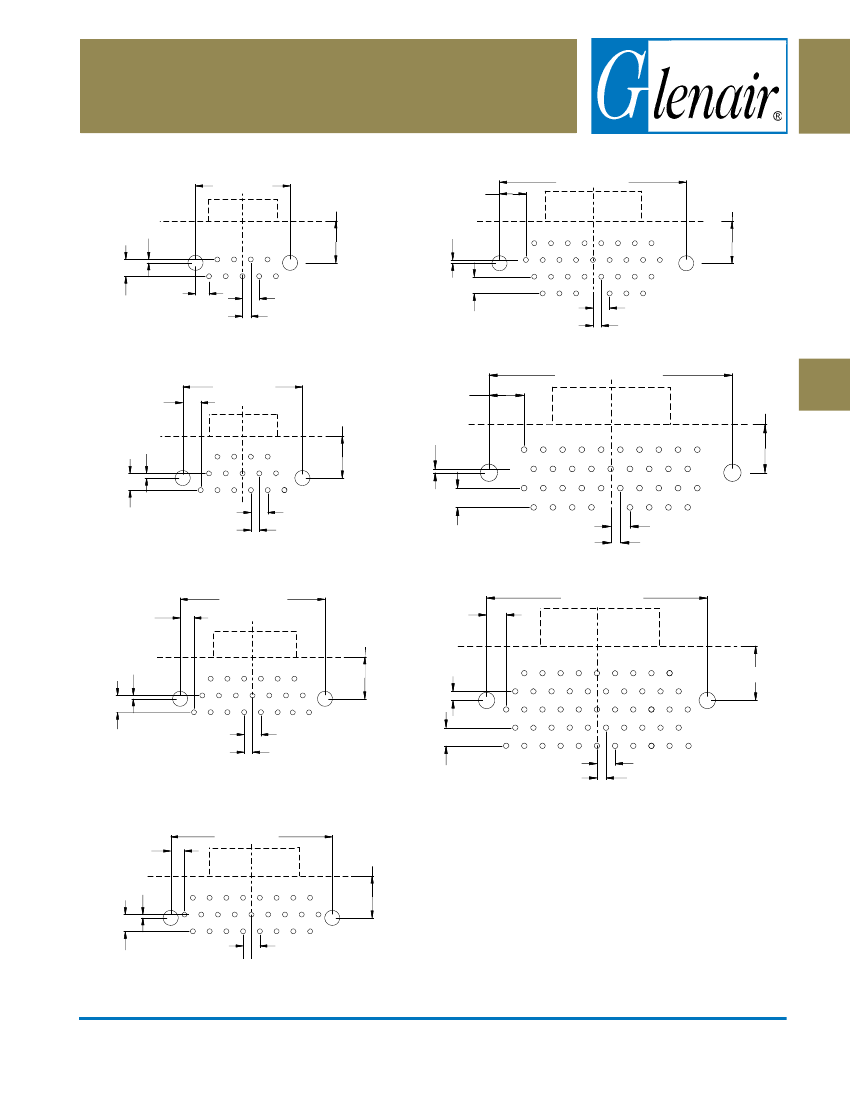

MWDL CBR PCB Layouts — Pin Connectors
.565 (14.35)
.250 (6.35)
.020 (0.51)
1
6
7
2
3
4
8
5
9
.158 (4.01)
.020 (0.51)
1
17
1.115 (28.32)
.250 (6.35)
2
3
19
18
20
4
5
21
22
6
7
23
8
24
25
26
9
10
27
28
11
12
29
31
13
14
30
15
16
.083 (2.11)
.100 (2.54)
.100 (2.54) TYP
.050 (1.27) TYP
3X .100 (2.54)
.100 (2.54) TYP
9 PIN
.715 (18.16)
.250 (6.35)
.020 (0.51)
1
9
10
2
3
11
4
12
13
5
6
14
7
8
15
31 PIN
.183
(4.65)
.020
(0.51)
1
2
20
22
21
23
3
4
24
25
5
6
26
27
.050 (1.27) TYP
1.265 (321.13)
.250
(6.35)
7
8
28
9
10
29
30
11
12
31
32
13
14
33
34
15
16
35
36
17
18
37
19
.108 (2.74)
2X .100 (2.54)
.100 (2.54) TYP
.050 (1.27) TYP
3X .100 (2.54)
.100 (2.54) TYP
.050 (1.27) TYP
15 PIN
.865 (21.97)
.083 (2.11)
.250 (6.35)
.020 (0.51)
1
12
13
2
14
15
3
4
16
5
17
18
6
7
8
9
19 20
10
11
21
37 PIN
1.215 (30.86)
.108
(2.74)
.050
(1.27)
1
19
20
36
37
21
22
38
2
3
4
5
23
24
6
7
25
26
39
8
9
41
42
40
27
10
43
45
44
11
12
46
28
47
13
14
29
30
48
15
16
31
32
49
17
18
33
34
50
51
35
.300 (7.62)
2X .100 (2.54)
.100 (2.54) TYP
.050 (1.27) TYP
4X .100 (2.54)
.100 (2.54) TYP
.050 (1.27) TYP
M
N
P
Q
INDEX
21 PIN
.083 (2.11)
.020 (0.51)
1
14
51 PIN
.965 (24.51)
.250 (6.35)
2
15
16
3
17
18
4
5
19
6
7
20
8
9
21
10
22
11
24
23 25
12
13
Notes
1. Patterns shown are for connector mounting side of
PC board.
2. Board mounting holes are .094" (2.39) diameter.
3. PC tails are .022" (0.56) maximum diameter.
2X .100 (2.54)
.100 (2.54) TYP
25 PIN
.050 (1.27) TYP
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-25
E-Mail: sales@glenair.com
Micro-D Double
and Triple Row
A
B
C
D
E
F
G
H
J
K
L
Micro-D Double
and Triple Row
MWDL Low Profile Plastic Shell Micro-D
Right Angle PCB Termination

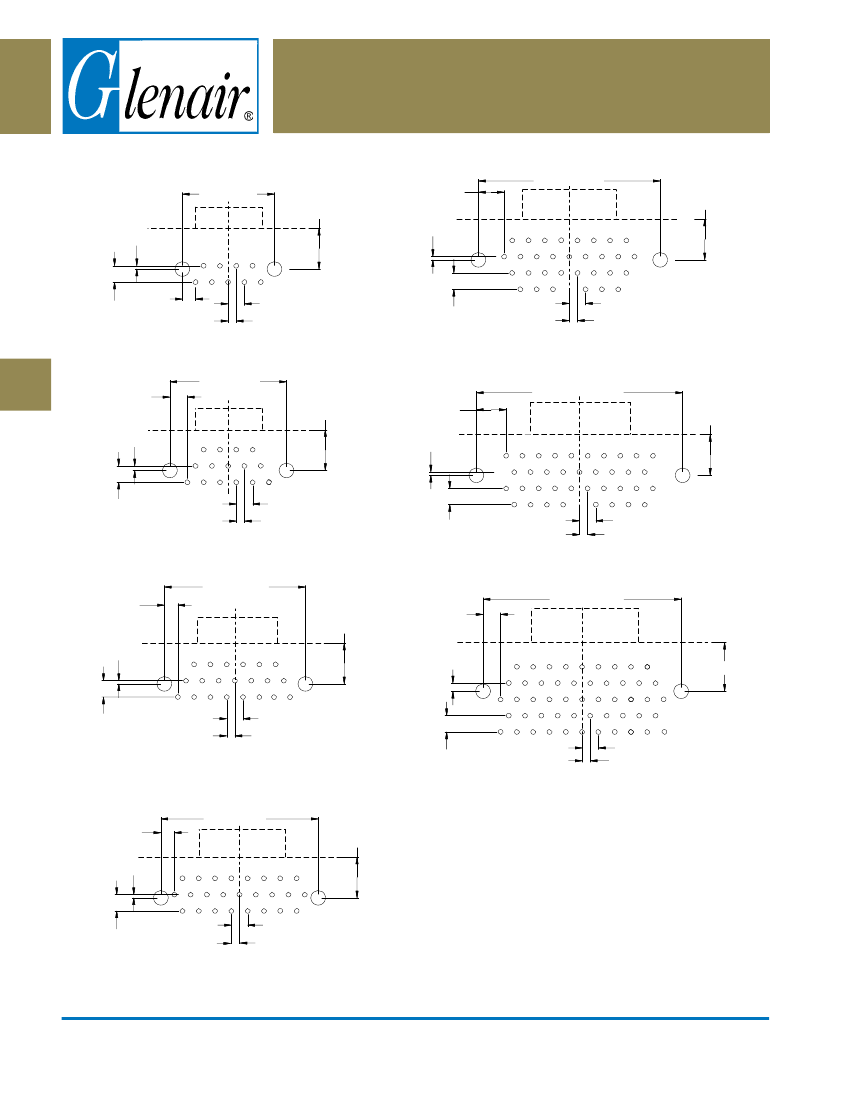

MWDL CBR PCB Layouts — Socket Connectors
