09185505902 datasheet, PDF - EEWORLD Datasheet

09185505902: DescriptionHeaders & Wire Housings SEK18 SVML STD STR45 RLG 50P AU0.76; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric Compare View All

09185505902 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09185505902	-	-	View	Buy Now

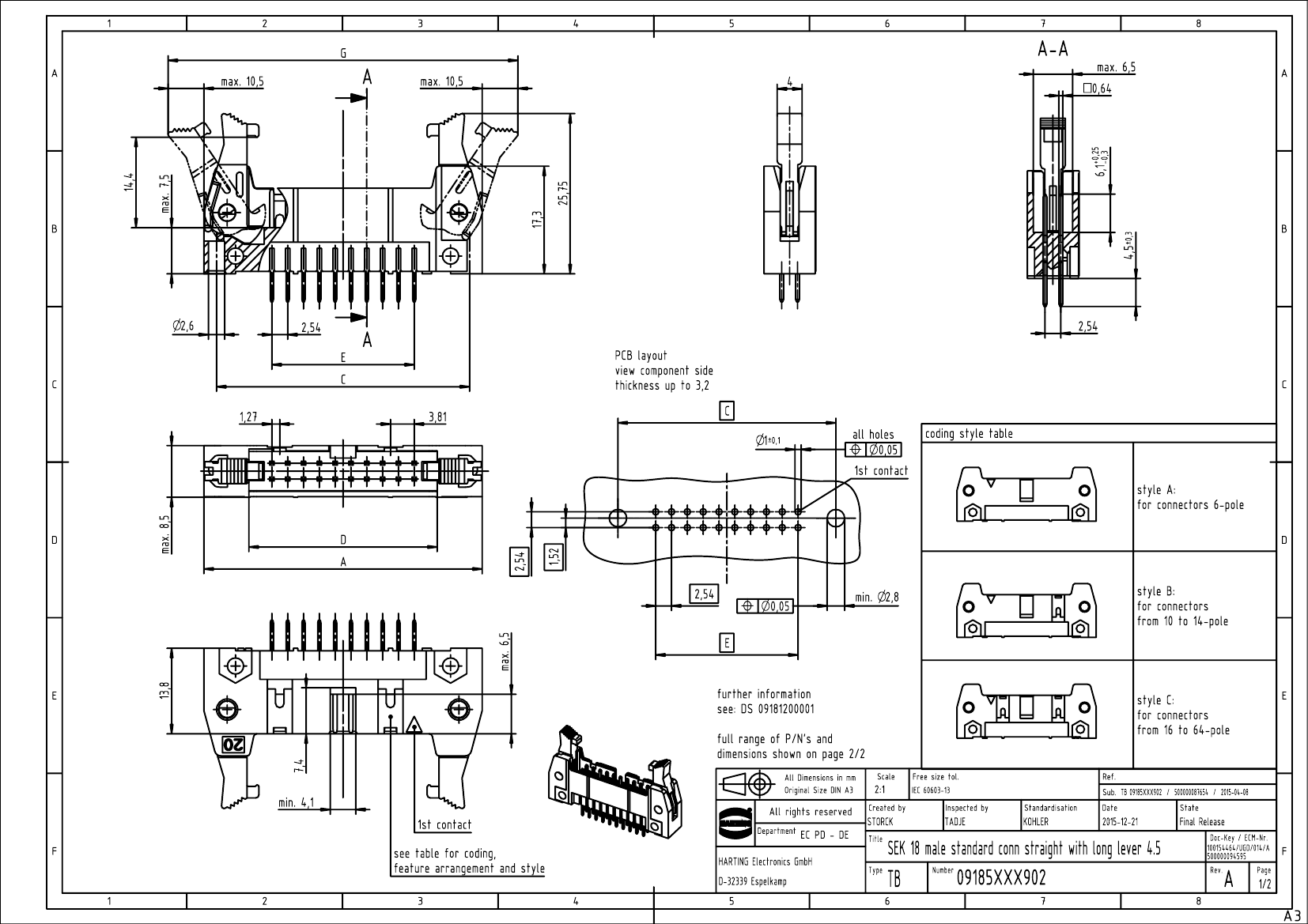

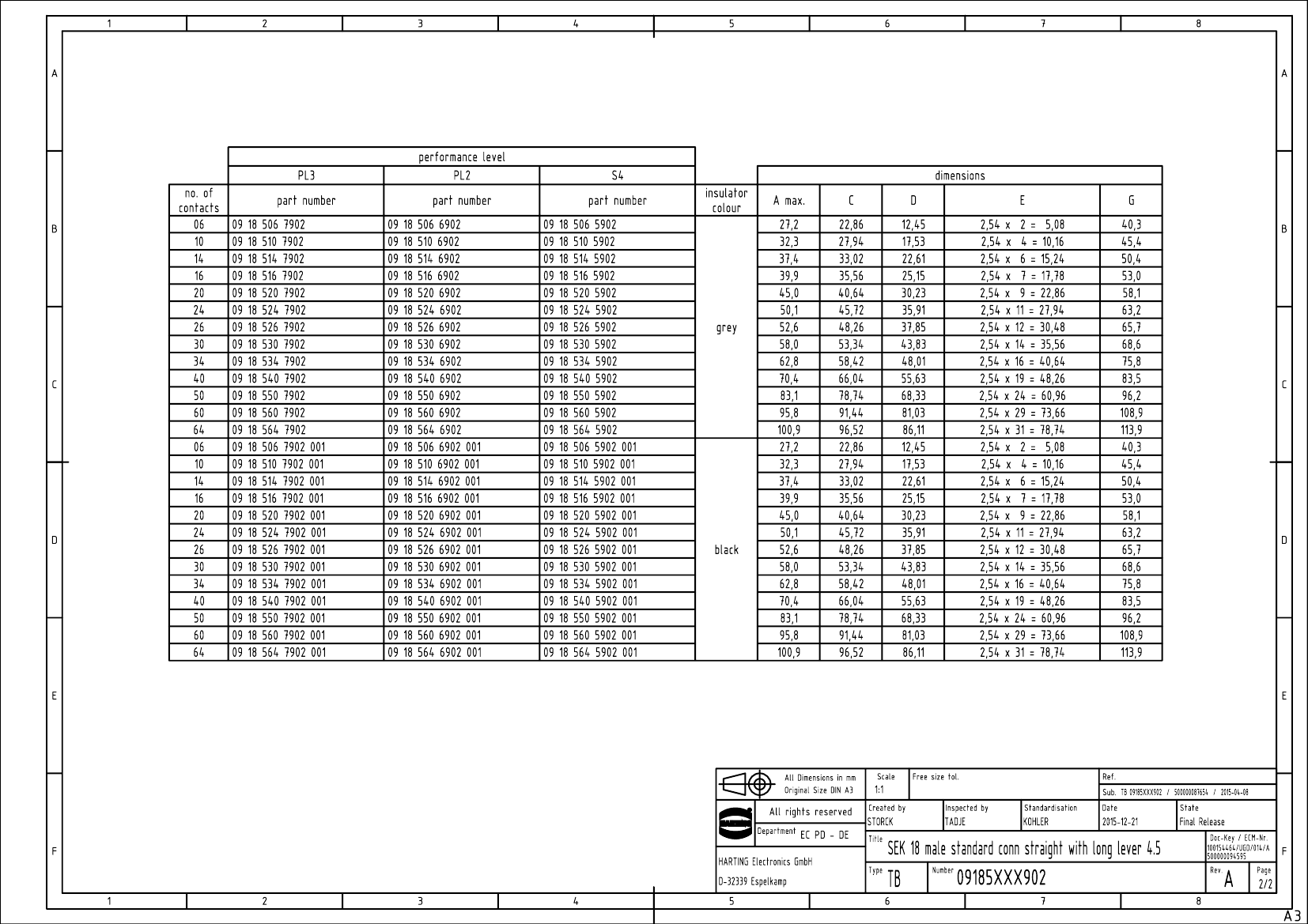

Headers & Wire Housings SEK18 SVML STD STR45 RLG 50P AU0.76

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HARTING
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Board mount options	HOLE .099-.111
body width	0.331 inch
subject depth	0.681 inch
body length	3.787 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

	09185505902	CHPHR2512K2943FBPT	09185166902	FP20116142641ABBG
Description	Headers & Wire Housings SEK18 SVML STD STR45 RLG 50P AU0.76	Fixed Resistor, Metal Glaze/thick Film, 0.8W, 294000ohm, 300V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP	Headers & Wire Housings SEK-18 SV ML STD STR45 RLG 16P AU2	Array/Network Resistor, Series, Thin Film, 0.1W, 2640ohm, 100V, 0.05% +/-Tol, -25,25ppm/Cel, 4427,
Is it Rohs certified?	conform to	incompatible	conform to	conform to
Reach Compliance Code	compliant	unknown	compliant	compliant
Maximum operating temperature	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-65 °C	-55 °C	-55 °C
Guideline	UL	ESCC4001/026	UL	-
ECCN code	-	EAR99	EAR99	EAR99
