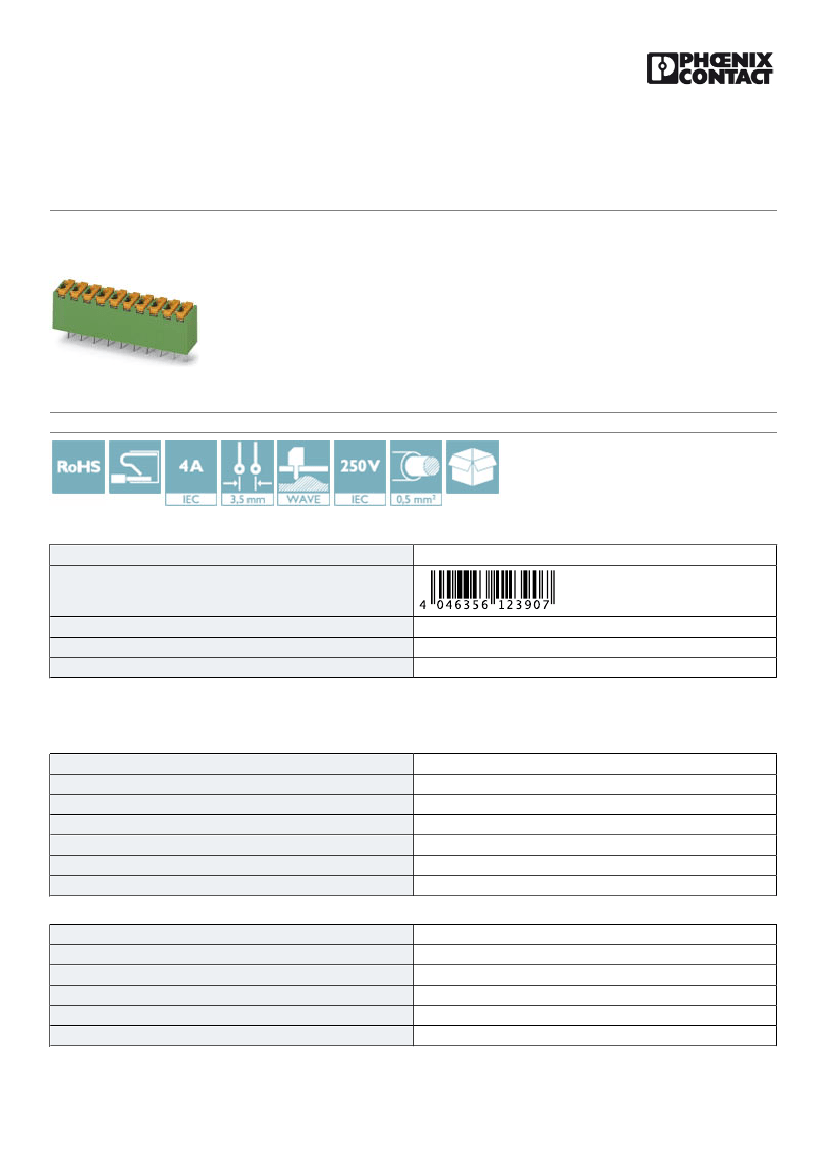

PCB terminal block - FK-MPT 0,5/ 9-3,5 BDNZ:7C-ZASO - 1724129
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 4 A, Nom. voltage: 250 V, Pitch: 3.5 mm, Number of positions: 9,
Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection
direction: 90 °, Color: green
The figure shows a 10-position
version of the product
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356123907
85369010
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
Hole diameter
7 mm
3.50 mm
28 mm
10 mm
3.5 mm
0,4 x 0,9 mm
1 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
FK-MPT 0,5/..-V
2.5 kV
2.5 kV
2.5 kV
160 V
250 V
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1724129
PCB terminal block - FK-MPT 0,5/ 9-3,5 BDNZ:7C-ZASO - 1724129
Technical data
General
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Solder pin surface
Stripping length
Number of positions
250 V
EN-VDE
4A
0.5 mm²
Sn
6.5 mm
9
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
26
20
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Drilling diagram
a
1,15
3,5
Dimensional drawing
a+4
7
1
3,5
9,5
1,15
3,5
a
Diagram
Approvals
Approvals
Approvals
UL Recognized / SEV / cUL Recognized / CCA / EAC / cULus Recognized
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1724129
PCB terminal block - FK-MPT 0,5/ 9-3,5 BDNZ:7C-ZASO - 1724129
Approvals
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-20
4A
300 V
D
28-20
4A
300 V
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html IK-3558
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.5
3A
160 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-20
4A
300 V
D
28-20
4A
300 V
CCA IK-2681
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.5
3A
160 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
