6 POSITIONS

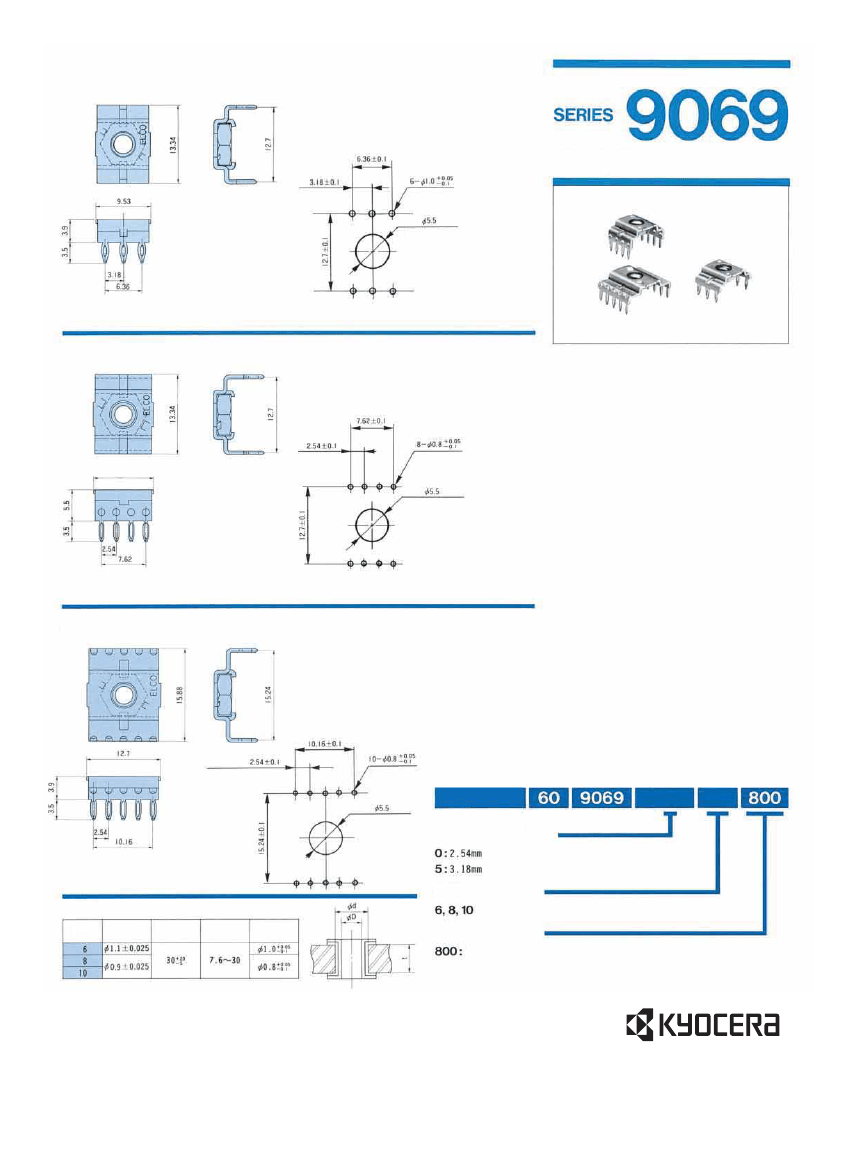

Mounting dimensions on the board
POWER INSERT
(Finished diameter)
(Screw clearance hole)
8 POSITIONS
Mounting dimensions on the board
Features
- The press-fit terminal block developed in
respond to the high density requirement for
electronic equipment, which is suitable for
supplying the power to each unit in an
equipment especially to printed circuit boards.
-Contacts are press-fitted.
-Hardly affected by heat, that is normally found
in a soldered type terminal block.
Specifications
-Rated current:18A max. for 6-positions one
24A max. for 10-positions one
-Contact material: Copper alloy
-Contact plating: Nickel undercoated, Solder
finish
-Applicable PCB thickness:
t=2.4 0.15mm or more
-Screw to fix: M4
-Insertion force
For 6-positions: 120kg or less
For 8-positons: 160kg or less
For 10-positions: 210kg or less
-Retention force
For 6-positions: 21kg or more
For 8-positions: 38kg or more
For 10-positions: 48kg or more
-Screw torque: 15kg/cm max.
(Finished diameter)
(Screw clearance hole)
10 POSITIONS
Mounting dimensions on the board
(Finished diameter)
Ordering code
Part number
90X7
0X
(Screw clearance hole)
Pitch of coantacts
(8, 10-positions)
(6-positions)
No. of positions
Applicable dimensions of through hall
No. of
Dia. of hole for
POSITIONS contact (d) (mm)
Thickness
of copper
plating (µm)
Thickness of
solder (µm)
Finished dia.
(D) (mm)
Code for plating
Nickel undercoat, Solder finish
