Part Number

Search

53647-0874

Description
Board to Board & Mezzanine Connectors 0.635 BtB Hsg Cover Assy EmbsTp Pkg80Ckt
CategoryThe connector    The connector
File Size30KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

53647-0874 Online Shopping

Suppliers Part Number Price MOQ In stock
53647-0874 - - View Buy Now

53647-0874 Overview

Board to Board & Mezzanine Connectors 0.635 BtB Hsg Cover Assy EmbsTp Pkg80Ckt

53647-0874 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time9 weeks
Board mount optionsPEG
body width0.205 inch
subject depth0.283 inch
body length1.27 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Durability50 Cycles
maximum insertion force.695 N
Insulation resistance1000000000 Ω
Insulator colorBROWN
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 codee3
Plug contact pitch0.025 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.191 mm
Plating thickness10u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts80
Evacuation force-minimum value.1112 N
Base Number Matches1

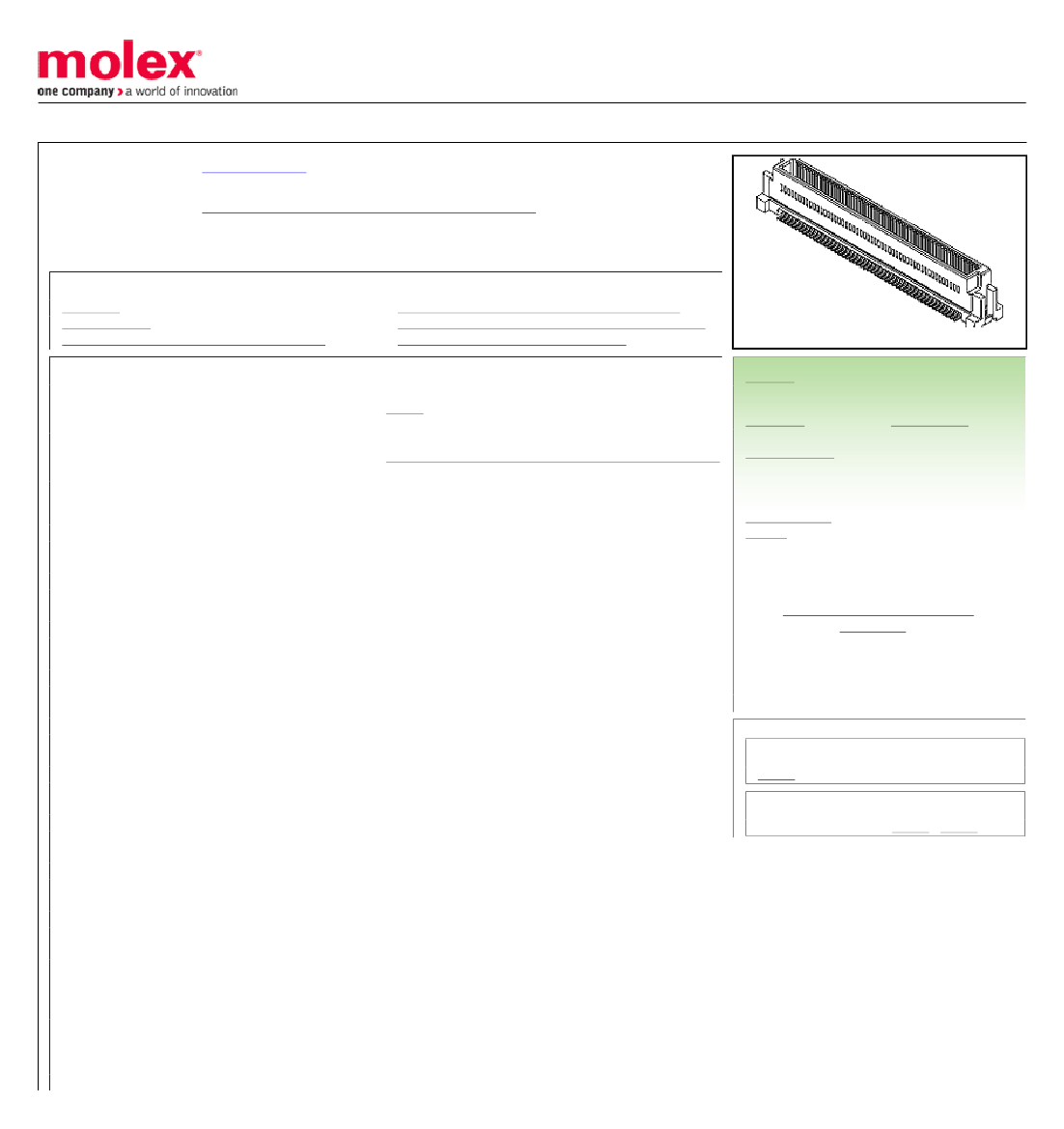

This document was generated on 05/18/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0536470874
Active
SlimStack™ 0.635mm Pitch Board-to-Board Connectors
0.635mm Pitch SlimStack Header, Surface Mount, Dual Row, Vertical Stacking,
8.00 and 14.00mm Stacking Heights, 80 Circuits, with Embossed Tape with Cover
Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification 527600000-000 (PDF)
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height
Mated Width
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Robotic Placement
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification PS-52760-015-001 (PDF)
Packaging Specification SPK-53647-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
PCB Headers
53647
Board-to-Board, Signal
Stacking-Type
SlimStack™ 0.635mm Pitch Board-to-Board Connectors
SlimStack
822348204960
No
80
80
Brown
50
No
No
No
None
None
14.00mm, 8.00mm
6.40mm
Brass, Phosphor Bronze, Stainless Steel
Gold
Tin
1075.358/mg
2
Vertical
Yes
Yes
Embossed Tape on Reel
0.64mm
Yes
Metal Cap
No
-55°C to +105°C
Surface Mount
0.5A
100V
Search Parts in this Series
53647 Series
Mates With
SlimStack Receptacle 52885 , 52901
SPK-53647-001-001
