0-5084616-5 datasheet, PDF - EEWORLD Datasheet

0-5084616-5: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

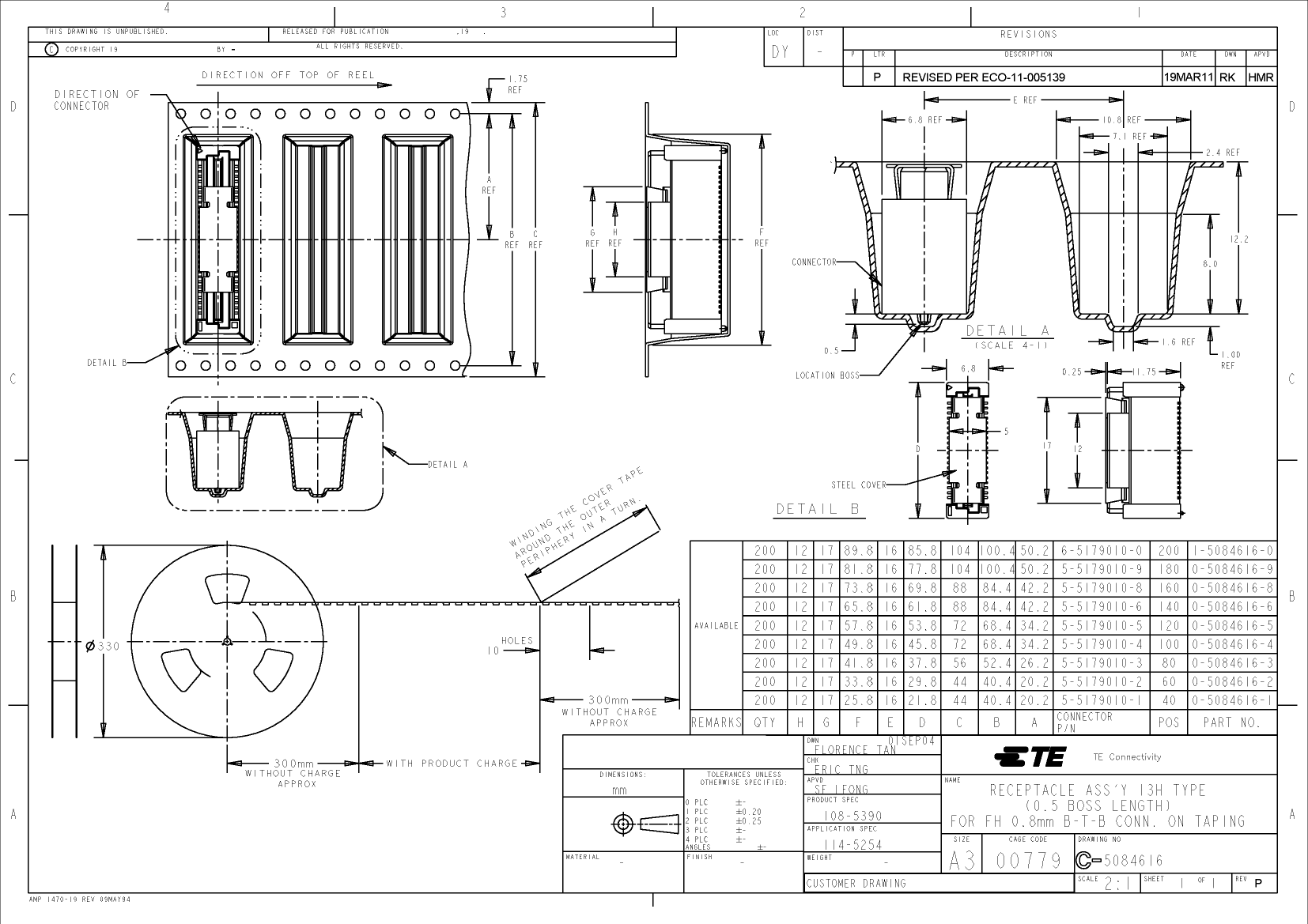

0-5084616-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Board mount options	PEG
body width	0.268 inch
subject depth	0.463 inch
body length	2.118 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	.8896 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	5084616
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.8006 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	120
Evacuation force-minimum value	.0973 N
Base Number Matches	1
