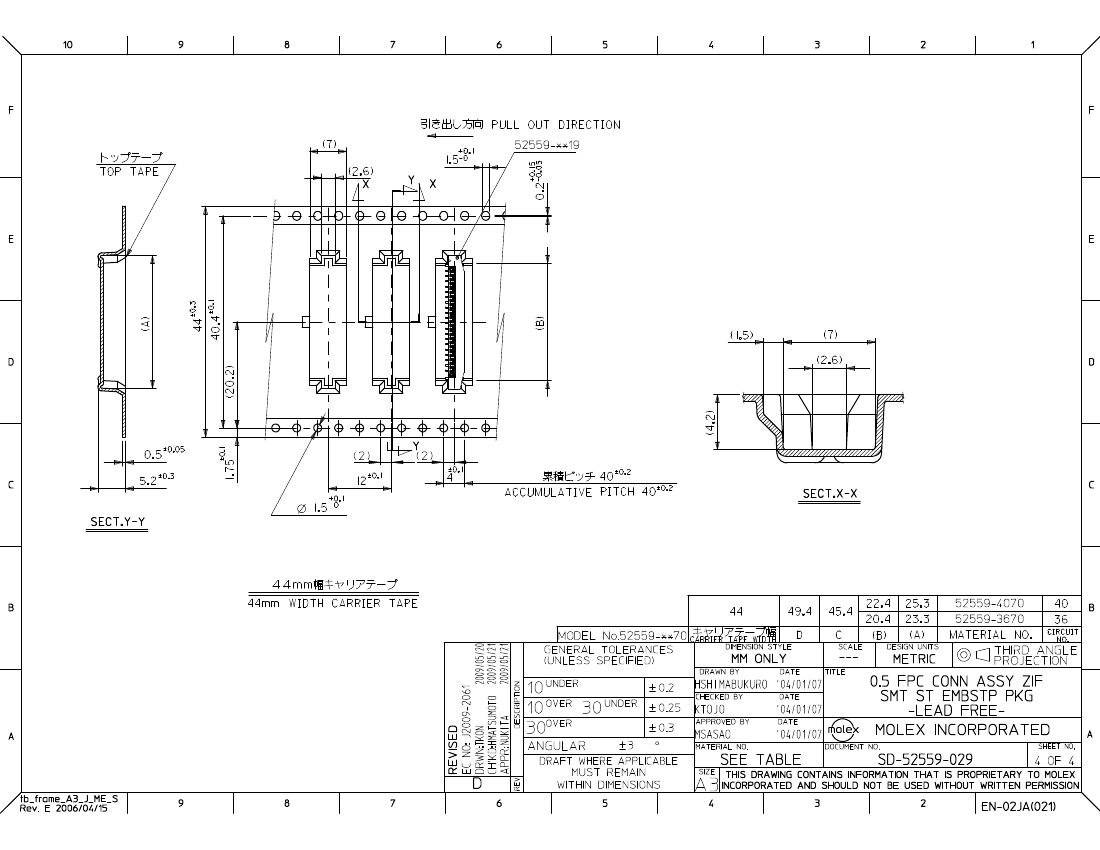

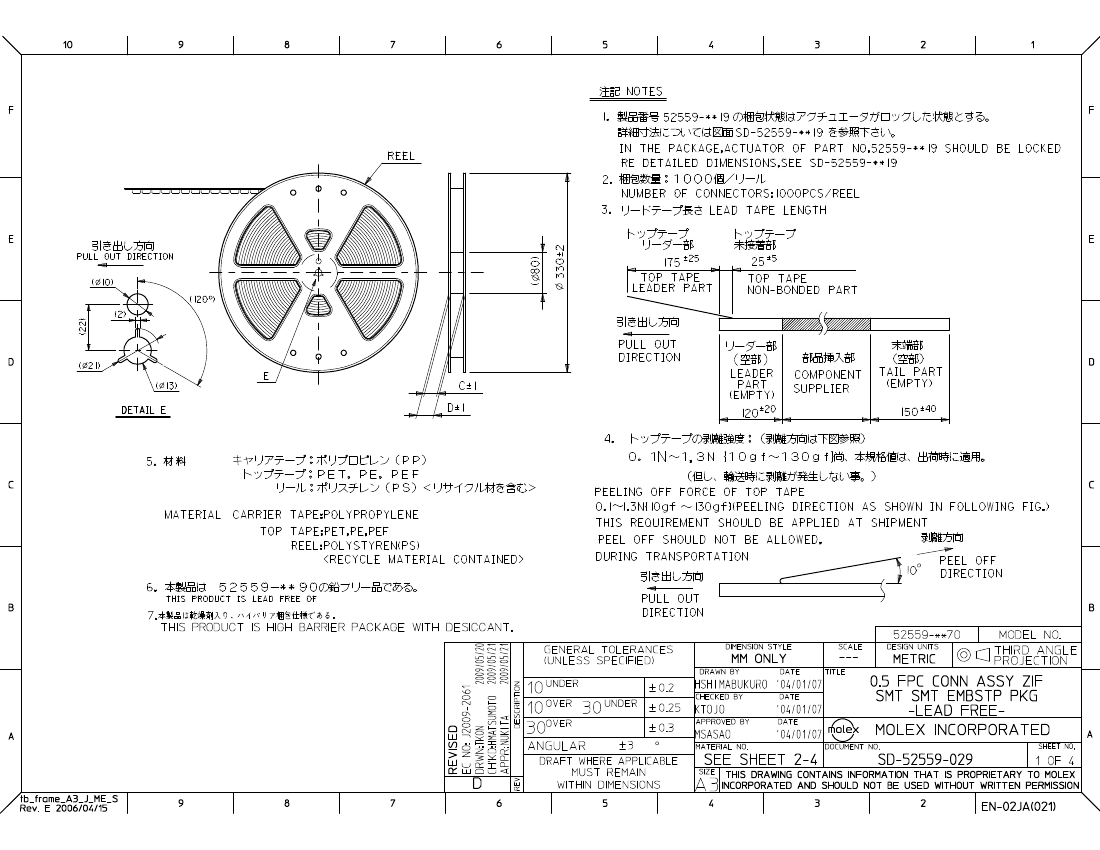

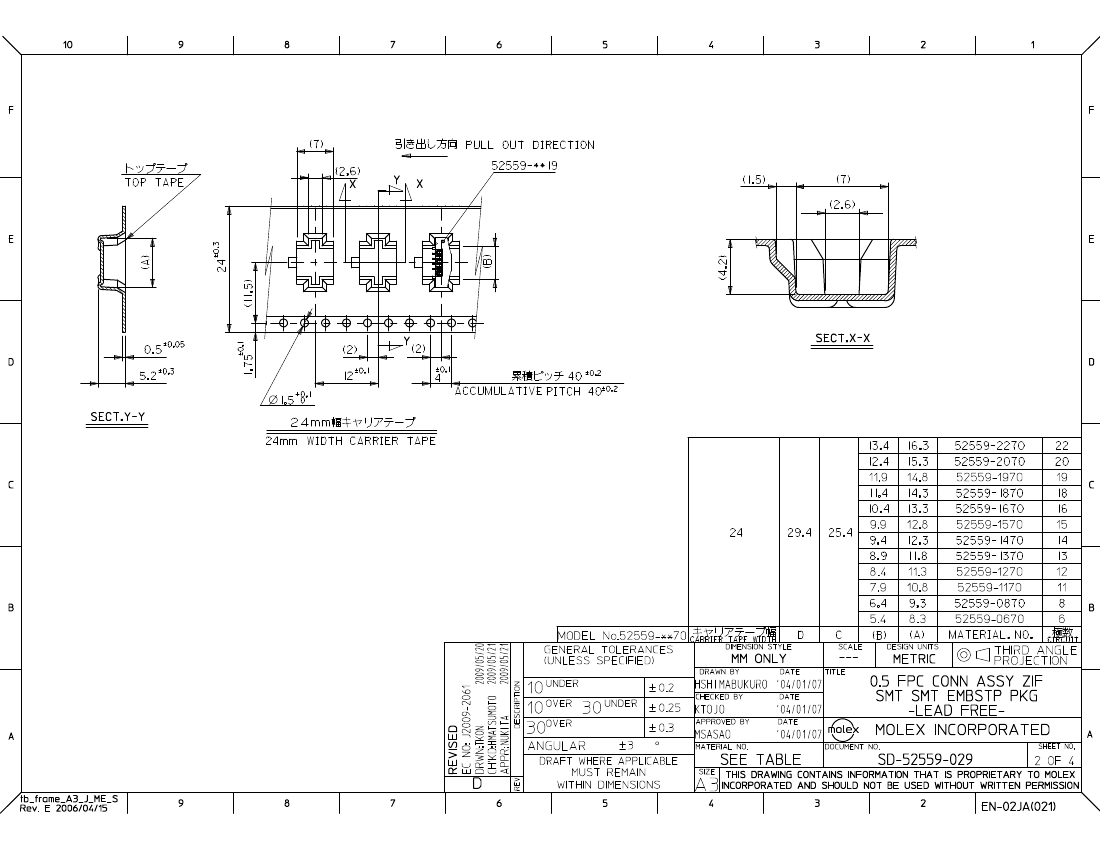

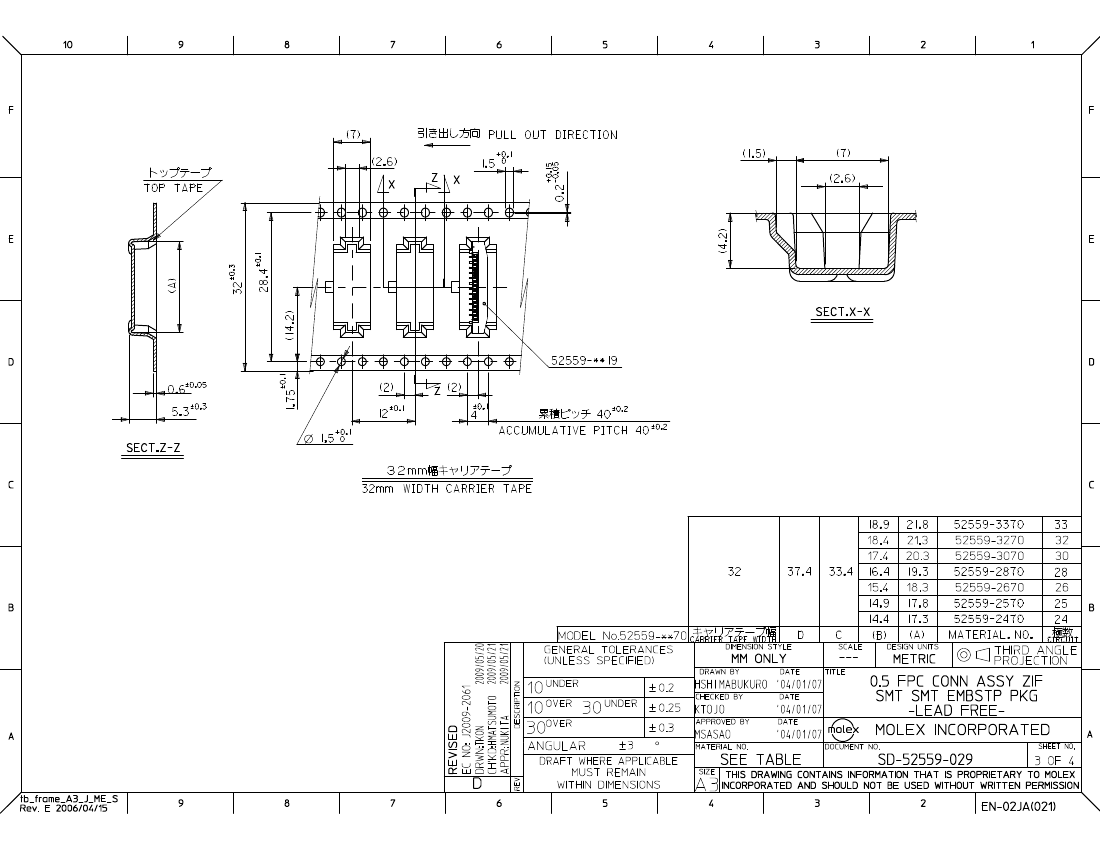

Preview

52559-1870: DescriptionFFC & FPC Connectors VERTICAL SMT ZIF 18P FFC/FPC; CategoryThe connector The connector; File Size598KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52559-1870 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52559-1870	-	-	View	Buy Now

52559-1870 Overview

FFC & FPC Connectors VERTICAL SMT ZIF 18P FFC/FPC

52559-1870 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.091 inch
subject depth	0.154 inch
body length	1.031 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN BISMUTH
Contact completed and terminated	TIN BISMUTH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	NYLON
JESD-609 code	e6
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Plating thickness	39u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

52559-1870 Related Products

	52559-1870	52559-2270	52559-2570	52559-0870
Description	FFC & FPC Connectors VERTICAL SMT ZIF 18P FFC/FPC	FFC & FPC Connectors VERTICAL SMT ZIF 22P FFC/FPC	FFC & FPC Connectors 25CKT VERT SMT ZIF	FFC & FPC Connectors VERTICAL SMT ZIF 8P FFC/FPC
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.091 inch	0.091 inch	0.091 inch	0.091 inch
subject depth	0.154 inch	0.154 inch	0.154 inch	0.154 inch
body length	1.031 inch	0.657 inch	0.717 inch	0.382 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH OVER NICKEL	TIN BISMUTH
Contact completed and terminated	TIN BISMUTH	Tin/Bismuth (Sn/Bi)	TIN OVER NICKEL	Tin/Bismuth (Sn/Bi)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e6	e6	e3	e6
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.794 mm	2.794 mm	2.794 mm	2.794 mm
Plating thickness	39u inch	39u inch	39u inch	39u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	22	25	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N
Maker	Molex	Molex	Molex	-
ECCN code	EAR99	EAR99	EAR99	-
Other features	-	ROHS, ELV COMPL & EMBOSSED PKG	ROHS, ELV COMPL & EMBOSSED PKG	ROHS, ELV COMPL & EMBOSSED PKG
Insulator color	-	BEIGE	BEIGE	BEIGE
