54550-2671

Description
FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 26Ckt EmbsTp Pkg
CategoryThe connector    The connector
File Size28KB，1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54550-2671 Online Shopping

Suppliers Part Number Price MOQ In stock
54550-2671 - - View Buy Now

54550-2671 Overview

FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 26Ckt EmbsTp Pkg

54550-2671 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time19 weeks
Samacsys DescriptionFFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 26Ckt EmbsTp Pkg
Board mount optionsFITTING NAIL
body width0.047 inch
subject depth0.151 inch
body length0.717 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance40 mΩ
Insulation resistance50000000 Ω
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch0.02 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts26
Base Number Matches1

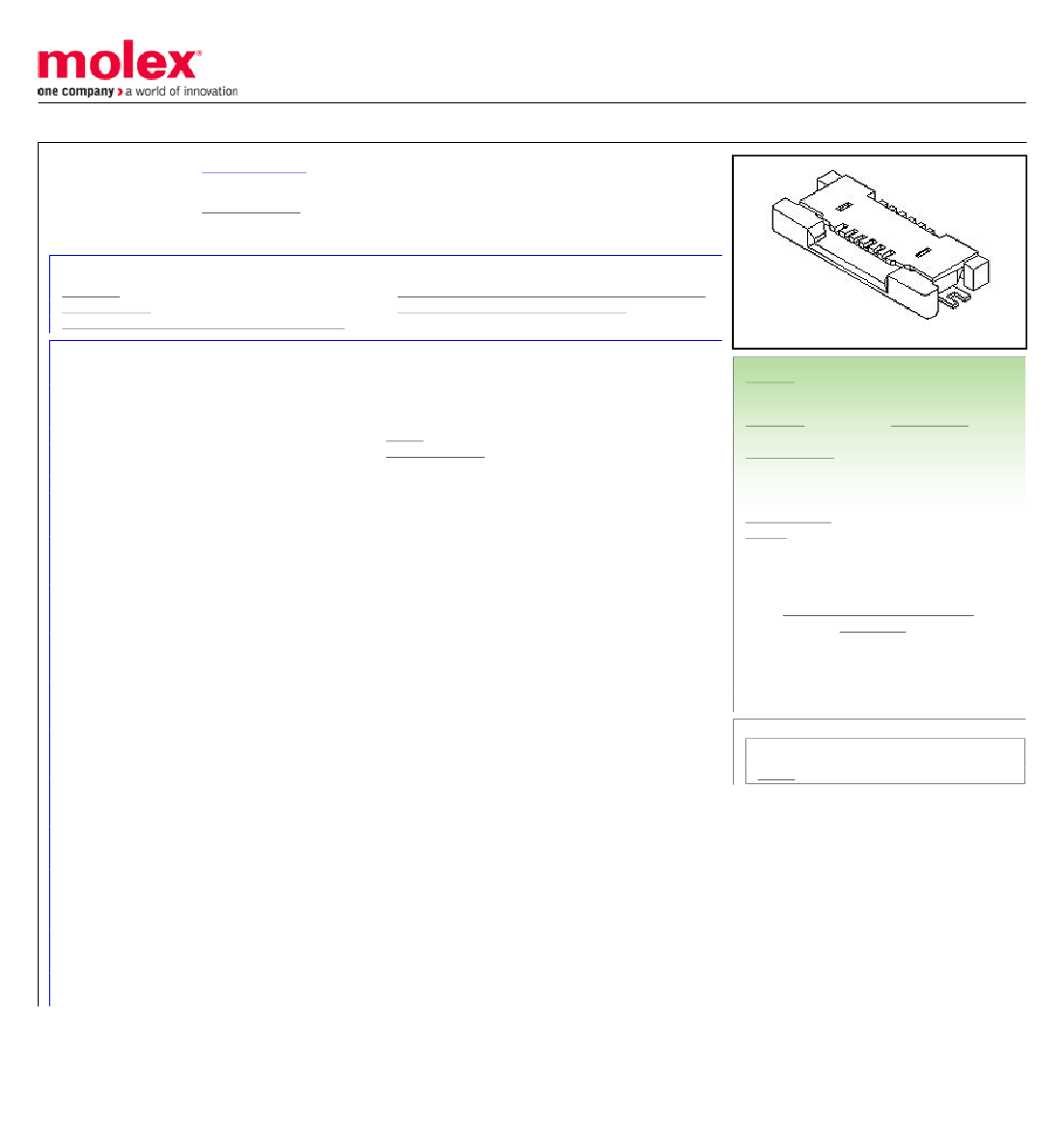

Preview

Download Datasheet
This document was generated on 05/18/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0545502671
Active
FFC-FPC (SMT)
0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right Angle, Surface
Mount, ZIF, Top Contact Style, 26 Circuits, Gold Contact Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54550-012-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Overview
Product Name
UPC
Physical
Actuator Type
Circuits (Loaded)
Contact Position
Durability (mating cycles max)
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Mounting
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification SPK-54550-056-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E29179
FFC/FPC Connectors
54550
FFC-FPC (SMT)
Easy-On
822350373708
Slider
26
Top
20
1.20mm
Phosphor Bronze
Gold
Tin
129.108/mg
1
Right Angle
No
Surface Mount
Yes
Embossed Tape on Reel
0.50mm
Yes
No
-40°C to +85°C
FFC/FPC
0.5A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
54550 Series
SPK-54550-056-001
PS-54550-012-001
SD-54550-042, SD-54550-043
