507-011

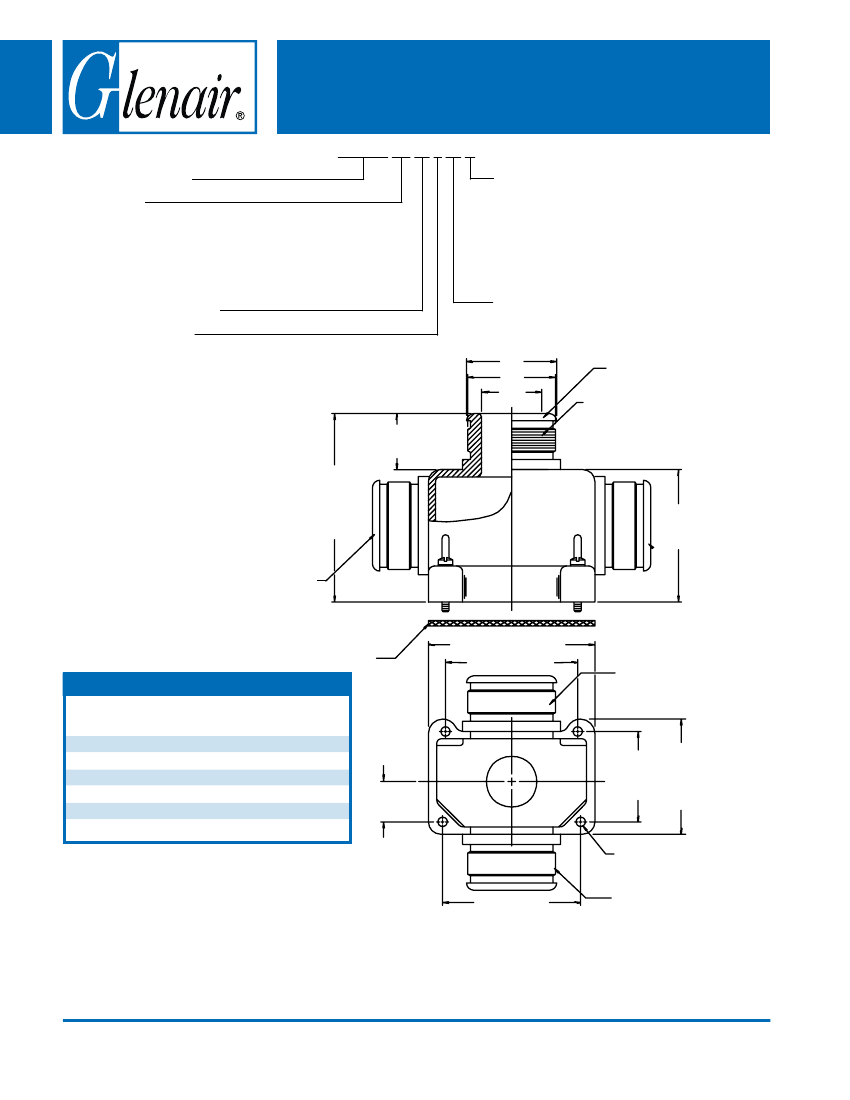

EMI/RFI Banding Backshell
for MIL-DTL-81659 Connectors
507-011 NF 02 L 03 R
Basic Part No.
Finish
B = Cadmium Plate/Olive Drab
M = Electroless Nickel
N = Cadmium Plate/Olive Drab over Nickel Plate
NF = Cadmium Olive Drab over Electroless
Nickel (1000 Hour Salt Spray)
Dash No. (Table I)
Entry Location
B = Back Entry
F = Front Entry
L = Left Side Entry
R = Right Side Entry
T = Top Entry
.50 (12.7)
Ref
2.00
(50.8)
Max
Typ.
MIL-DTL-81659
Entry Location Omit
for only one entry
B = Back Entry
F = Front Entry
L = Left Side Entry
R = Right Side Entry
T = Top Entry
Dash No. (Table I) Omit
for only one entry
for only one entry
C
T Top Entry
B
A
Die Cast Knurl,
Style Mfr. Option (Typ)
1.50
(38.1)
L Left Entry
R Right
Entry
1.715 (43.6) Max
1.377 (35.0)
RFI/EMI Gasket Supplied
TABLE I: CABLE ENTRY
Dash
A Dia
B
C Dia
No.
Min
Dia
Max
01 .250 (6.4) .375 (9.5) .425 (10.8)
02 .375 (9.5) .500 (12.7) .550 (14.0)
03 .500 (12.7) .625 (15.9) .675 (17.1)
04* .625 (15.9) .750 (19.1) .800 (20.3)
05* .750 (19.1) .875 (22.2) .925 (23.5)
* Not Available in L and R Entries
F Front Entry
Threaded in Fitting
.407
(10.3)
1.195
.938
(30.4)
(23.8)
Max
Typ.
Typ.
1. Metric dimensions (mm) are indicated in parentheses.
2. For effective grounding, connector with conductive fin-
ish should be used.
3. Material/Finish:
Backshell = Al Alloy/Finish Per Option
Hardware = Cres/Passivate
Gasket = Monel and Neoprene
© 2011 Glenair, Inc.
CAGE Code 06324
.103 (2.6)Dia,
4 Places
1.437 (36.5)
B Back Entry
Threaded in Fitting
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-8
