Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
.63 R Ref
Stranded Copper: Class B & C,
Compact, Class G, H, I, K, M,
Locomotive
1-9/16 in.
1/2 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
BLACK
.96±.04
PANDUIT
2/0 STR/FLEX
2/0 STR/FLEX
LCCX2/0-12H
PANDUIT
BLACK DIE P45 (13)
Wire Strip Length
Stud Size
UL Listed Wire
Connector
.63±.04
1.75±.02
.53±.02 DIA
(2) PLS
Color coded
barrel markings
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
Beveled wire entry
.64±.01
.51±.01
1.50±.04
Panduit Die Index No. P45
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(13)
Wire inspection window
45°±5°
1.85 REF
CERTIFIED
LISTED
Wire Connector
.13±.01
4.38 REF
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCCX2/0-12H-X

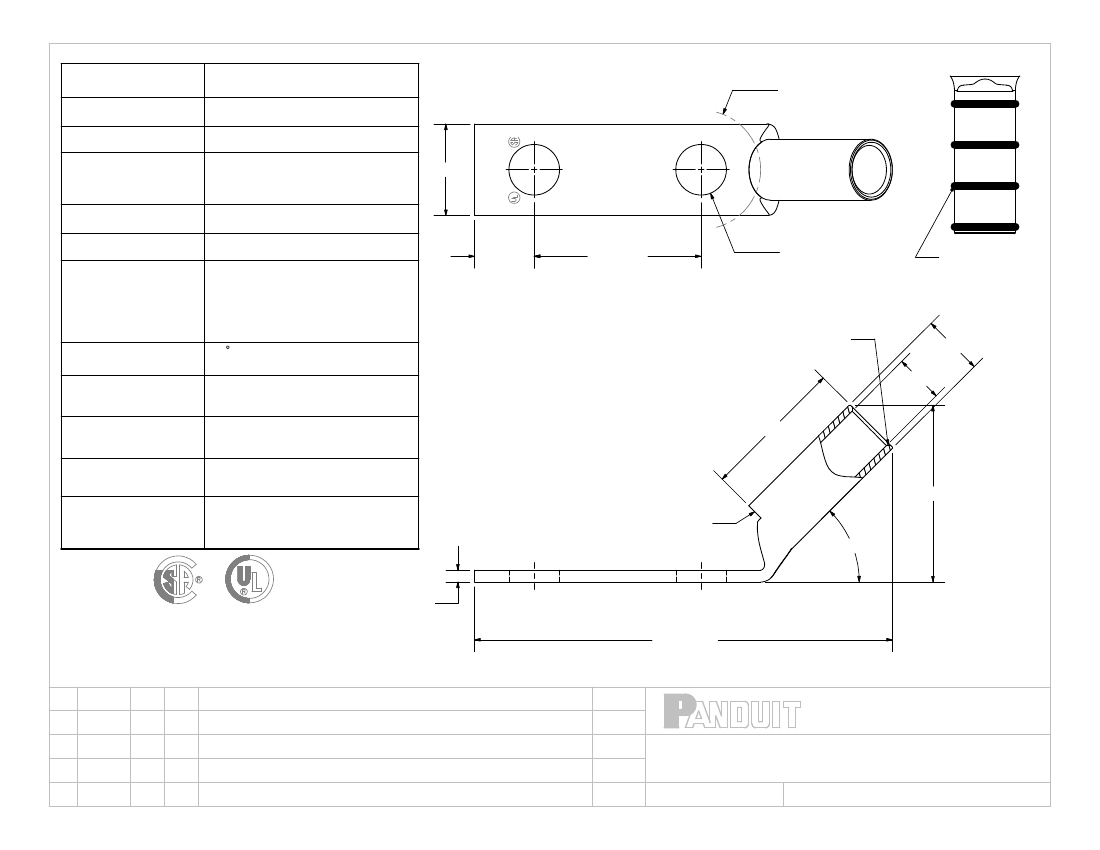

Copper Lug - Two-Hole, Long Flex Barrel with Window, 45° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCCX2_0-12H-CUST
