73942-0200

Description
High Speed / Modular Connectors HDM BP Open End Opt nd Opt ST 30Au 72Ckt
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

73942-0200 Online Shopping

Suppliers Part Number Price MOQ In stock
73942-0200 - - View Buy Now

73942-0200 Overview

High Speed / Modular Connectors HDM BP Open End Opt nd Opt ST 30Au 72Ckt

73942-0200 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresHDM
body width0.614 inch
subject depth0.461 inch
body length0.939 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.3614 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
MIL complianceNO
Manufacturer's serial number73942
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number6
Number of rows loaded6
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.079 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts72
UL Flammability Code94V-0
Base Number Matches1

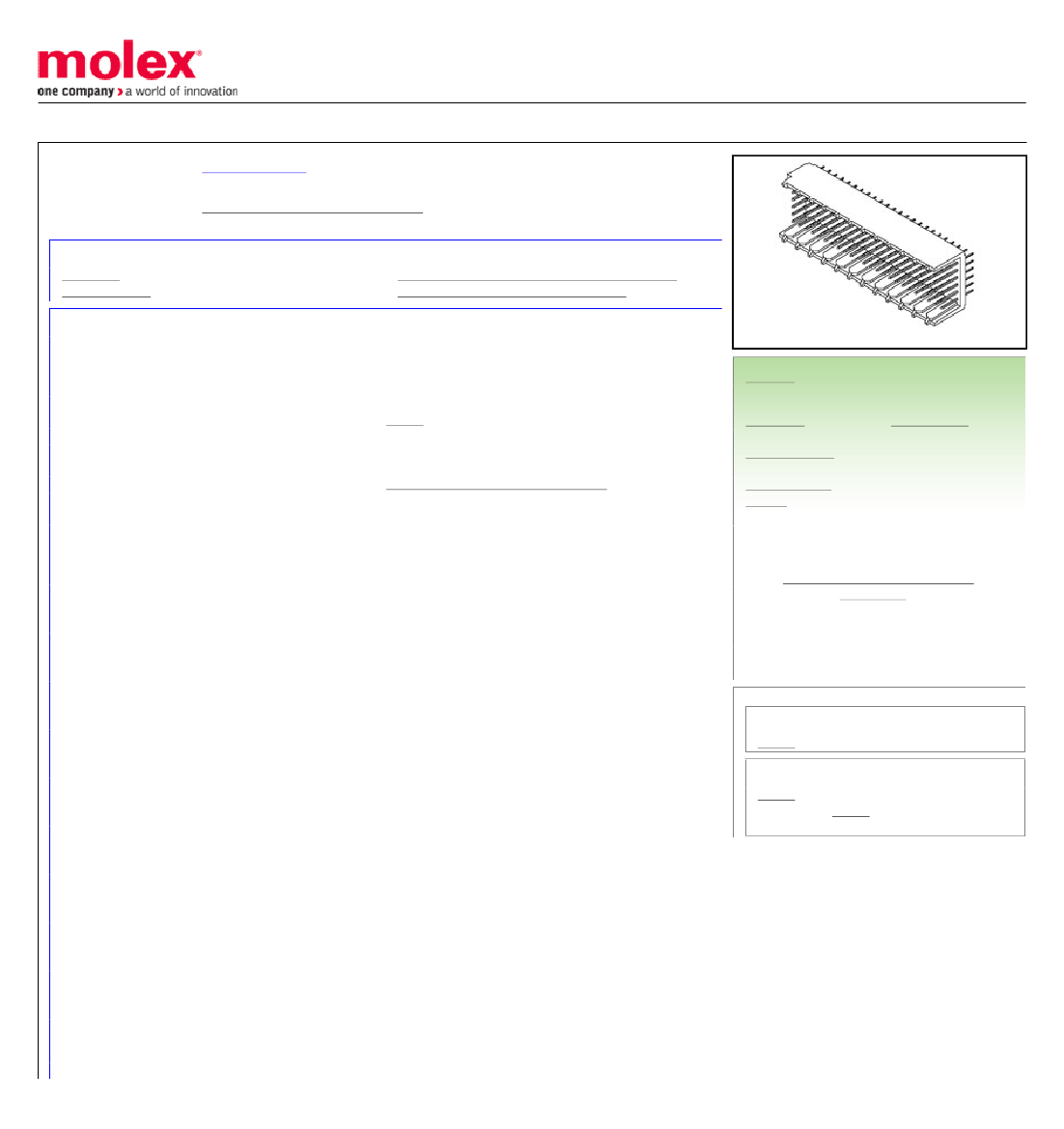

This document was generated on 11/28/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Data Rate
0739420200
Active
HDM® Backplane Connector System
HDM Board-to-Board Backplane Header, Vertical, Solder Tail, Open End, 72 Circuits
Packaging Specification PK-70873-0818 (PDF)
RoHS Certificate of Compliance (PDF)
LR19980
E29179
Backplane Connectors
73942
Backplane
Solder Tail
PCB Header
HDM® Backplane Connector System
HDM
800754795289
72
72
Black, Natural
250
No
94V-0
No
None
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
12
Open Pin Field
6
Vertical
2.00mm
No
None
2.50mm
Tube
2.00mm
2.00mm
0.762µm
2.540µm
Yes
Yes
-55°C to +105°C
Through Hole
1.0A
1.0 Gbps
Series image - Reference only
EU ELV
Not Reviewed
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Reviewed
Not Reviewed
Not Reviewed
Search Parts in this Series
73942 Series
Mates With
73632 HDM+ Board-to-Board Daughtercard
Receptacle. 73780 HDM Board-to-Board
Daughtercard Receptacle
