1614481 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1614481

Preview

1614481: DescriptionCircular Metric Connectors RC-17S1N124Z00; CategoryThe connector; File Size60KB，2 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

1614481 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1614481	-	-	View	Buy Now

1614481 Overview

Circular Metric Connectors RC-17S1N124Z00

1614481 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Circular Metric Connectors
Shipping Restrictions	Mouser does not presently sell this product in your region.
Factory Pack Quantity	1
Unit Weight	1.292015 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1614481

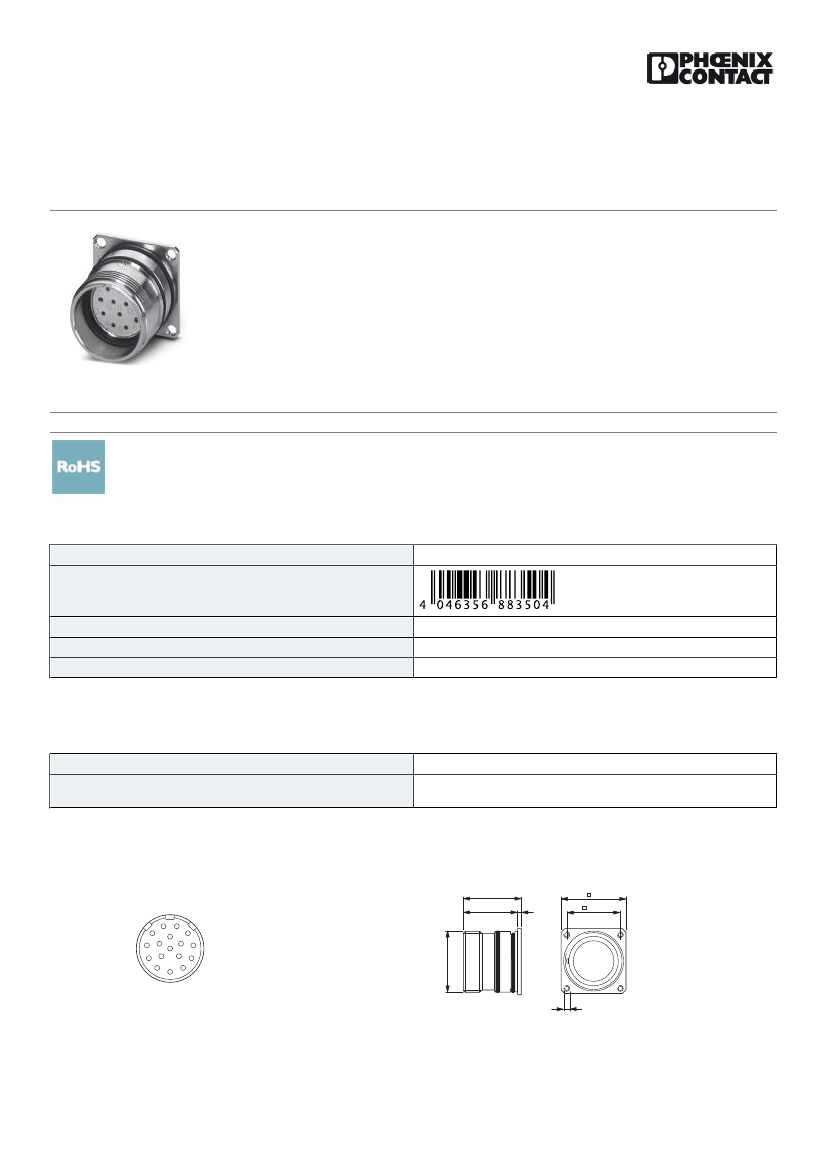

Device connector, rear mounting - RC-17S1N124Z00 - 1614481

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Device connector for rear wall, straight, shielded: yes, Screw locking, M23, Number of positions: 17, Type of

contact: Socket, Solder connection, Radial O-ring, 4x M2.5, Panel thickness min.: 2.7 mm, Panel thickness

max.: 3.5 mm

The figure shows the 12-pos.

product version

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4046356883504

85366990

Made to Order (non-returnable)

40 STK

Technical data

Environmental Product Compliance

China RoHS

Environmentally Friendly Use Period = 50

For details about hazardous substances go to tab “Downloads”,

Category “Manufacturer's declaration”

Drawings

Schematic diagram

N

Y

2

3

1

12

13

11

Dimensional drawing

(22,3)

20,8

1,5

25

20,5

X

16 10

9

14 17 15

4

8

7

5

6

M23

4xM2,5

Ø2,7

11/14/2016 Page 1 / 2
