855-22-032-30-001101 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 855-22-032-30-001101

Preview

855-22-032-30-001101: DescriptionHeaders & Wire Housings STD SPRING-LOADED CONNECTOR; CategoryThe connector The connector; File Size540KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

855-22-032-30-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	855-22-032-30-001101	-	-	View	Buy Now

855-22-032-30-001101 Overview

Headers & Wire Housings STD SPRING-LOADED CONNECTOR

855-22-032-30-001101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Objectid	1038466608
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	58257373
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	32
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

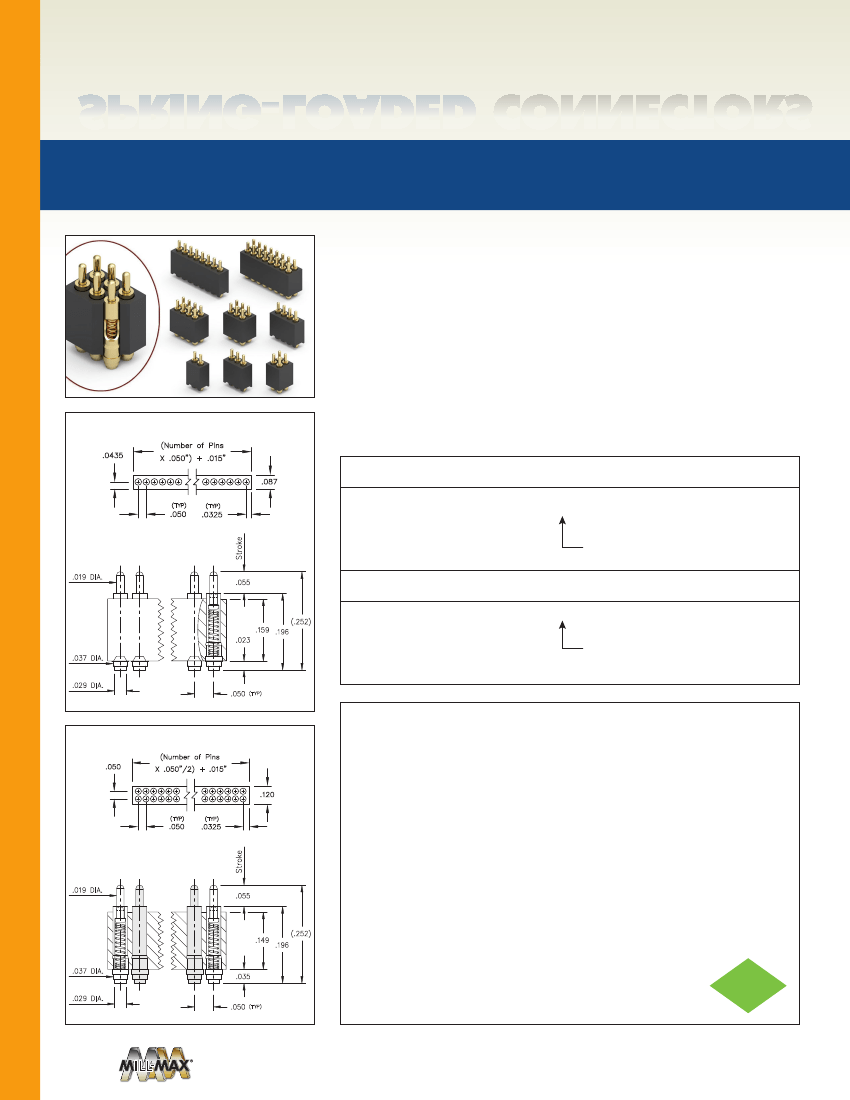

SPRING-LOADED

CONNECTORS

SERIES 854 & 855 • .050” GRID SURFACE MOUNT, HIGH DENSITY •

SINGLE AND DOUBLE ROW STRIPS

•

Modular contacts for use on .050” grid, supplied in single and double row contact strips

•

Precision-machined piston / base and gold-plated components assure up to 100,000

cycle life durability

•

Pistons have a .0275” mid. stroke and a .055” max. stroke

•

Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

•

High temperature thermoplastic insulators are suitable for surface mount processes

•

854 & 855 series contact strips are designed for manual placement onto .040” Ø

solder pads

•

855 series is also available on tape & reel packaging, see page 19.1

SINGLE ROW Series 854

ORDERING INFORMATION

Single Row Series 854

854-22-0XX-30-001101

Specify number of contacts

02-20

Double Row Series 855

855-22-0XX-30-001101

Specify number of contacts

04-40

For 855 Tape & Reel packaging, see page 19.1

DOUBLE ROW Series 855

PAGE 19 | SPRING-LOADED CONNECTORS

Materials:

Contact piston & base: Machined copper alloy plated 20μ” gold over

100μ” nickel

Spring: Beryllium copper-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (.0275”): 60 grams

Durability: Up to 100,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Technical Specifications

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

855-22-032-30-001101 Related Products

	855-22-032-30-001101	854-22-015-30-001101	854-22-017-30-001101	854-22-019-30-001101	855-22-034-30-001101	854-22-011-30-001101
Description	Headers & Wire Housings STD SPRING-LOADED CONNECTOR	Headers & Wire Housings STD SPRING-LOADED CONNECTOR	Headers & Wire Housings STD SPRING-LOADED CONNECTOR	Headers & Wire Housings STD SPRING-LOADED CONNECTOR	Headers & Wire Housings STD SPRING-LOADED CONNECTOR	Headers & Wire Housings STD SPRING-LOADED CONNECTOR
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max
package instruction	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)	GOLD (20) OVER NICKEL (100)	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	1	1	1	2	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	32	15	17	19	34	11
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-
