52885-2074

Description
Board to Board & Mezzanine Connectors 0.635 B/B REC HSG ASSY
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52885-2074 Online Shopping

Suppliers Part Number Price MOQ In stock
52885-2074 - - View Buy Now

52885-2074 Overview

Board to Board & Mezzanine Connectors 0.635 B/B REC HSG ASSY

52885-2074 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsPEG
body width0.252 inch
subject depth0.157 inch
body length2.81 inch
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance40 mΩ
DIN complianceNO
Filter functionNO
IEC complianceNO
maximum insertion force.1112 N
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.025 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.2098 mm
Plating thickness9.8u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts200
UL Flammability Code94V-0
Evacuation force-minimum value.1112 N
Base Number Matches1

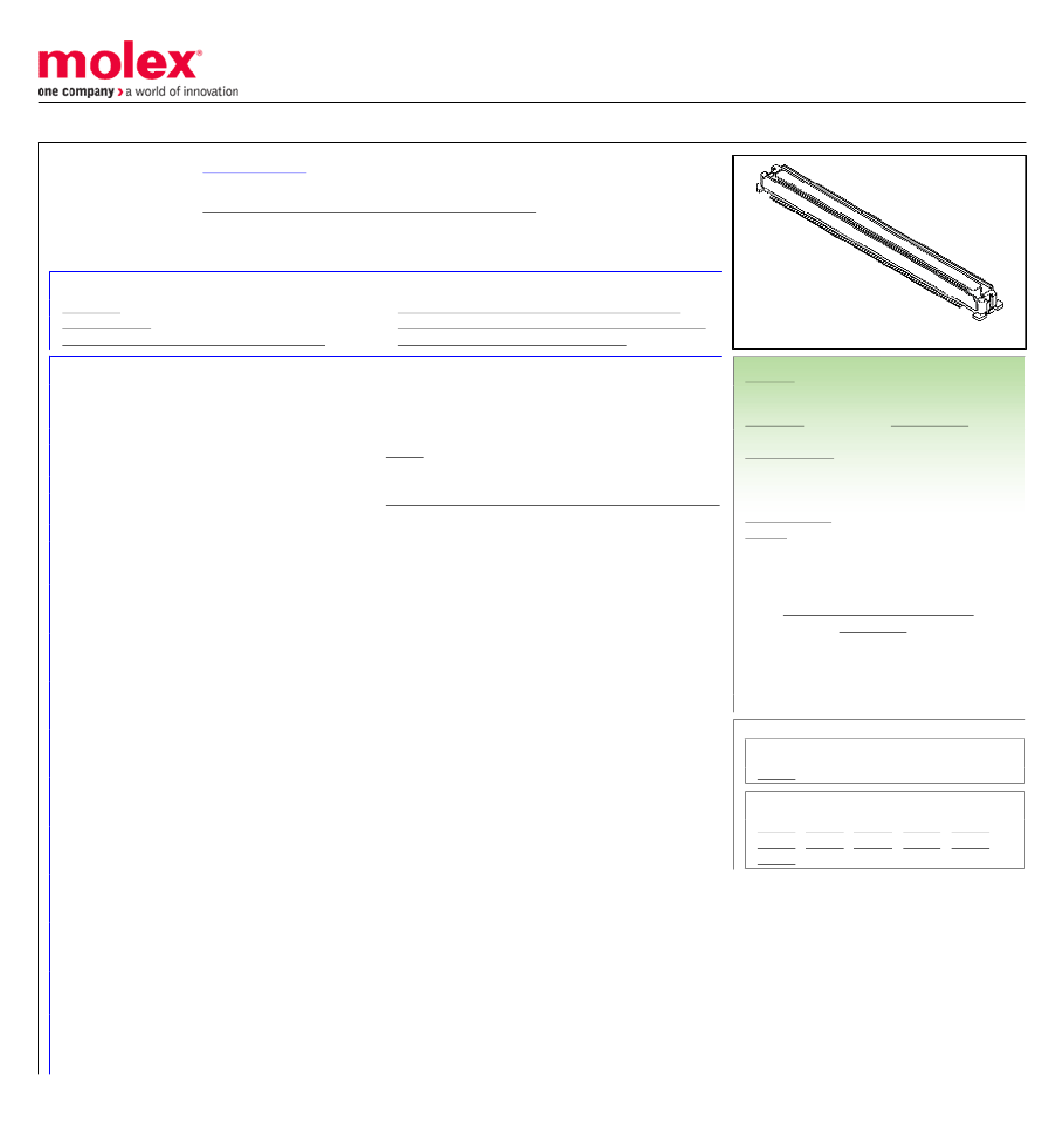

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0528852074
Active
SlimStack™ 0.635mm Pitch Board-to-Board Connectors
0.635mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical Stacking,
6.00 to 10.00mm Stacking Heights, Embossed Tape with Cover Packaging, 200
Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification 527600000-000 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Capable
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Robotic Placement
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Product Specification PS-52760-015-001 (PDF)
Packaging Specification SPK-52885-003-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
E29179
PCB Receptacles
52885
Board-to-Board, Signal
Stacking-Type
SlimStack™ 0.635mm Pitch Board-to-Board Connectors
SlimStack
884982494251
200
200
Natural
50
94V-0
No
10.00mm, 5.00mm, 6.00mm, 7.00mm, 8.00mm, 9.00mm
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
2182.541/mg
2
Vertical
Yes
Yes
1.60mm
Embossed Tape on Reel
0.64mm
0.254µm
2.032µm
Yes
Pick and Place Cap
N/A
-55°C to +105°C
Surface Mount
0.5A
100V
Search Parts in this Series
52885 Series
Mates With
55091 , 53649 , 53643 , 53475 , 53627 ,
53553 , 53552 , 53647 , 53551 , 53481 ,
53625
