74162-1112: DescriptionHeaders & Wire Housings CGrid RA Shrd Hdr VerB Tin 12Ckt; CategoryThe connector The connector; File Size1MB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

74162-1112 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74162-1112	-	-	View	Buy Now

74162-1112 Overview

Headers & Wire Housings CGrid RA Shrd Hdr VerB Tin 12Ckt

74162-1112 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.42 inch
subject depth	0.639 inch
body length	0.712 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	150u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.2 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

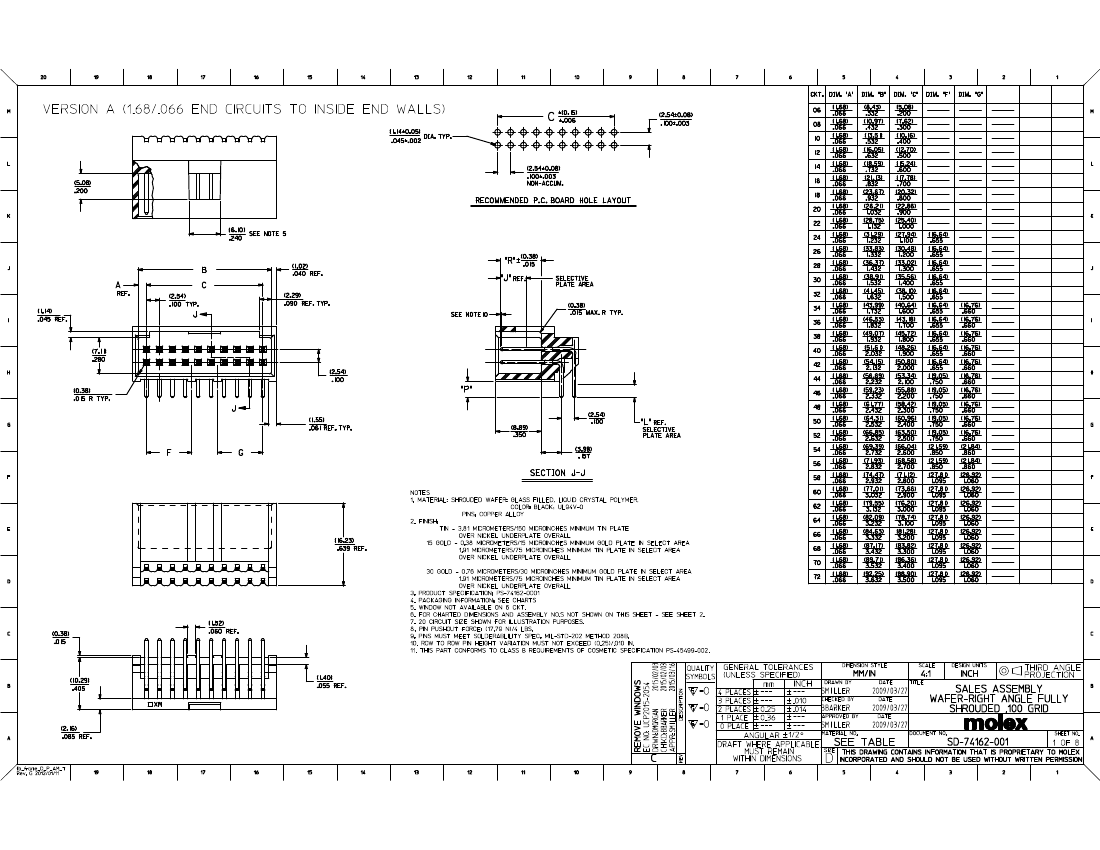

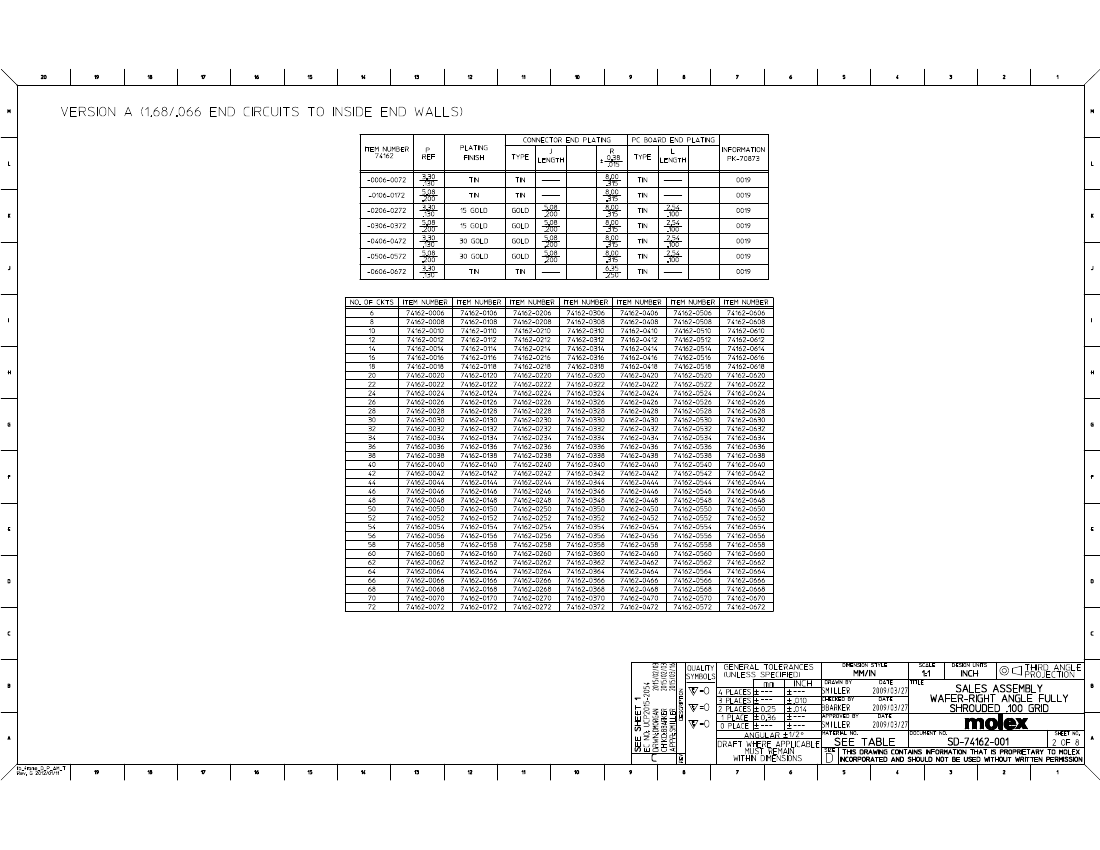

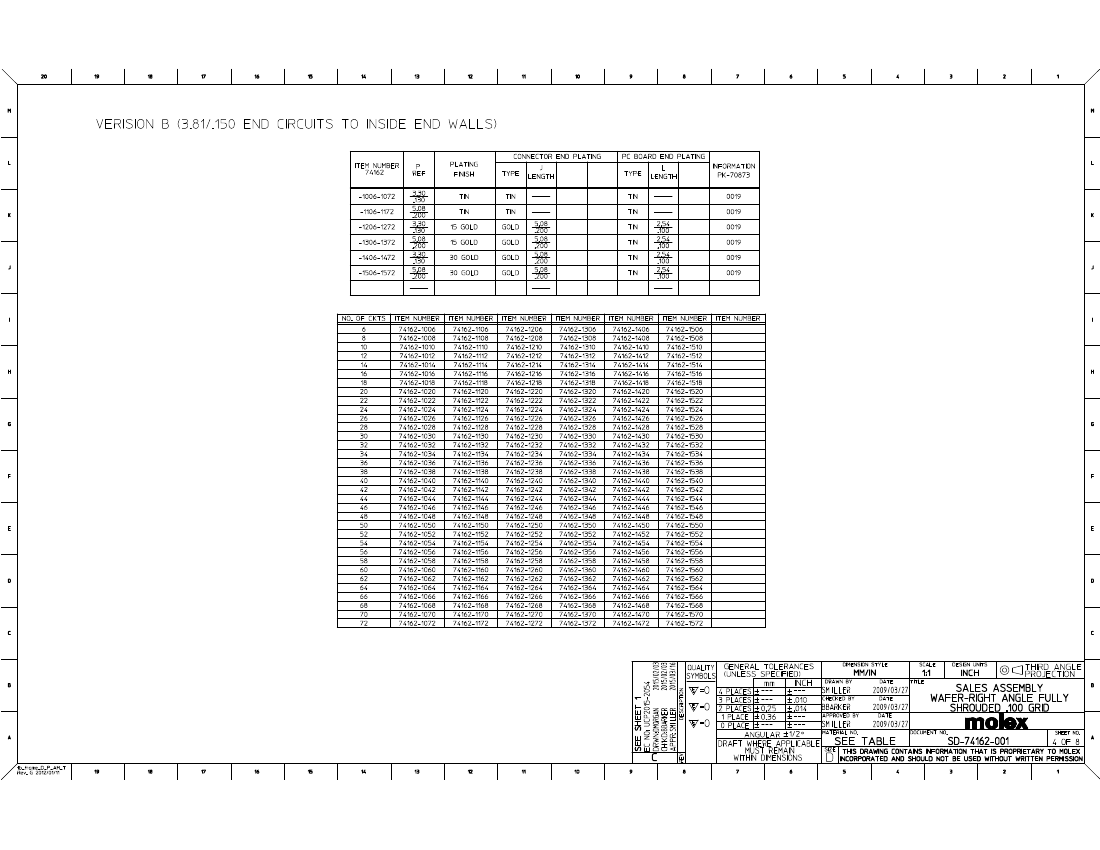

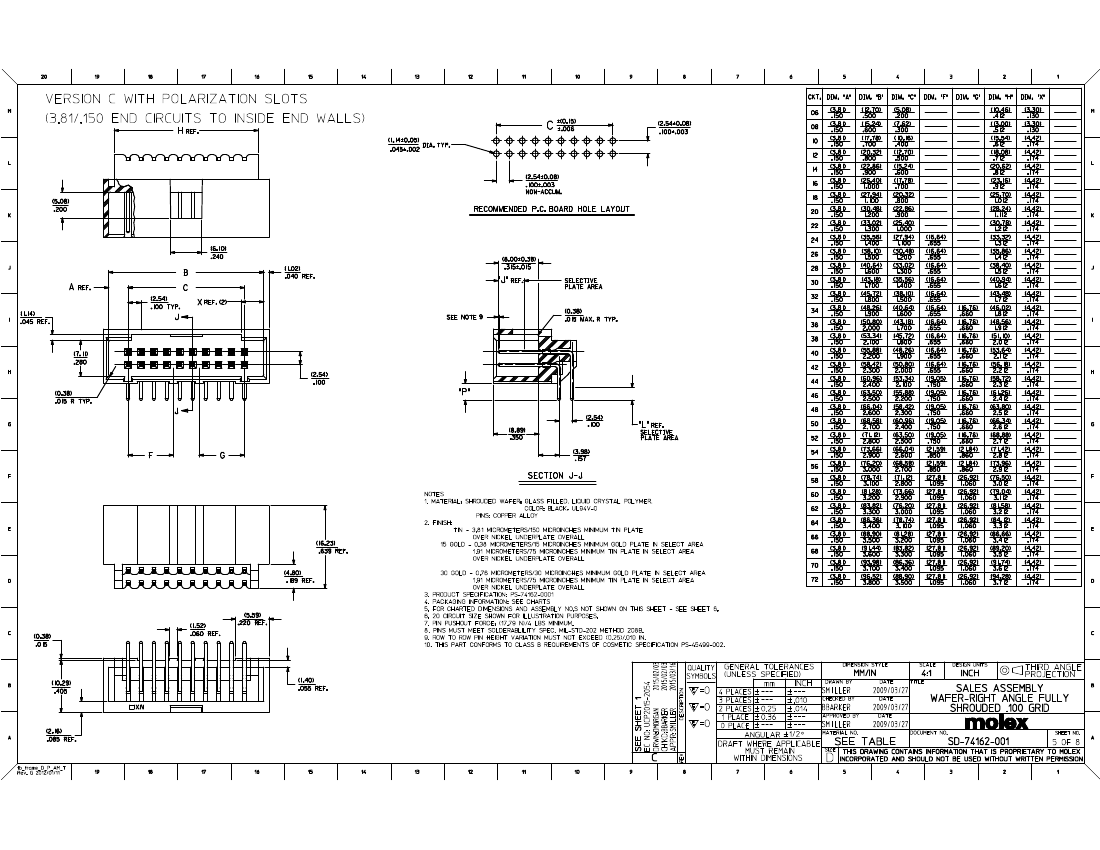

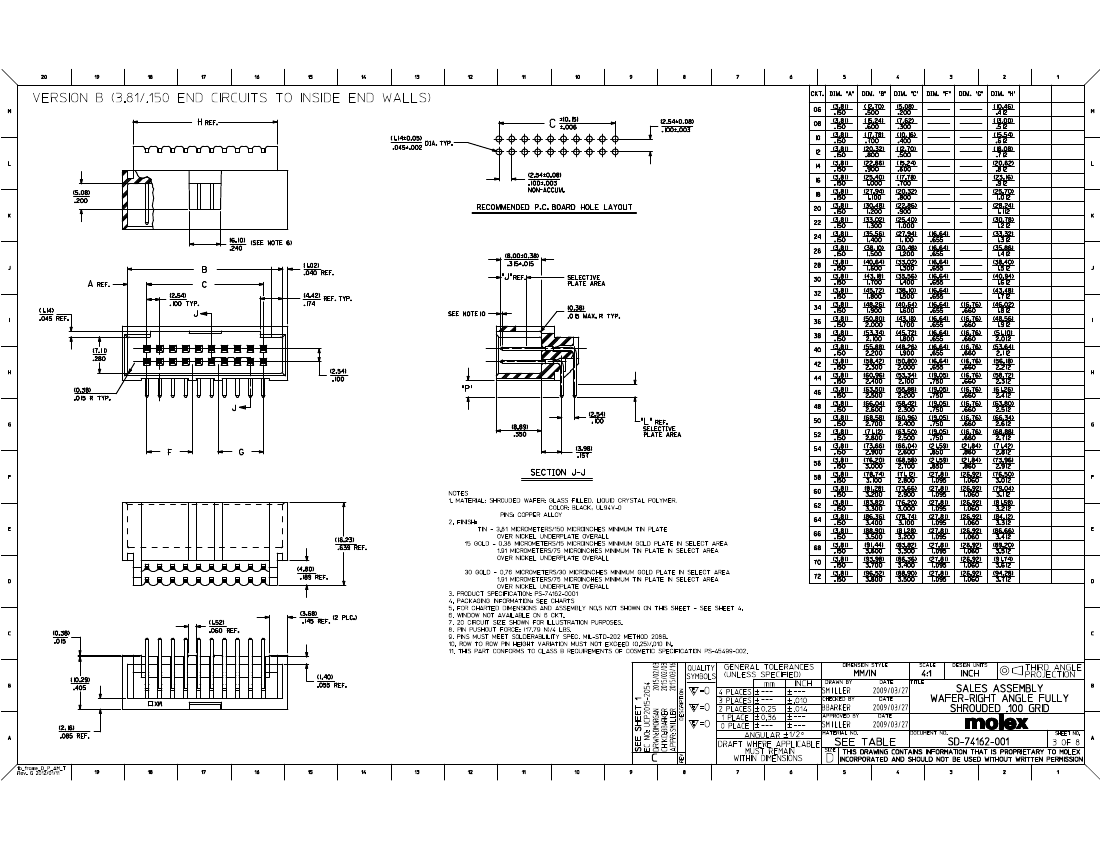

Preview

Download Datasheet

View All

74162-1112 Related Products

	74162-1112	74162-1518	74162-1508	74162-1568	74162-1108	74162-1532	74162-2010
Description	Headers & Wire Housings CGrid RA Shrd Hdr VerB Tin 12Ckt	Headers & Wire Housings CGrid RA Shrd Hdr VerB 30SAu 18Ckt	Headers & Wire Housings CGrid RA Shrd Hdr VerB 30SAu 8Ckt	Headers & Wire Housings CGrid RA Shrd Hdr VerB 30SAu 68Ckt	Headers & Wire Housings CGrid RA Shrd Hdr VerB Tin 8Ckt	Headers & Wire Housings CGrid Shrd Hdr RA 30Au 32Ckt	Headers & Wire Housings CGrid RA Shrd Hdr VerC Tin 10Ckt
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.42 inch	0.42 inch	0.42 inch	0.42 inch	0.42 inch	0.42 inch	0.42 inch
subject depth	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch
body length	0.712 inch	1.012 inch	0.512 inch	3.512 inch	0.512 inch	1.712 inch	0.612 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	AU ON NI	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	TIN OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V
Durability	25 Cycles	50 Cycles	50 Cycles	50 Cycles	25 Cycles	50 Cycles	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	150u inch	30u inch	30u inch	30u inch	150u inch	30u inch	150u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	18	8	68	8	32	10
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex
