39504-5003: DescriptionPluggable Terminal Blocks 3.5MM EURO PLUG RA G PLUG RA GRN ME 3CKT; CategoryThe connector; File Size29KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39504-5003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39504-5003	-	-	View	Buy Now

39504-5003 Overview

Pluggable Terminal Blocks 3.5MM EURO PLUG RA G PLUG RA GRN ME 3CKT

39504-5003 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Details
Product	Plugs
Number of Positions	3 Position
Pitch	3.5 mm
Current Rating	8 A
Voltage Rating	300 V
Wire Gauge Range	30 AWG to 16 AWG
Mounting Angle	Horizontal
Factory Pack Quantity	640
Wire Gauge Max	16 AWG
Wire Gauge Min	30 AWG

Preview

Download Datasheet

View All

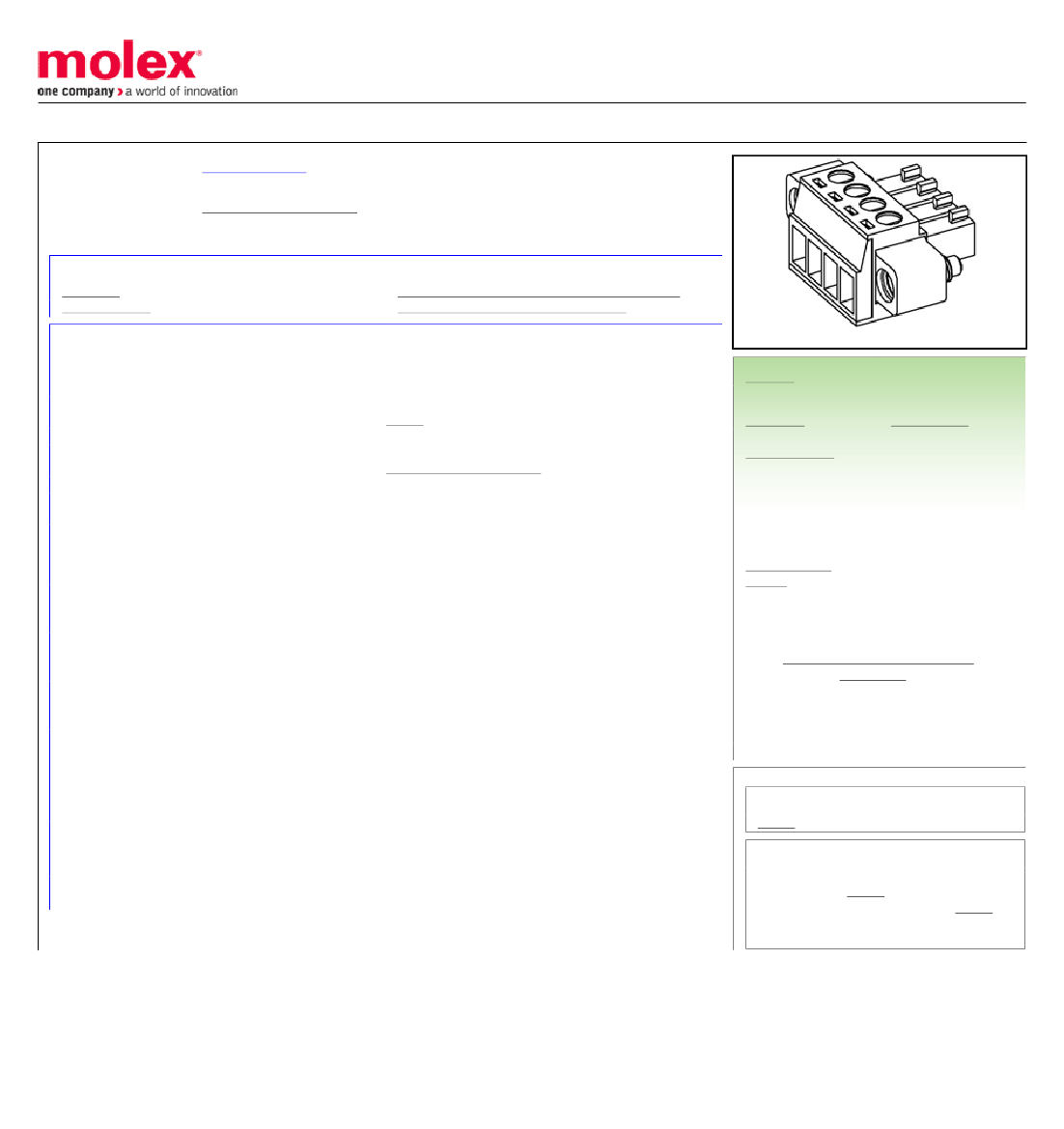

This document was generated on 05/21/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0395045003

Active

Eurostyle Terminal Blocks

3.50mm Pitch Eurostyle Horizontal Plug, with Retention Screws, Green Housing, 3

Circuits

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-39500-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E48521

Terminal Blocks

39504

N/A

Plug

Eurostyle Terminal Blocks

ESE, Eurostyle Pluggable

Euro Block

822350442787

Vertical

Yes

Horizontal

3.50mm

Yes

-40°C to +105°C

16, 18, 20, 22, 24, 26, 28, 30

0.05-1.31

8.0A

300V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Contained Per -

ED/01/2018 (15

January 2018)

2,4-Di-tert-butyl-6-(5-

chlorobenzotriazol-2-

yl)p

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

39504 Series

Mates With

Most 3.50mm Pitch Industry Standard

PCB Headers, 39505 Vertical PCB Header

with Threaded Retention Inserts, 39506

Horizontal PCB Header with Threaded

Retention Inserts

PS-39500-001-001

SD-39504-001

This document was generated on 05/21/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
