503552-1020

Description
Board to Board & Mezzanine Connectors 0.4 B/B HRF 10CKT PLUG O/M PKG
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

503552-1020 Online Shopping

Suppliers Part Number Price MOQ In stock
503552-1020 - - View Buy Now

503552-1020 Overview

Board to Board & Mezzanine Connectors 0.4 B/B HRF 10CKT PLUG O/M PKG

503552-1020 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsFITTING NAIL
body width0.066 inch
subject depth0.023 inch
body length0.136 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance80 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage350VDC V
Durability30 Cycles
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number503552
Plug contact pitch0.016 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts10
Base Number Matches1

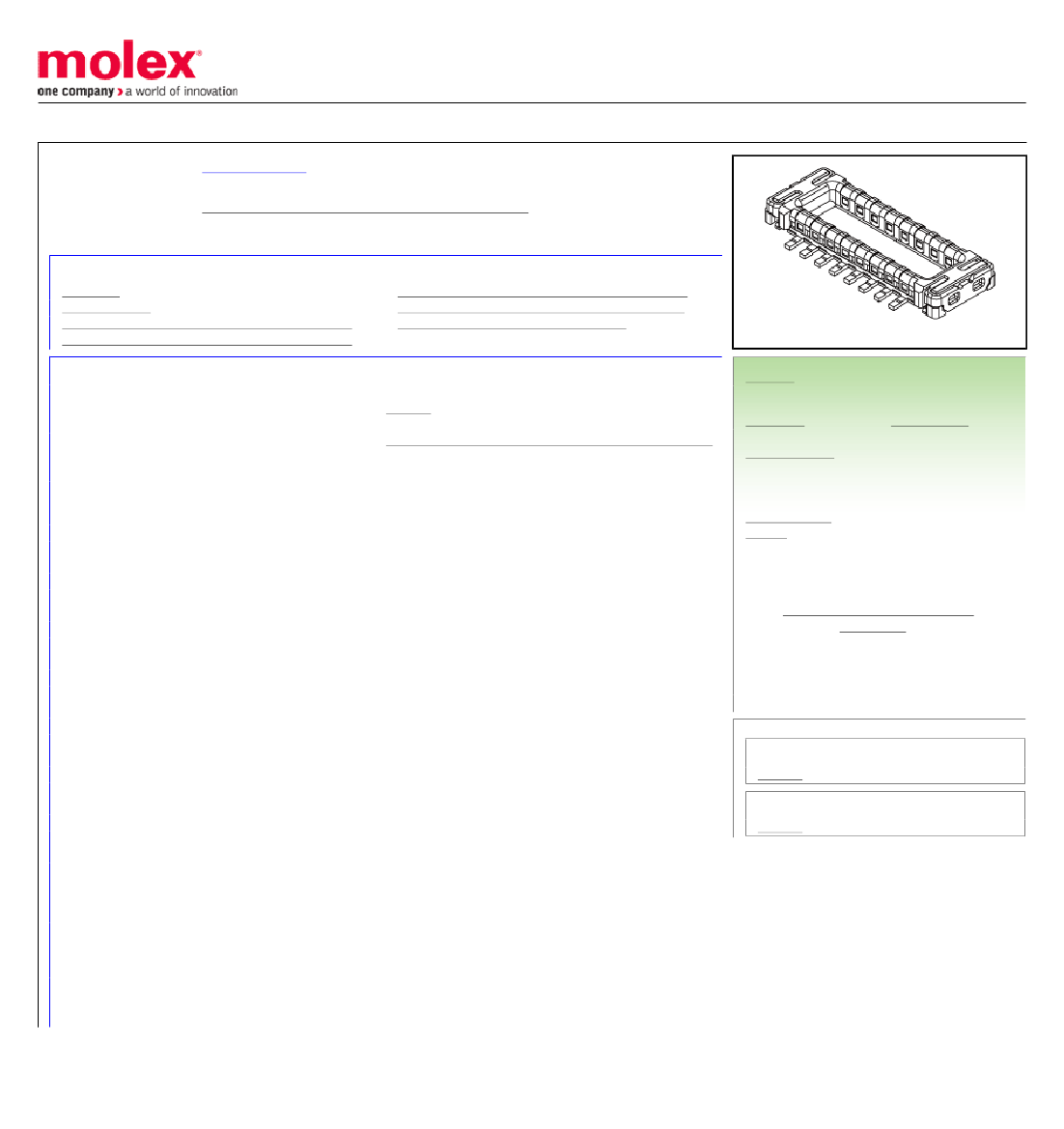

This document was generated on 02/27/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5035521020
Active
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm SlimStack Board-to-Board, Plug, Surface Mount, Dual Row, Vertical Stacking,
0.70mm Stacking Height, Hi-Retention Type, 10 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-503548-001-001 (PDF)
Product Specification PS-503548-002-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Capable
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Product Specification PS-503552-001-001 (PDF)
Packaging Specification 5035529200-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
PCB Headers
503552
Board-to-Board, Signal
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack
887191357263
No
10
10
Black
30
No
0.70mm
Copper Alloy
Gold
Gold
6.110/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
No
No
-40°C to +85°C
Surface Mount
0.3A
50V AC (RMS)/DC
Search Parts in this Series
503552 Series
Mates With
503548 SlimStack PCB Receptacle
5035529200-200
PS-503548-001-001, PS-503548-002-001,
PS-503552-001-001
This document was generated on 02/27/2018
