MIL-DTL-83513
Micro-D
507-088
EMI/RFI Composite Micro-D Banding Backshell

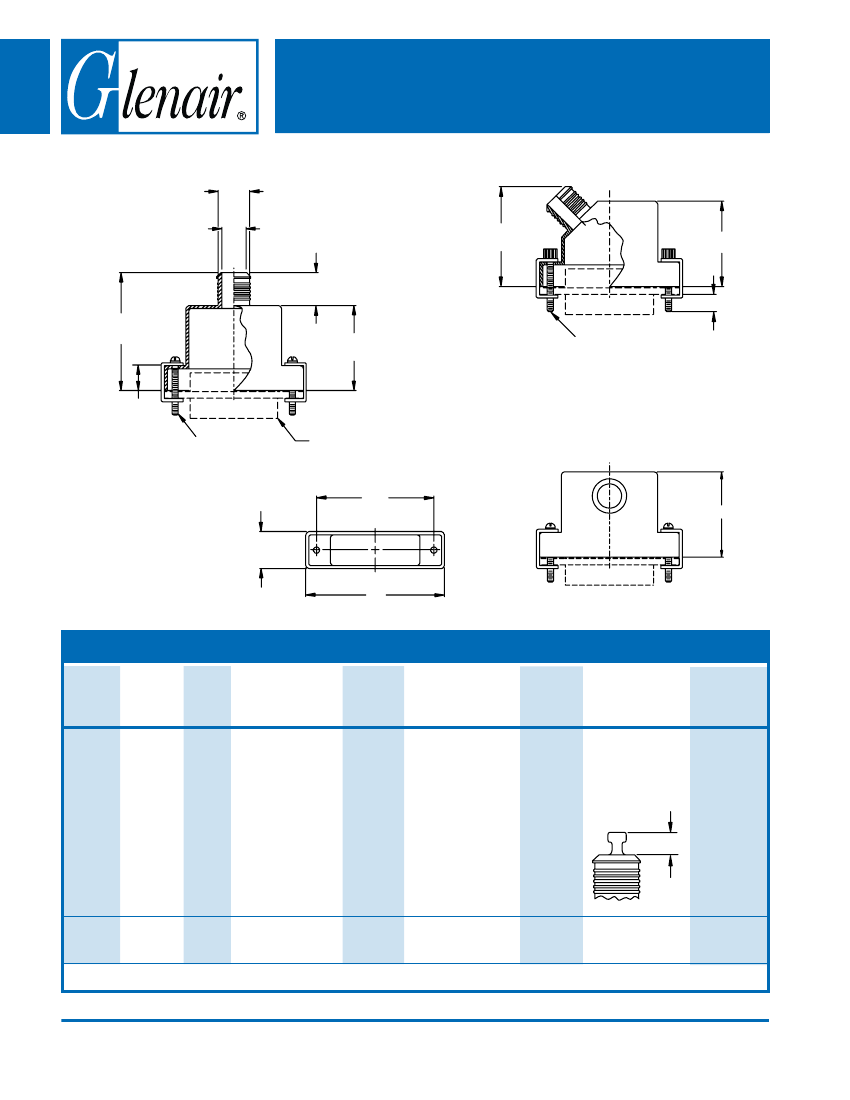

sTYLE T - ToP ENTRY
N Typ.
M Typ.
L
.32 (8.1)
K Typ.
(Table I)
sTYLE E - 45° ENTRY
G
H
D
Jackscrew
Male Hex Socket
Hardware Option H
J Thread Typ.
.175
(4.4)
Jackscrew
Male Fillister Head
Hardware Option B
J Thread Typ.
Connector Shown For
Reference Only
C
sTYLE s - sIDE ENTRY
G
B
A
HoW To oRDER
Cable
Entry
style
T
– Top
s
– Side
E
– 45°
Basic
Part
No.
shell
Plating
shell
size
(Table I)
9
15
21
25
31
37
51
100
Hardware
options *
B
– (2) male
fillister head
E
– (2) extended
jackscrew
H
– (2) male hex
socket
F
– (2) female
jackpost
Cable
Entry
(Table II)
04
05
06
07
08
09
10
11
12
Qwik-Ty
option
s
(Omit for
Standard)
Band
option
B
series
507
088 XM
– Electroless
Nickel
(SeeOpposite
Page)
600-057
Band
Supplied -
(Omit if Not
.32 (8.1) Requred)
Sample Part Number:
507
T
088
XM
21
B
06
s
B
* sEE PAGE C-4 FoR CoMPLETE INFoRMATIoN
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-22
507-088
EMI/RFI Composite Micro-D Banding Backshell
Composite shielded backshells offer over 40%
weight savings compared to aluminum versions.
Available in a full range of sizes and options, com-
posite backshells are designed for use with Glenair’s
EMI banding system for shield termination.
These composite backshells meet the requirements
of SAE AIR 4567 and MIL-DTL-85049.
Material:
High Grade Engineering Thermoplastic
Finish:
Electroless Nickel
TABLE I: DIMENsIoNs
sHELL
sIzE
09
15
21
25
31
37
51
100
sHELL
sIzE
09
15
21
25
31
37
51
100
A
.775 (19.7)
.925 (23.5)
1.075 (27.3)
1.175 (29.8)
1.325 (33.7)
1.475 (37.5)
1.425 (36.2)
2.160 (54.9)
H
REF
.154 (3.9)
.154 (3.9)
.154 (3.9)
.154 (3.9)
.154 (3.9)
.154 (3.9)
.154 (3.9)
.184 (4.7)
B
C
.565 (14.4)
.715 (18.2)
.865 (22.0)
.965 (24.5)
1.115 (28.3)
1.265 (32.1)
1.215 (30.9)
1.800 (45.7)
±.03
.75
.76
.88
.94
1.00
1.04
1.07
1.13
k
(0.8)
(19.1)
(19.3)
(22.4)
(23.9)
(25.4)
(26.4)
(27.2)
(28.7)
D
(10.9)
(11.2)
(14.2)
(15.7)
(17.3)
(18.3)
(19.1)
(20.6)
G
.650 (16.5)
.700 (17.8)
.735 (18.7)
.800 (20.3)
.860 (21.8)
.925 (23.5)
.975 (24.8)
1.050 (26.7)
.36
.36
.36
.36
.36
.36
.40
.45
(9.1)
(9.1)
(9.1)
(9.1)
(9.1)
(9.1)
(10.2)
(11.4)
.43
.44
.56
.62
.68
.72
.75
.81
J THREAD
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
4-40 UNC-2
L
MAX
1.00 (25.4)
1.03 (26.2)
1.05 (26.7)
1.09 (27.7)
1.13 (28.7)
1.16 (29.5)
1.25 (31.8)
1.32 (33.5)
TABLE II: CABLE ENTRY
Cable
Entry
04
05
06
07
08
09
10
11
12
shell size
09 THRU 100
09 THRU 100
09 THRU 100
09 THRU 100
09 THRU 100
31 THRU 100
51 THRU 100
100 ONLY
100 ONLY
M Entry
Dia
.125 (3.2)
.156 (4.0)
.188 (4.8)
.219 (5.6)
.250 (6.4)
.281 (7.1)
.312 (7.9)
.344 (8.7)
.375 (9.5)
N
Dia
.219 (5.6)
.250 (6.4)
.281 (7.1)
.313 (8.0)
.344 (8.7)
.375 (9.5)
.406 (10.3)
.438 (11.1)
.469 (11.9)
Metric dimensions
(mm) are indicated in
parentheses.
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-23
