1595711 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1595711

1595711: DescriptionCircular Metric Connectors RC-09P2N12K0X7; CategoryThe connector; File Size55KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

1595711 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1595711	-	-	View	Buy Now

1595711 Overview

Circular Metric Connectors RC-09P2N12K0X7

1595711 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Circular Metric Connectors
Shipping Restrictions	Mouser does not presently sell this product in your region.
Factory Pack Quantity	1
Unit Weight	0.811301 oz

Preview

Download Datasheet

View All

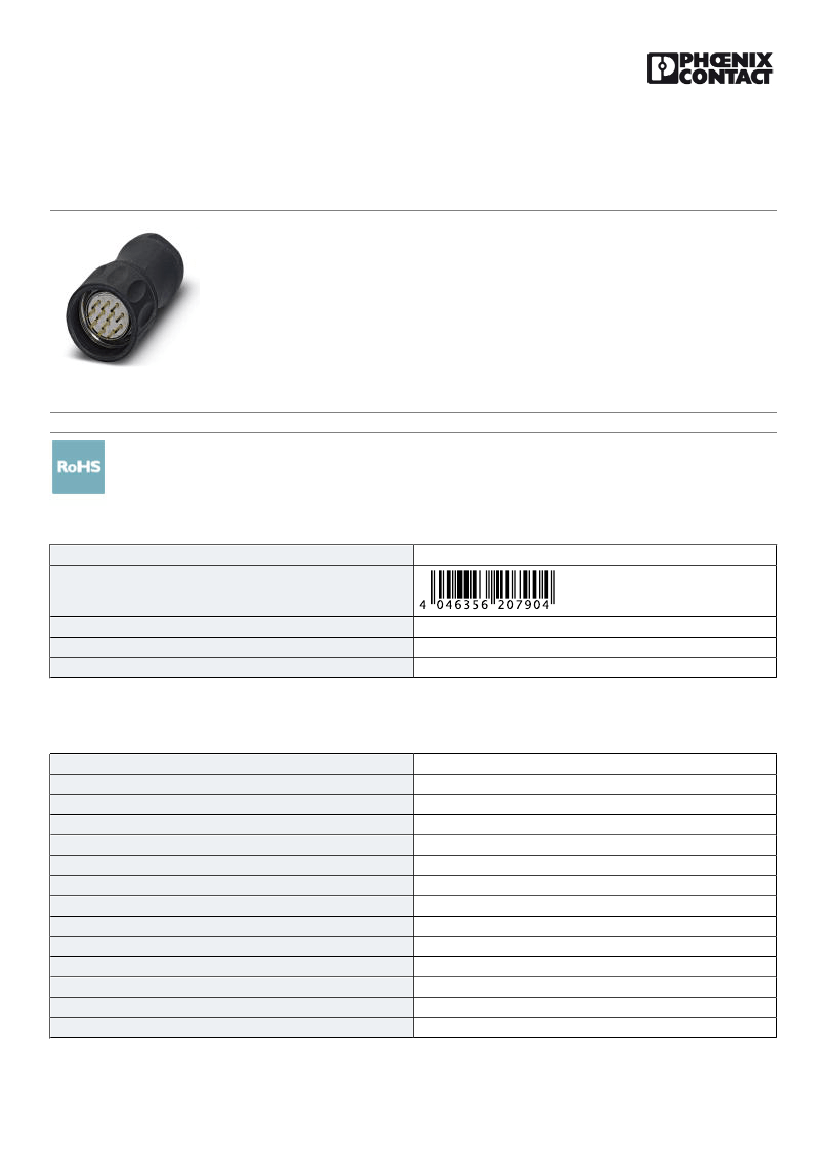

https://www.phoenixcontact.com/hq/products/1595711

Cable connector - RC-09P2N12K0X7 - 1595711

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Cable connector, straight plastic-sheathed, shielded: yes, Screw locking, M23, Number of positions: 8+1,

Type of contact: Male connector, Solder connection, Cable diameter: 4.5 mm ... 5.5 mm

The figure shows the 12-pos.

product version

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4046356207904

85366990

Made to Order (non-returnable)

20 STK

Technical data

Data of the insulating body

Coding

Insertion/withdrawal cycles mechanical

Contact connection method

Type of contacts

Number of positions

Contact diameter of power contacts

Litz wire cross section of power contacts min.

Litz wire cross section of power contacts max.

Nominal current per power contact at 25°C

Nominal voltage, power contact

Rated surge voltage

Contact diameter of signal contacts

Litz wire cross section of signal contacts min.

Litz wire cross section of signal contacts max.

Solder connection

Male connector

2 mm

0.08 mm²

2.5 mm²

20 A

300 V

2.5 kV

1 mm

0.08 mm²

1 mm²

11/14/2016 Page 1 / 3
