301-10011 Overview

Ceramic BPF,

301-10011 Parametric

Parameter NameAttribute value
MakerSmiths Group
Reach Compliance Codeunknown
Is SamacsysN
filter typeCERAMIC BPF
Base Number Matches1

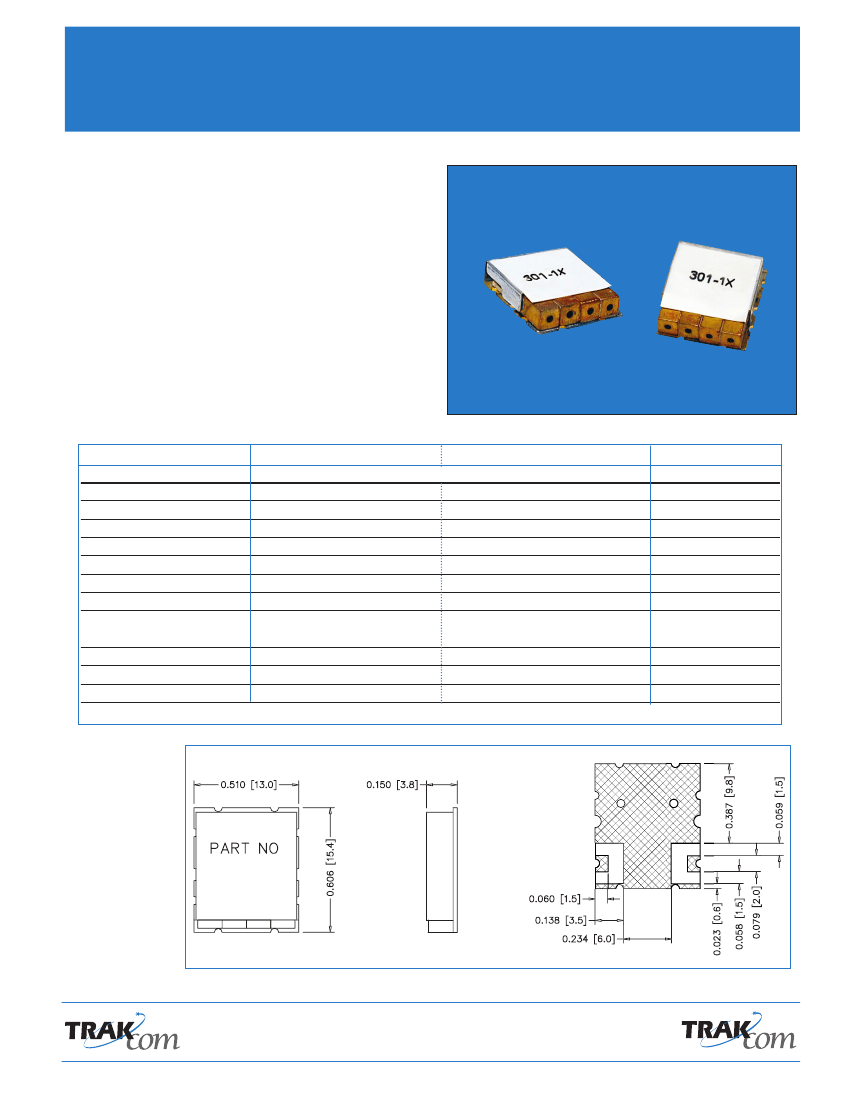

Model: 301-1x Series
Application - WIRELESS
w
Base Station
w
Transmitter/Receiver
w
CDMA
w
Low Cost
w
High Reliability
w
Low Profile
w
Surface Mount
w
Tape and Reel Available
w
High Isolation
Filter - Bandpass
Ceramic
Benefits
Features
Specifications
Model
301-10010
301-10011
Parameter
Specification
Center Frequency
836.5
881.5
Center Frequency Range
N/A
N/A
Poles
4
4
Bandwidth @ 3 dB
30
30
Percentage Bandwidth
N/A
N/A
Insertion Loss
3
3
Return Loss
10.9
10.9
Attenuation
15 @ fo +/- 32.5 MHz
15 @ fo +/- 32.5 MHz
35 @ fo +/- 60.5 MHz
35 @ fo +/- 60.5 MHz
Impedance
50
50
Power Handling
3
3
Operating Temperature
-35 to +85
-35 to +85
Dimension (LxWxH)
13 x 15.4 x 3.8
13 x 15.4 x 3.8
Unit
MHz
MHz
-
MHz
%
dB Max
dB Min
dB Min
Ohm
W Max
o
C
mm
Drawing

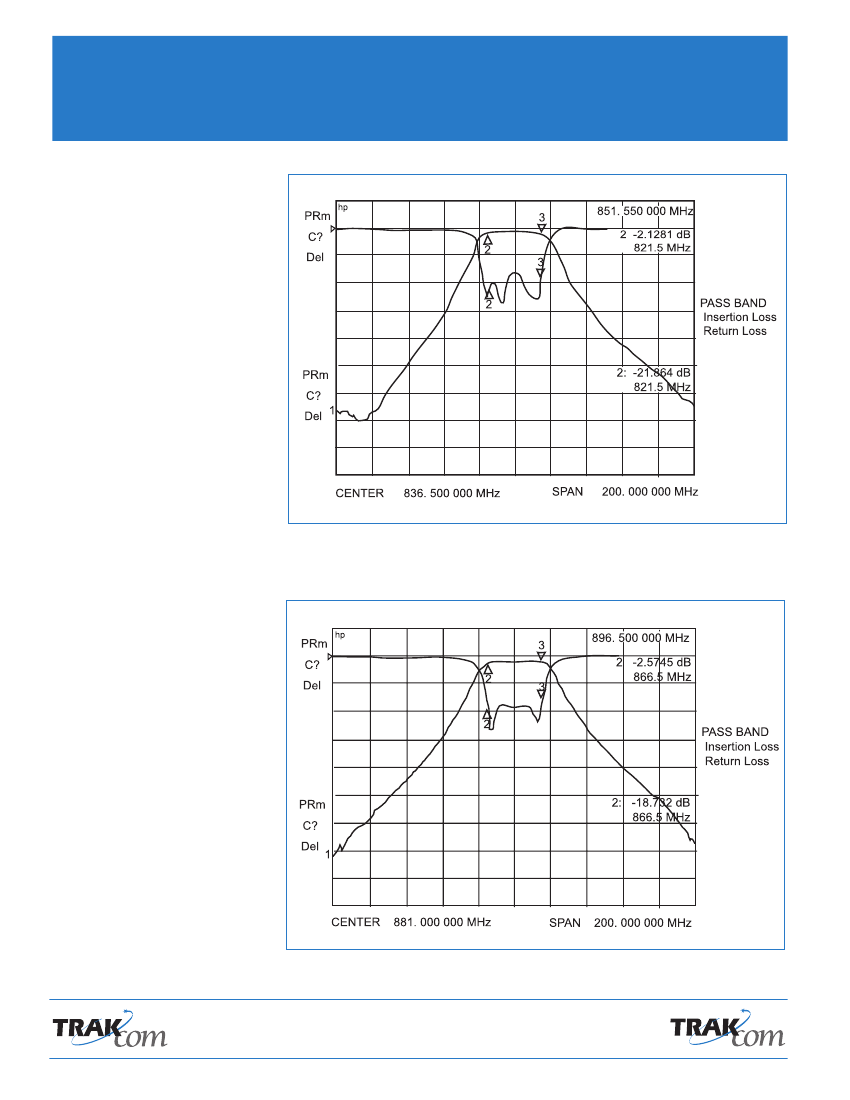

Cont’d on Back
TRAK Microwave Corporation
4726 Eisenhower Blvd., Tampa, Florida 33634-6391
Phone: 813-901-7200
w
Fax: 813-901-7492
E-mail: tmc@trak.com
w
www.trak.com
z1999
TRAK Communications, Inc. Doc #FL140ds899
Specifications subject to change without notice
